Heater Inlet Hose Replacement (L84, L87)

Removal Procedure

1. Drain the cooling system. Cooling System Draining and Filling

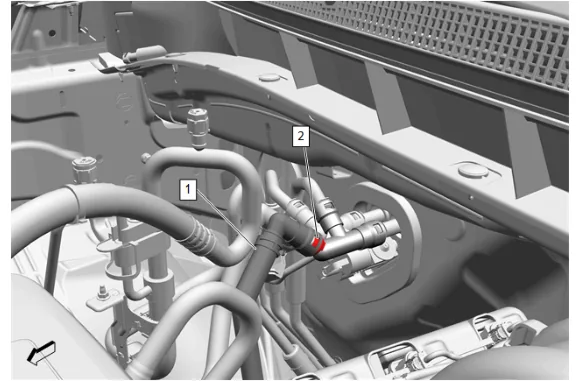

Heater Inlet Hose Replacement (L84, L87) — figure 1

2. Heater Inlet Hose Retainer (2) » Disengage
3. Heater Inlet Hose (1) @ Auxiliary Heater Inlet and Outlet Hose » Remove

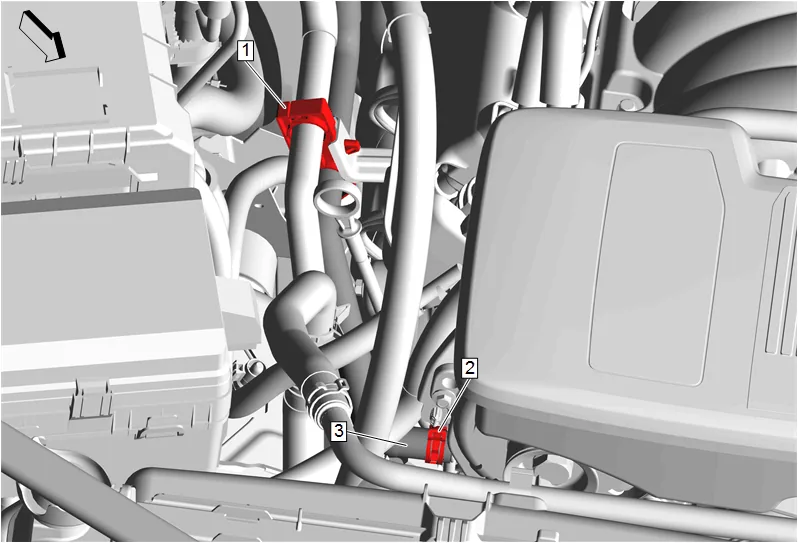

Heater Inlet Hose Replacement (L84, L87) — figure 2

4. Heater Inlet Hose (3) @ Heater Inlet and Outlet Hose Clip (1) » Remove

5. Heater Inlet Hose Clamp (2) » Disengage — Hose Clamp Replacement Guidelines - Spring Type

6. Heater Inlet Hose (3) @ Water Pump » Remove Installation Procedure

7. Heater Inlet Hose (3) @ Water Pump » Install

8. Heater Inlet Hose Clamp (2) » Engage — Hose Clamp Replacement Guidelines - Spring Type

9. Heater Inlet Hose (3) @ Heater Inlet and Outlet Hose Clip (1) » Install

10. Heater Outlet Hose (1) @ Auxiliary Heater Inlet and Outlet Hose » Install

11. Heater Outlet Hose Retainer (2) » Engage

12. Fill the cooling system to the proper level. Cooling System Draining and Filling

13. Start the engine and check for coolant leaks.
