Tahoe / Yukon Service Manual

Camshaft Position Sensor Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5549636 Single Use Fasteners and Components Camshaft Position Sensor Seal

  1. Disconnect the battery ground cable from the battery. Battery Negative Cable Disconnection and Connection.

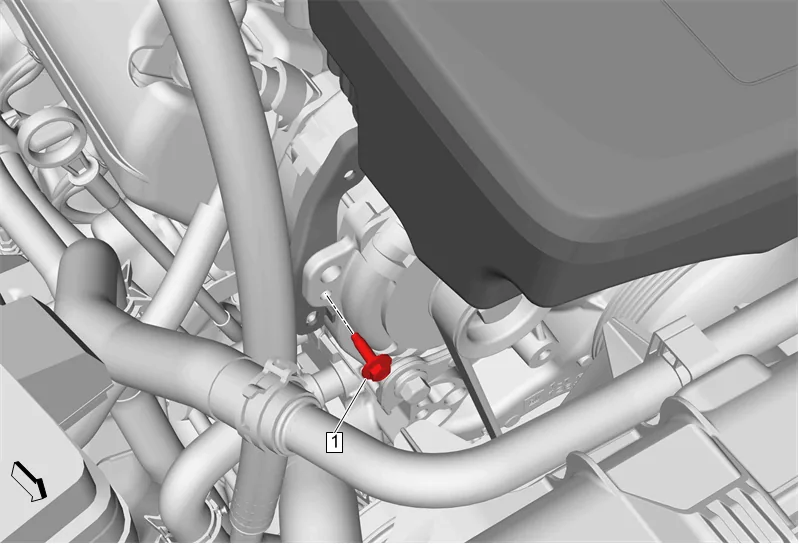

Camshaft Position Sensor Replacement — figure 1
Camshaft Position Sensor Replacement — figure 1
  1. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
  2. Remove engine wiring harness from air cleaner outlet duct bracket.

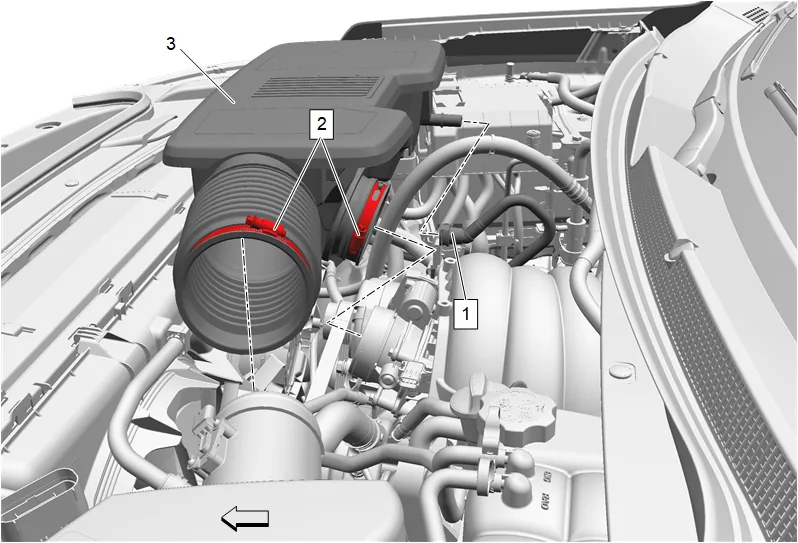

Camshaft Position Sensor Replacement — figure 2
Camshaft Position Sensor Replacement — figure 2
  1. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
  2. Air Cleaner Outlet Duct Clamp (2) » Remove [2x]
  3. Air Cleaner Outlet Duct (3) » Remove

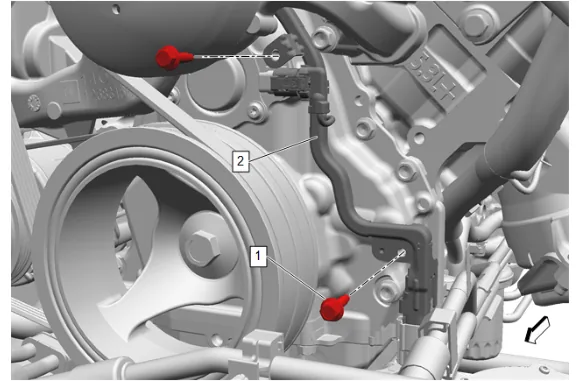

Camshaft Position Sensor Replacement — figure 3
Camshaft Position Sensor Replacement — figure 3
  1. Camshaft Position Sensor Bracket Bolt (1) » Remove [2x]
  2. Carefully reposition the camshaft position sensor bracket (2).

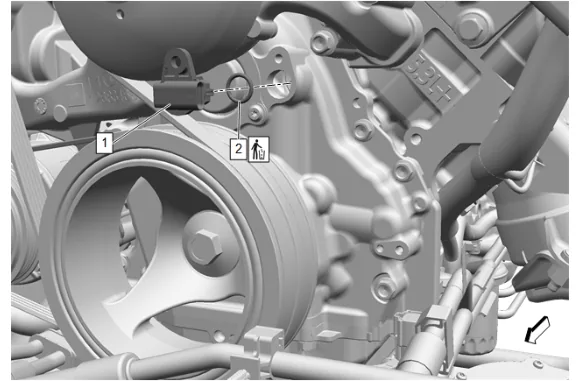

Camshaft Position Sensor Replacement — figure 4
Camshaft Position Sensor Replacement — figure 4

  1. Disconnect the camshaft position sensor electrical connector.

  2. Camshaft Position Sensor (1) » Remove

  3. Camshaft Position Sensor Seal (2) » Remove and DISCARD Installation Procedure

  4. Camshaft Position Sensor Seal (2) » Install NEW

  5. Camshaft Position Sensor (1) » Install

  6. Connect the camshaft position sensor electrical connector.

  7. Carefully install the camshaft position sensor bracket (2).

  1. Camshaft Position Sensor Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Air Cleaner Outlet Duct (3) » Install

  3. Air Cleaner Outlet Duct Clamp (2) » Install and tighten [2x] — Fastener Specifications

  4. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

  5. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

  6. Install engine wiring harness to air cleaner outlet duct bracket.

  7. Connect the battery ground cable to the battery. Battery Negative Cable Disconnection and Connection.
