Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket)

Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) Single Use Fasteners and Components Tie Strap Removal Procedure

Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 1
Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 1
  1. Rear Seat Cushion Cover and Pad (1) » Remove — Rear Seat Cushion Cover and Pad Removal and Installation

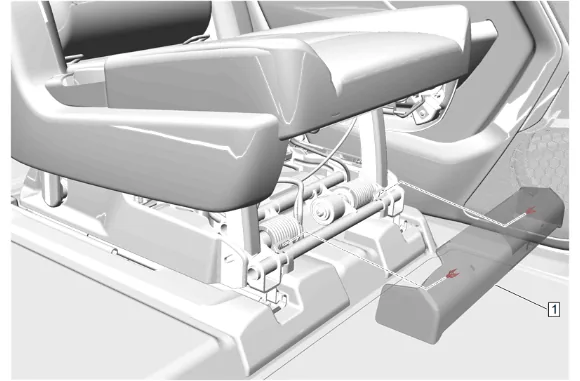

Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 2
Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 2
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Rear Seat Riser Finish Cover (1) » Remove
Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 3
Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 3
  1. Using a flat-bladed plastic trim tool, release the retaining clip.
  2. Rear Seat Riser Finish Cover (1) » Remove

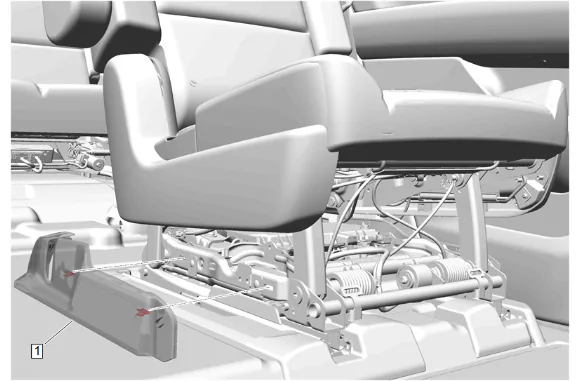

Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 4
Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 4
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Using a suitable plastic trim tool, release the retaining tabs.
  3. Rear Seat Riser Inner Finish Cover - Inboard (1) » Remove
Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 5
Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 5
  1. Rear Seat Latch Finish Cover (1) » Remove
Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 6
Rear Seat Back Latch Cable Replacement - Inboard (40 Percent, Bucket) — figure 6

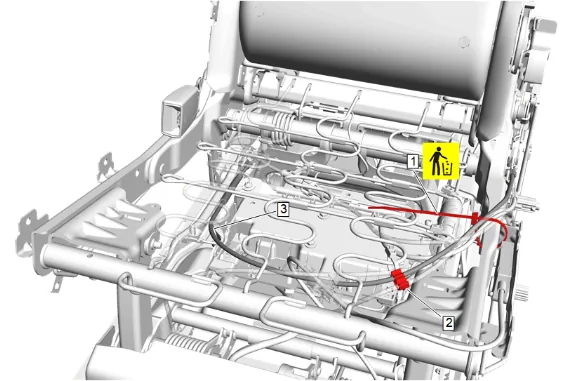

  1. Tie Strap (1) » Remove and DISCARD

  2. If equipped, release the rear seat back latch cable (3) from the cable retainer (2).

  3. Using a suitable tool, release the seat cable retaining features.

  4. Release the cable ends from the seat frame.

  5. Rear Seat Back Latch Cable - Inboard Floor Latch (3) » Remove Installation Procedure

  6. Rear Seat Back Latch Cable - Inboard Floor Latch (3) » Install

  7. Install the cable ends into the seat frame.

  8. Secure the seat cable retaining features.

  9. If equipped, secure the rear seat back latch cable (3) into the cable retainer (2).

  10. Tie Strap (1) » Install NEW

  1. Rear Seat Latch Finish Cover (1) » Install

  2. Rear Seat Riser Inner Finish Cover - Inboard (1) » Install

  1. Rear Seat Riser Finish Cover (1) » Install

  2. Rear Seat Riser Finish Cover (1) » Install

  3. Rear Seat Cushion Cover and Pad (1) » Install — Rear Seat Cushion Cover and Pad Removal and Installation
