Front Floor Console Armrest Cable Replacement (DCH)

Removal Procedure

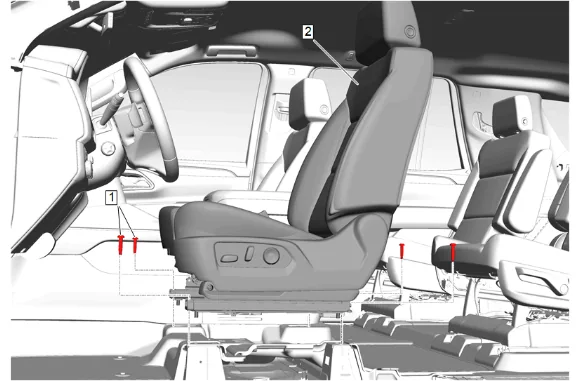

Front Floor Console Armrest Cable Replacement (DCH) — figure 1

Note

Left side shown, right side similar.

1. Front Seat - Left Side and Right Side (2) » Remove [2x] — Front Seat Removal and Installation

Front Floor Console Armrest Cable Replacement (DCH) — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Front Floor Console Lower Applique - Left Side (1) » Remove

Front Floor Console Armrest Cable Replacement (DCH) — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Front Floor Console Applique - Left Side (1) » Remove

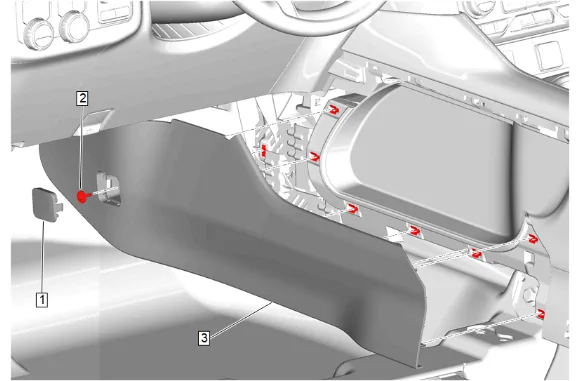

Front Floor Console Armrest Cable Replacement (DCH) — figure 4

Note

Use a flat bladed plastic trim tool.

6. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
7. Front Floor Console Extension Bolt (2) » Remove
8. Front Floor Console Extension Panel - Left Side (3) » Remove

Front Floor Console Armrest Cable Replacement (DCH) — figure 5

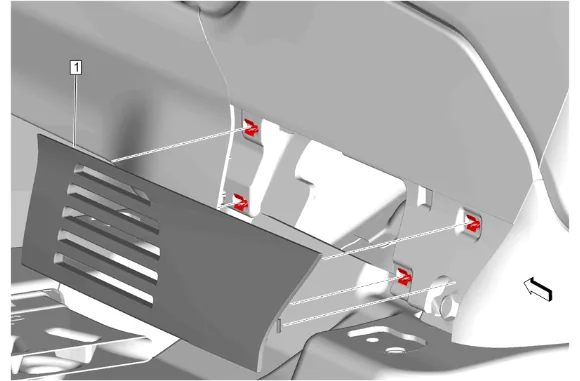

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Front Floor Console Bolt Access Hole Cover - Left Side (1) » Remove

Front Floor Console Armrest Cable Replacement (DCH) — figure 6

11. Slide the armrest back to better access the retainers.
12. Using a flat-bladed plastic trim tool, release the retaining clips.
13. Front Floor Console Rear Trim Lower Panel (1) » Remove

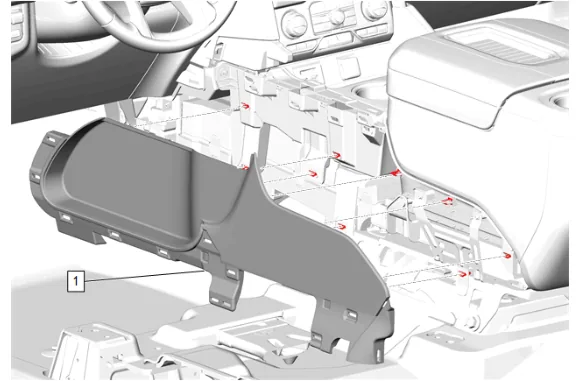

Front Floor Console Armrest Cable Replacement (DCH) — figure 7

14. Using a flat-bladed plastic trim tool, release the retaining clips.
15. Front Floor Rear Console Side Trim Panel - Left Side (1) » Remove

Front Floor Console Armrest Cable Replacement (DCH) — figure 8

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Front Floor Console Lower Applique - Right Side (1) » Remove

Front Floor Console Armrest Cable Replacement (DCH) — figure 9

18. Using a flat-bladed plastic trim tool, release the retaining clips.
19. Front Floor Console Applique - Right Side (1) » Remove

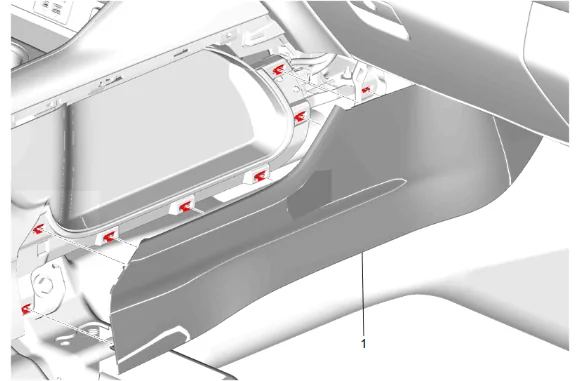

Front Floor Console Armrest Cable Replacement (DCH) — figure 10

Note

Use a flat bladed plastic trim tool.

20. Front Floor Console Extension Panel - Right Side (1) » Remove

Front Floor Console Armrest Cable Replacement (DCH) — figure 11

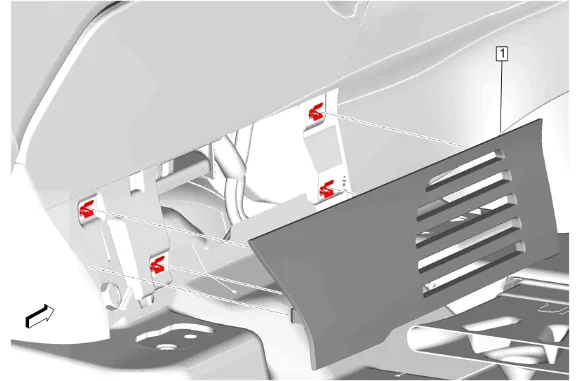

21. Using a flat-bladed plastic trim tool, release the retaining clips.
22. Front Floor Console Bolt Access Hole Cover - Right Side (1) » Remove

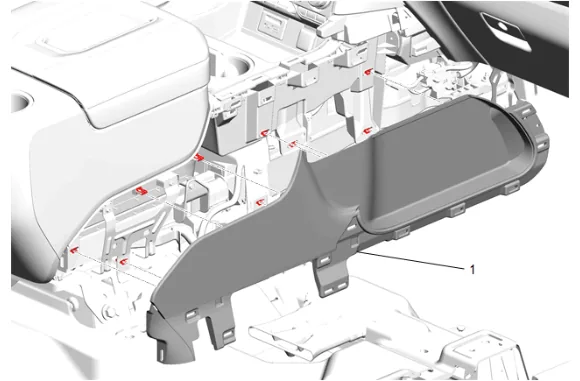

Front Floor Console Armrest Cable Replacement (DCH) — figure 12

23. Using a flat-bladed plastic trim tool, release the retaining clips.
24. Disconnect and reposition harness as necessary.
25. Front Floor Rear Console Side Trim Panel - Right Side (1) » Remove

Front Floor Console Armrest Cable Replacement (DCH) — figure 13

26. Front Floor Console Rear Cup Holder Liner (1) » Remove
27. Front Floor Console Cup Holder Bolt (2) » Remove
28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Front Floor Console Rear Cup Holder (3) » Remove

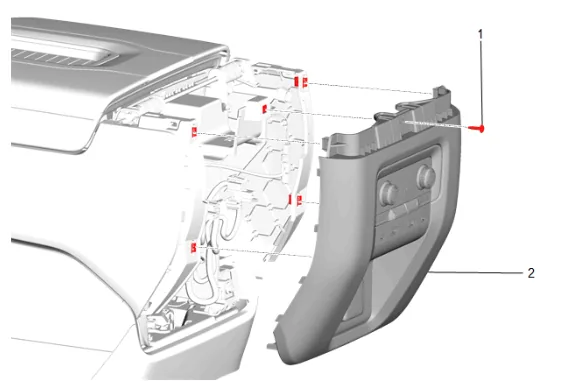

Front Floor Console Armrest Cable Replacement (DCH) — figure 14

30. Front Floor Console Rear Cover Bolt (1) » Remove
31. Using a flat-bladed plastic trim tool, release the retaining clips.
32. Front Floor Console Rear Trim Panel (2) » Remove
33. Disconnect the electrical connectors.

Front Floor Console Armrest Cable Replacement (DCH) — figure 15

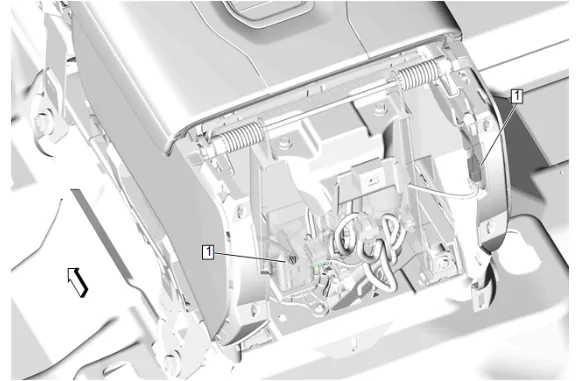

34. Disconnect the front floor console bin lamp connector (1).
35. Going forward make sure the front floor console compartment is in the full rearward position.

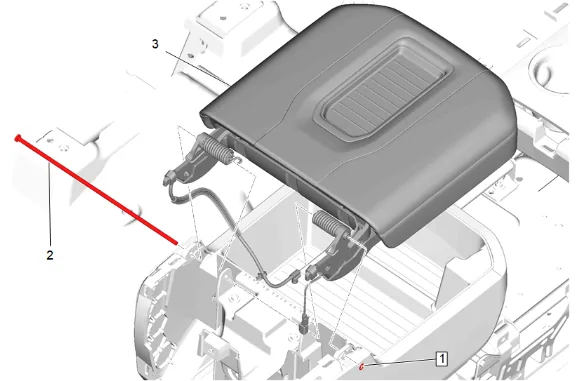

Front Floor Console Armrest Cable Replacement (DCH) — figure 16

Note

Use a suitable tool.

36. Front Floor Console Armrest Hinge Clip (1) » Remove

Warning

The armrest hinge springs are under pressure. Remove the pivot pin carefully in order to avoid bodily injury.

37. Front Floor Console Armrest Pivot Pin (2) » Remove
38. Front Floor Console Armrest (3) » Reposition

Front Floor Console Armrest Cable Replacement (DCH) — figure 17

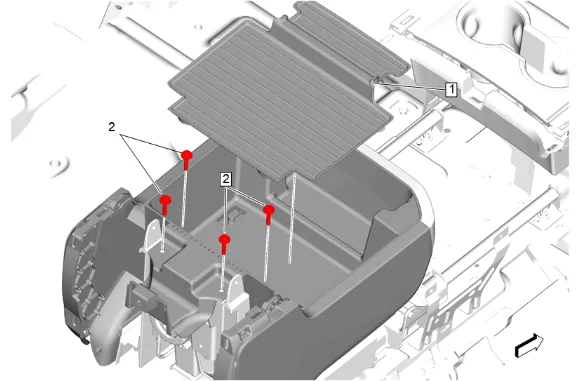

Note

Some components not shown for graphic clarity.

39. Front Floor Console Compartment Liner (1) » Remove
40. Front Floor Console Bracket Bolt (2) » Remove [4x]

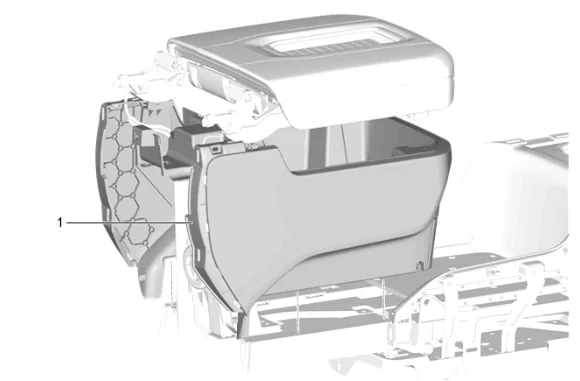

Front Floor Console Armrest Cable Replacement (DCH) — figure 18

41. Front Floor Console Compartment (1) » Remove

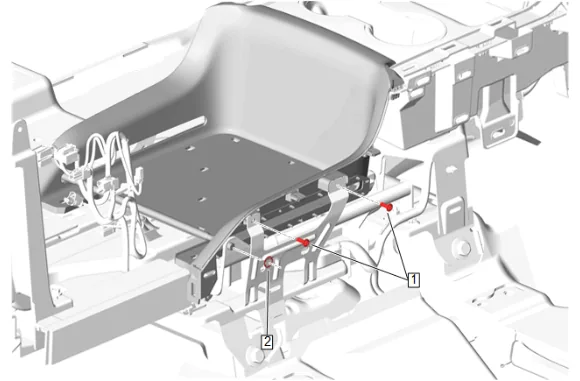

Front Floor Console Armrest Cable Replacement (DCH) — figure 19

42. Front Floor Console Stowage Tray Bolt (1) » Remove [2x]

Note

Use a suitable tool.

43. Front Floor Console Armrest Hinge Clip (2) » Remove

Front Floor Console Armrest Cable Replacement (DCH) — figure 20

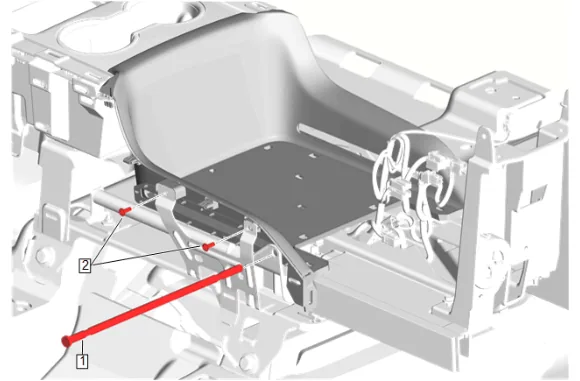

44. Front Floor Console Armrest Pivot Pin (1) » Remove
45. Front Floor Console Stowage Tray Bolt (2) » Remove [2x]

Front Floor Console Armrest Cable Replacement (DCH) — figure 21

46. Front Floor Console Stowage Tray (1) » Remove

Front Floor Console Armrest Cable Replacement (DCH) — figure 22

47. Release the front floor console armrest cable (1) from the cable union and front floor console base.

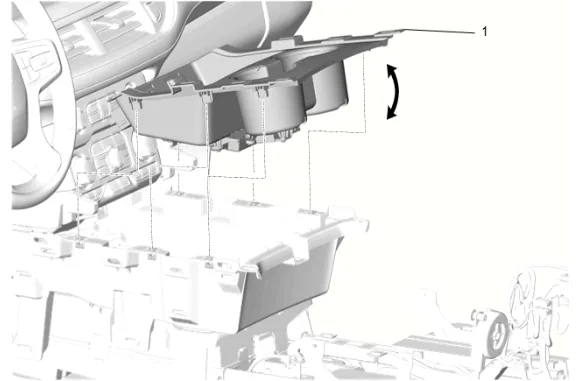

Front Floor Console Armrest Cable Replacement (DCH) — figure 23

48. Pull up on the rear of the front floor console cup holder trim plate (1) to start to release the retainer clips and work your way forward.
49. Disconnect the electrical connectors.
50. Front Floor Console Cup Holder Trim Plate (1) » Remove

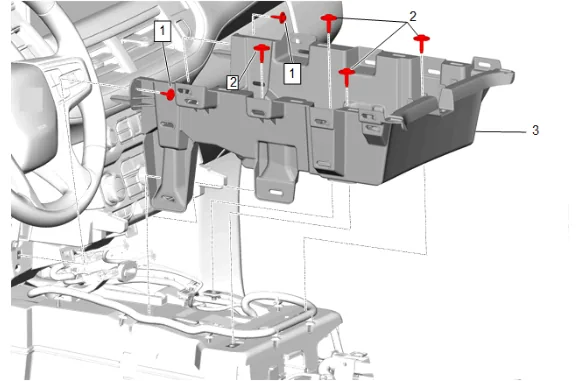

Front Floor Console Armrest Cable Replacement (DCH) — figure 24

51. Disconnect and reposition harness as necessary.
52. Front Floor Console Retainer Bolt (1) » Remove [2x]
53. Front Floor Console Intermediate Bracket Bolt (2) » Remove [4x]
54. Front Floor Console Carrier (3) » Remove

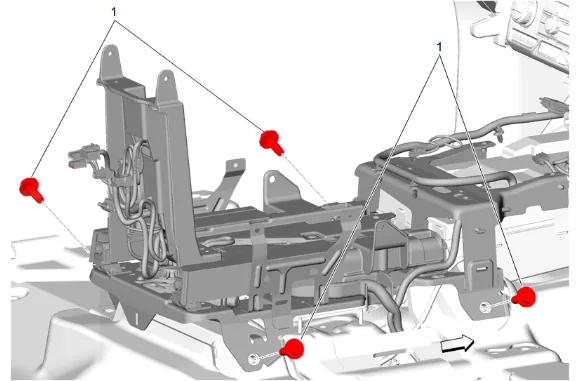

Front Floor Console Armrest Cable Replacement (DCH) — figure 25

55. Front Floor Console Bolt (1) » Remove [4x]

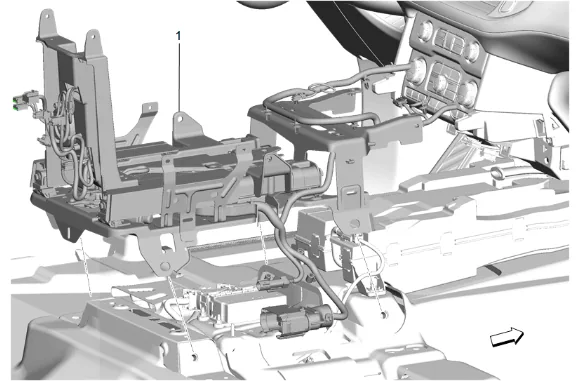

Front Floor Console Armrest Cable Replacement (DCH) — figure 26

56. Disconnect and reposition harness as necessary.
57. Front Floor Console Base (1) » Remove

Front Floor Console Armrest Cable Replacement (DCH) — figure 27

58. Front Floor Console Bracket Bolt @ Front Floor Console Base(1) » Remove [2x]

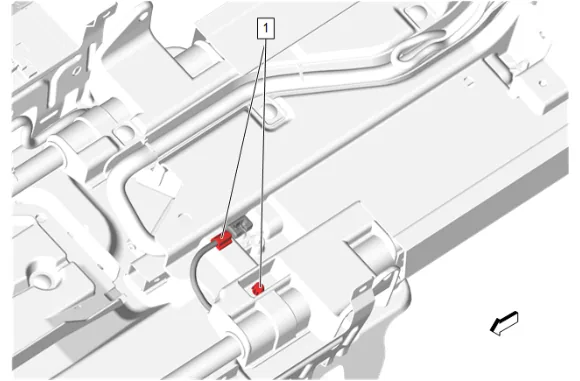

Front Floor Console Armrest Cable Replacement (DCH) — figure 28

59. Disconnect the front floor console armrest cable retainers (1).

Front Floor Console Armrest Cable Replacement (DCH) — figure 29

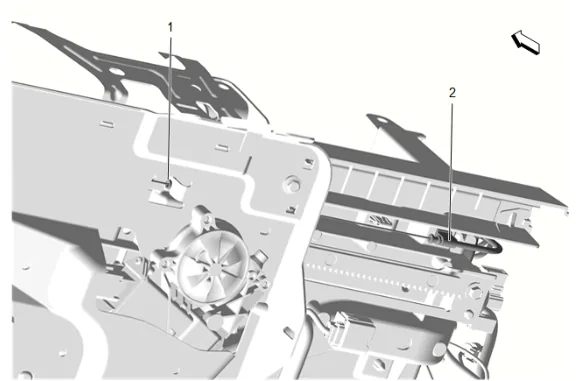

60. Disconnect the front floor console armrest cable grommet (1) and retainers (2) with the front floor console base on its side.

Front Floor Console Armrest Cable Replacement (DCH) — figure 30

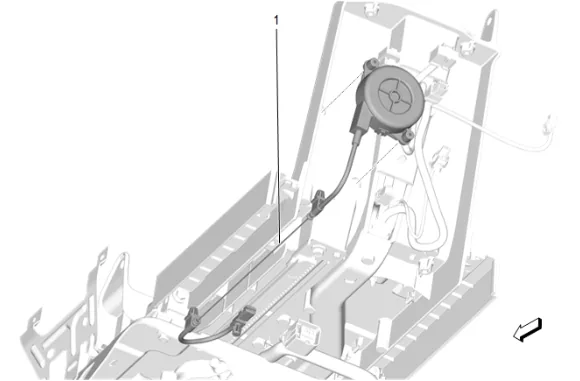

61. Front Floor Console Armrest Cable (1) » Remove Installation Procedure

62. Route the front floor console armrest cable (1) into the front floor console base.

Front Floor Console Armrest Cable Replacement (DCH) — figure 31

2. Connect the front floor console armrest cable grommet (1) with the front floor console base on its side.

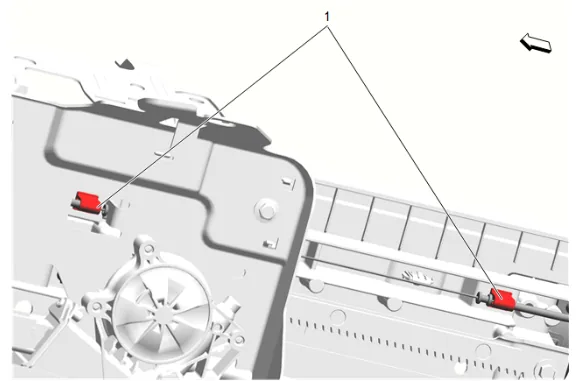

Front Floor Console Armrest Cable Replacement (DCH) — figure 32

3. Connect the front floor console armrest cable retainers (1).

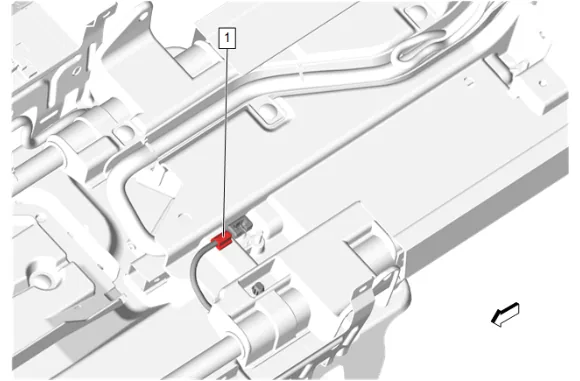

Front Floor Console Armrest Cable Replacement (DCH) — figure 33

4. Connect the front floor console armrest cable retainer (1).

Caution

Refer to Fastener Caution.

5. Front Floor Console Bracket Bolt @ Front Floor Console Base(1) » Install and tighten [2x] — Fastener Specifications

6. Front Floor Console Base (1) » Install

7. Connect and position the wiring harness.

8. Front Floor Console Bolt (1) » Install and tighten [4x] — Fastener Specifications

9. Connect and position the wiring harness.

10. Front Floor Console Carrier (3) » Install

11. Front Floor Console Intermediate Bracket Bolt (2) » Install and tighten [4x] — Fastener Specifications

12. Front Floor Console Retainer Bolt (1) » Install and tighten [2x] — Fastener Specifications

13. Connect the electrical connectors.

14. Front Floor Console Cup Holder Trim Plate (1) » Install

15. Connect the front floor console armrest cable (1) to the cable union and front floor console base.

16. Front Floor Console Stowage Tray (1) » Install

17. Front Floor Console Armrest Pivot Pin (1) » Install

18. Front Floor Console Stowage Tray Bolt (2) » Install and tighten [2x] — Fastener Specifications

19. Front Floor Console Stowage Tray Bolt (1) » Install and tighten [2x] — Fastener Specifications

20. Front Floor Console Armrest Hinge Clip (2) » Install

21. Front Floor Console Compartment (1) » Install

Note

Some components not shown for graphic clarity.

22. Front Floor Console Bracket Bolt (2) » Install and tighten [4x] — Fastener Specifications

23. Front Floor Console Compartment Liner (1) » Install

24. Front Floor Console Armrest (3) » Install

25. Front Floor Console Armrest Pivot Pin (2) » Install

26. Front Floor Console Armrest Hinge Clip (1) » Install

27. Connect the front floor console bin lamp connector (1).

28. Connect the electrical connectors.

29. Front Floor Console Rear Trim Panel (2) » Install

30. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

31. Front Floor Console Rear Cup Holder (3) » Install

32. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

33. Front Floor Console Rear Cup Holder Liner (1) » Install

34. Connect and position the wiring harness.

35. Front Floor Rear Console Side Trim Panel - Right Side (1) » Install

36. Front Floor Console Bolt Access Hole Cover - Right Side (1) » Install

37. Front Floor Console Extension Panel - Right Side (1) » Install

38. Front Floor Console Applique - Right Side (1) » Install

39. Front Floor Console Lower Applique - Right Side (1) » Install

40. Front Floor Rear Console Side Trim Panel - Left Side (1) » Install

41. Front Floor Console Rear Trim Lower Panel (1) » Install

42. Front Floor Console Bolt Access Hole Cover - Left Side (1) » Install

43. Front Floor Console Extension Panel - Left Side (3) » Install

44. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

45. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

46. Front Floor Console Applique - Left Side (1) » Install

47. Front Floor Console Lower Applique - Left Side (1) » Install

48. Return the front floor console compartment to the close position.

Note

Left side shown, right side similar.

49. Front Seat - Left Side and Right Side (2) » Install [2x] — Front Seat Removal and Installation
