Tahoe / Yukon Service Manual

Head-Up Display Switch Replacement

Removal Procedure

Head-Up Display Switch Replacement — figure 1
Head-Up Display Switch Replacement — figure 1
  1. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove
Head-Up Display Switch Replacement — figure 2
Head-Up Display Switch Replacement — figure 2
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Instrument Panel Fuse Block Access Hole Cover (1) » Remove
Head-Up Display Switch Replacement — figure 3
Head-Up Display Switch Replacement — figure 3
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Instrument Panel Trim Plate Applique (1) » Remove
Head-Up Display Switch Replacement — figure 4
Head-Up Display Switch Replacement — figure 4
  1. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
  2. Instrument Panel Trim Pad (2) » Remove
  3. Disconnect the electrical connectors.

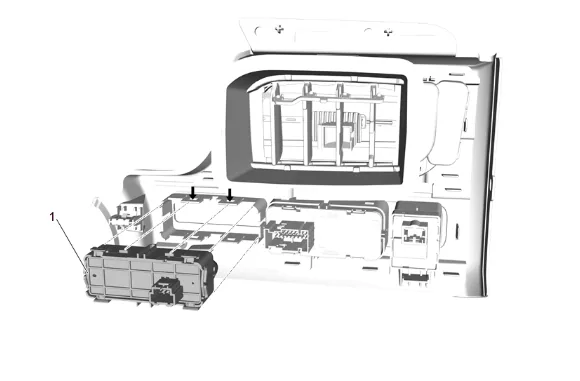

Head-Up Display Switch Replacement — figure 5
Head-Up Display Switch Replacement — figure 5

  1. Release the retaining tabs.

  2. Head-Up Display Switch (1) » Remove Installation Procedure

  3. Head-Up Display Switch (1) » Install

  4. Secure the retaining tabs.

  5. Connect the electrical connectors.

  6. Instrument Panel Trim Pad (2) » Install

  1. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Instrument Panel Trim Plate Applique (1) » Install

  3. Instrument Panel Fuse Block Access Hole Cover (1) » Install

  4. Instrument Panel Lower Trim Panel Outer Filler (1) » Install
