Fastener Specifications

Table 1: Back Body Opening Side Molding Table 2: Front grille Table 3: Front License plate bracket Table 4: Rear Applique Table 5: Rear End Spoiler Retainer Cover Table 6: Rear Spoiler Table 7: Rocker Panel Table 8: Upper Rear Side Door Opening Reveal Molding

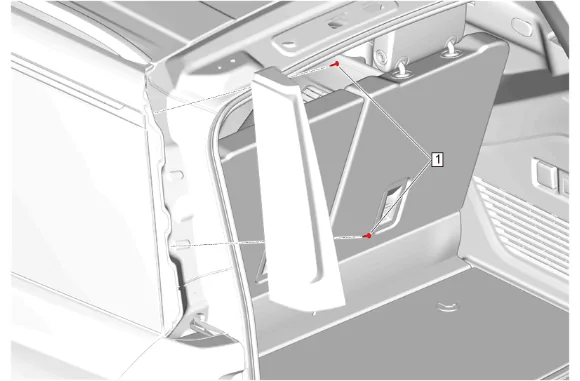

Fastener Specifications — figure 1

Back Body Opening Side Molding

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Back Body Opening Side Molding Bolt	—	—	2.5 Y (22 lb in)	Back Body Opening Side Molding Replacement

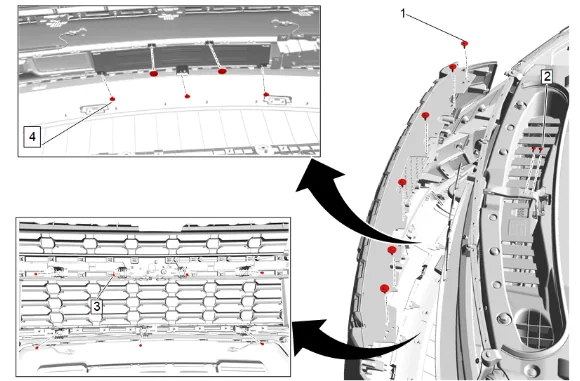

Fastener Specifications — figure 2

Front grille

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Grille Bolt [6x]	—	—	7 Y (62 lb in)	Front Grille Replacement
2	Hood Latch Actuator Bolt [2x]	—	—	2.5 Y (22 lb in)	Front Grille Replacement
3	Front Grille Support Bracket Bolt [7x]	—	—	2.5 Y (22 lb in)	Front Grille Replacement
4	Front Bumper Fascia Lower Bracket Bolt [5x]	—	—	2.5 Y (22 lb in)	Front Grille Filler Replacement

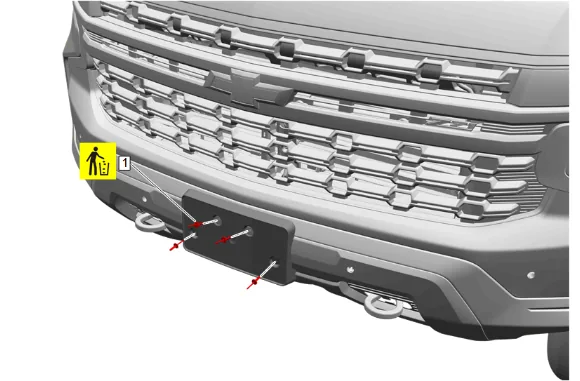

Fastener Specifications — figure 3

Front License plate bracket

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Front License Plate Bracket Rivet [4x]	Yes	—	—	Front License Plate Bracket Replacement

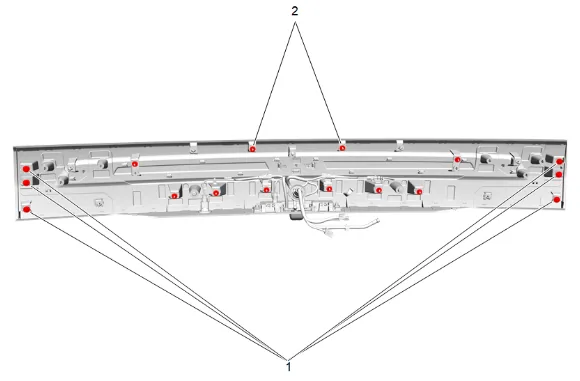

Fastener Specifications — figure 4

Rear Applique

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Closure Center Applique Nut [10x]	—	—	4.7 Y(42 lb in)	Rear Closure Center Applique Replacement
2	Rear Closure Center Applique Bolt [6x]	—	—	4.7 Y(42 lb in)	Rear Closure Center Applique Replacement

Fastener Specifications — figure 5

Rear End Spoiler Retainer Cover

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear End Spoiler Nut	—	—	9 Y(80 lb in)	Rear End Spoiler Retainer Cover Replacement

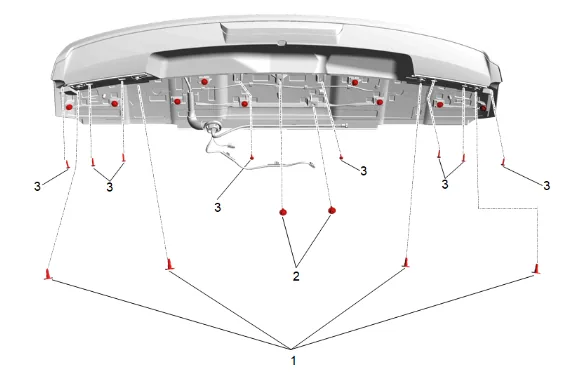

Fastener Specifications — figure 6

Rear Spoiler

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear End Spoiler Bolt [4x]	—	—	7 Y (62 lb in)	Rear End Spoiler Replacement
2	Rear End Spoiler Bolt [11x]	—	—	9 Y (80 lb in)	Rear End Spoiler Replacement
3	Roof Rear Spoiler Bolt [8x]	—	—	2.5 Y (22 lb in)	Rear End Spoiler Replacement

Fastener Specifications — figure 7

Rocker Panel

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rocker Panel Molding Bolt [3x]	—	—	2.5 Y (22 lb in)	Rocker Panel Rear Molding Replacement

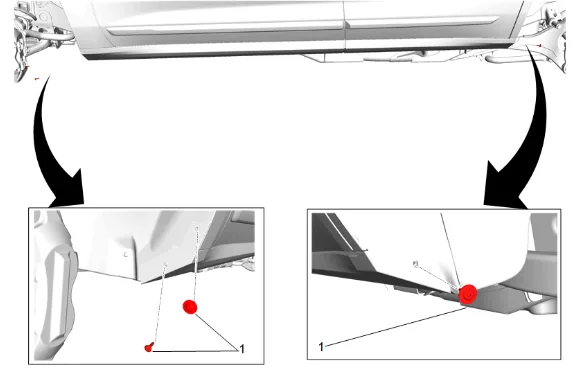

Fastener Specifications — figure 8

Upper Rear Side Door Opening Reveal Molding

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Upper Rear Side Door Opening Reveal Molding Rivet	Yes	—	—	Upper Rear Side Door Opening Reveal Molding Replacement
