Fastener Specifications
Table 1:
Air Conditioning Compressor with L84/L87
Table 2:
Air Conditioning Compressor with LM2
Table 3:
Air Conditioning Condenser L84/L87
Table 4:
Air Conditioning Condenser LM2
Table 5:
Air Conditioning Heat Exchanger
Table 6:
Air Conditioning Receiver and Dehydrator
Table 7:
Air Conditioning Refrigerant Heat Exchanger with C69
Table 8:
Air Conditioning Refrigerant Service Valves
Table 9:
Air Heater (C3A)
Table 10:
Air Inlet Housing
Table 11:
Auxiliary Air Conditioning Air Outlet
Table 12:
Auxiliary Air Conditioning Evaporator and Blower Module Assembly
Table 13:
Auxiliary Air Conditioning Evaporator Case
Table 14:
Auxiliary Air Conditioning Evaporator Hose Replacement (C69)
Table 15:
Auxiliary Air Conditioning Upper and Lower Air Duct (LWB)
Table 16:
Auxiliary Air Conditioning Upper and Lower Air Duct (SWB)
Table 17:
Auxiliary Blower Motor
Table 18:
Auxiliary Heater and Air Conditioning Pipe Repair
Table 19:
Auxiliary Heater Inlet and Outlet Hose
Table 20:
Auxiliary Heater Inlet and Outlet Hose/Auxiliary Air Conditioning Evaporator Tube
Table 21:
Auxiliary Thermal Expansion Valve
Table 22:
Blower Motor
Table 23:
Blower Motor Control Module (C69)
Table 24:
Floor Front Air Outlet Duct - Left Side
Table 25:
Floor Front Air Outlet Duct - Right Side
Table 26:
Fuel Cooler Coolant Cooler Inlet Hose
Table 27:
Fuel Cooler Coolant Cooler Inlet Hose
Table 28:
Fuel Cooler Coolant Cooler Inlet Hose
Table 29:
Heater and Air Conditioning Evaporator Case (Distributor)
Table 30:
Heater and Air Conditioning Evaporator Case - Upper
Table 31:
Heater and Air Conditioning Evaporator Module
Table 32:
Heater and Air Conditioning Evaporator Module Cover
Table 33:
Heater and Air Conditioning Evaporator Module Cover (Evaporator Pipe)
Table 34:
Heater Coolant Pump
Table 35:
Heater Cover
Table 36:
Instrument Panel HVAC Ducts
Table 37:
Rocker Inner Panel Front Extension
Table 38:
Thermal Expansion Valve
Fastener Specifications (1) — figure 1

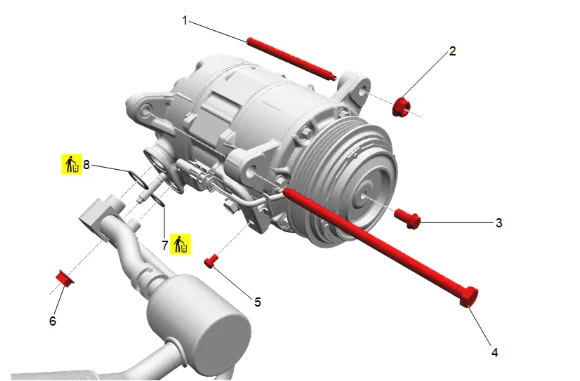

Air Conditioning Compressor with L84/L87
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Air Conditioning Compressor Stud |
— |
— |
9 Y (80 lb in) |
Air Conditioning Compressor Replacement |
|
|
2 |
Air Conditioning Compressor Nut |
— |
— |
22 Y (16 lb ft) |
Air Conditioning Compressor Replacement |
|
|
3 |
Air Conditioning Compressor Pulley Bolt |
— |
— |
22 Y (16 lb ft) |
Air Conditioning Clutch Replacement |
|
|
4 |
Air Conditioning Compressor Bolt |
— |
— |
22 Y (16 lb ft) |
Air Conditioning Compressor Replacement |
|
|
5 |
Air Conditioning Compressor Brace Bolt |
— |
— |
3.4 Y (30 lb in) |
Air Conditioning Clutch Replacement |
|
|
6 |
Air Conditioning Compressor and Condenser Hose Nut |
— |
— |
21.5 Y (16 lb ft) |
Air Conditioning Compressor and Condenser Hose Replacement |
|
|
|
|
|
|
|
Air Conditioning Compressor Replacement |
|
|
7 |
Air Conditioning Compressor and Condenser Hose Seal - Small |
Yes |
— |
— |
Air Conditioning Compressor and Condenser Hose Replacement |
|
|
|
|
|
|
|
Air Conditioning Compressor Replacement |
|
|
8 |
Air Conditioning Compressor and Condenser Hose Seal - Large |
Yes |
— |
— |
Air Conditioning Compressor and Condenser Hose Replacement |
|
|
|
|
|
|
|
Air Conditioning Compressor Replacement |
|
Fastener Specifications (1) — figure 2

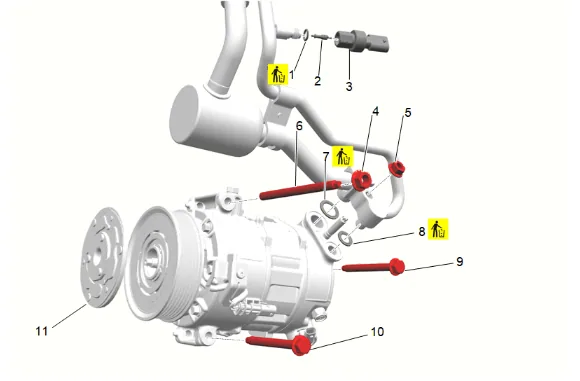

Air Conditioning Compressor with LM2
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Air Conditioning Cycling and Fan Control Air Conditioning Refrigerant Pressure Sensor Seal |
Yes |
— |
— |
Air Conditioning Refrigerant Pressure Sensor Replacement |
| 2 |
Air Conditioning Refrigerant Low Pressure Service Valve |
— |
— |
.40 Y (4 lb in) |
Air Conditioning Refrigerant Pressure Sensor Replacement |
| 3 |
Air Conditioning Refrigerant Pressure Sensor |
— |
— |
5 Y (44 lb in) |
Air Conditioning Refrigerant Pressure Sensor Replacement |
| 4 |
Air Conditioning Compressor Nut |
— |
— |
22 Y (16 lb ft) |
Air Conditioning Compressor Replacement |
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 5 |
Air Conditioning Compressor and Condenser Hose Nut |
— |
— |
21.5 Y (16 lb ft) |
Air Conditioning Compressor and Condenser Hose Replacement |
|
|
|
|
|
Air Conditioning Compressor Replacement |
| 6 |
Air Conditioning Compressor Stud |
— |
— |
9 Y (80 lb in) |
Air Conditioning Compressor Replacement |
| 7 |
Air Conditioning Compressor and Condenser Hose Seal - Large |
Yes |
— |
— |
Air Conditioning Compressor and Condenser Hose Replacement |
|
|
|
|
|
Air Conditioning Compressor Replacement |
| 8 |
Air Conditioning Compressor and Condenser Hose Seal - Small |
Yes |
— |
— |
Air Conditioning Compressor and Condenser Hose Replacement |
|
|
|
|
|
Air Conditioning Compressor Replacement |
| 9 |
Air Conditioning Compressor Bolt |
— |
— |
22 Y (16 lb ft) |
Air Conditioning Compressor Replacement |
| 10 |
Air Conditioning Compressor Brace Bolt |
— |
— |
3.4 Y (30 lb in) |
Air Conditioning Clutch Replacement |
| 11 |
Air Conditioning Compressor Bolt |
— |
— |
22 Y (16 lb ft) |
Air Conditioning Compressor Replacement |
| 12 |
Air Conditioning Compressor Drive Plate |
— |
— |
35 Y (26 lb ft) |
Air Conditioning Clutch Replacement |

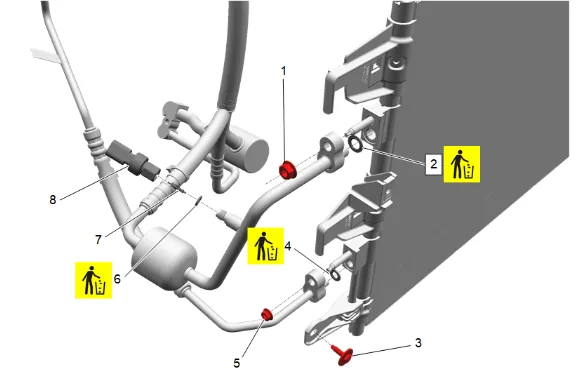

Fastener Specifications (1) — figure 3
Air Conditioning Condenser L84/L87
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Air Conditioning Compressor and Condenser Hose Nut |
— |
— |
21.5 Y (16 lb ft) |
Air Conditioning Compressor and Condenser Hose Replacement |
|
|
|
|
|
Air Conditioning Condenser Replacement |
| 2 |
Air Conditioning Compressor and Condenser Hose Seal |
Yes |
— |
— |
Air Conditioning Compressor and Condenser Hose Replacement |
|
|
|
|
|
Air Conditioning Condenser Replacement |
| 3 |
Air Conditioning Condenser Bracket Bolt [2x] |
— |
— |
9 Y (80 lb in) |
Air Conditioning Condenser Replacement |
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 4 |
Air Conditioning Compressor and Condenser Hose Seal |
Yes |
— |
— |
Air Conditioning Condenser and Evaporator Hose Replacement |
|
|
|
|
|
Air Conditioning Condenser Replacement |
| 5 |
Air Conditioning Condenser and Evaporator Hose Nut |
— |
— |
21.5 Y (16 lb ft) |
Air Conditioning Condenser and Evaporator Hose Replacement |
|
|
|
|
|
Air Conditioning Condenser Replacement |
| 6 |
Air Conditioning Cycling and Fan Control Air Conditioning Refrigerant Pressure Sensor Seal |
Yes |
— |
— |
Air Conditioning Refrigerant Pressure Sensor Replacement |
| 7 |
Air Conditioning Refrigerant Low Pressure Service Valve |
— |
— |
.40 Y (4 lb in) |
Air Conditioning Refrigerant Pressure Sensor Replacement |
| 8 |
Air Conditioning Refrigerant Pressure Sensor |
— |
— |
5 Y (44 lb in) |
Air Conditioning Refrigerant Pressure Sensor Replacement |
Fastener Specifications (1) — figure 4
Air Conditioning Condenser LM2
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Air Conditioning Compressor and Condenser Hose Nut |
— |
— |
21.5 Y (16 lb ft) |
Air Conditioning Compressor and Condenser Hose Replacement |
|
|
|
|
|
Air Conditioning Condenser Replacement |
| 2 |
Air Conditioning Compressor and Condenser Hose Seal |
Yes |
— |
— |
Air Conditioning Compressor and Condenser Hose Replacement |
|
|
|
|
|
Air Conditioning Condenser Replacement |
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 3 |
Air Conditioning Condenser and Evaporator Hose Nut |
— |
— |
21.5 Y (16 lb ft) |
Air Conditioning Condenser and Evaporator Hose Replacement |
|
|
|
|
|
Air Conditioning Condenser Replacement |
| 4 |
Air Conditioning Compressor and Condenser Hose Seal |
Yes |
— |
— |
Air Conditioning Condenser and Evaporator Hose Replacement |
|
|
|
|
|
Air Conditioning Condenser Replacement |
Fastener Specifications (1) — figure 5
Air Conditioning Heat Exchanger
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Air Conditioning Compressor and Condenser Hose Nut |
— |
— |
22 Y (16 lb ft) |
Air Conditioning Compressor and Condenser Hose Replacement |
|
|
|
|
|
Air Conditioning Evaporator Thermal Expansion Valve Replacement |
| 2 |
Air Conditioning Evaporator Seal - Small[2x] |
Yes |
— |
— |
Air Conditioning Evaporator Thermal Expansion Valve Replacement |
|
|
|
|
|
Air Conditioning Refrigerant Heat Exchanger Replacement |
| 3 |
Air Conditioning Evaporator Thermal Expansion Valve Hose Nut |
— |
— |
22 Y (16 lb ft) |
Air Conditioning Evaporator Thermal Expansion Valve Replacement |
|
|
|
|
|
Air Conditioning Refrigerant Heat Exchanger Replacement |
| 4 |
Air Conditioning Refrigerant Heat Exchanger Nut |
— |
— |
9 Y (80 lb in) |
Air Conditioning Refrigerant Heat Exchanger Replacement |
| 5 |
Air Conditioning Evaporator Seal - Large[2x] |
Yes |
— |
— |
Air Conditioning Evaporator Thermal Expansion Valve Replacement |
|
|
|
|
|
Air Conditioning Refrigerant Heat Exchanger Replacement |
Fastener Specifications (1) — figure 6
Air Conditioning Receiver and Dehydrator
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Air Conditioning Receiver and Dehydrator |
— |
— |
16 Y (12 lb ft) |
Air Conditioning Receiver and Dehydrator Replacement |
Fastener Specifications (1) — figure 7
Air Conditioning Refrigerant Heat Exchanger with C69
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Air Conditioning Evaporator Thermal Expansion Valve Seal - Small |
Yes |
— |
— |
Air Conditioning Refrigerant Heat Exchanger Replacement |
|
|
|
|
|
Auxiliary Air Conditioning Evaporator Hose Replacement |
| 2 |
Air Conditioning Evaporator Thermal Expansion Valve Hose Nut |
— |
— |
22 Y (16 lb ft) |
Air Conditioning Refrigerant Heat Exchanger Replacement |
|
|
|
|
|
Auxiliary Air Conditioning Evaporator Hose Replacement |
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 3 |
Air Conditioning Evaporator Thermal Expansion Valve Seal - Large |
Yes |
— |
— |
Air Conditioning Refrigerant Heat Exchanger Replacement |
|
|
|
|
|
Auxiliary Air Conditioning Evaporator Hose Replacement |

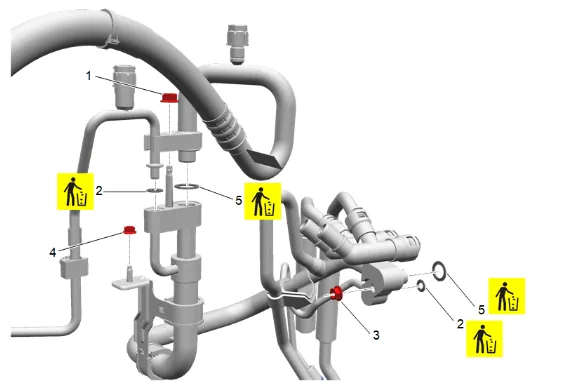

Fastener Specifications (1) — figure 8
Air Conditioning Refrigerant Service Valves
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Air Conditioning Evaporator Tube Fitting Cap |
— |
— |
1.3 Y (12 lb in) |
Refrigerant Recovery and Recharging |
| 2 |
Air Conditioning Evaporator Tube Fitting Cap |
— |
— |
1.3 Y (12 lb in) |
Refrigerant Recovery and Recharging |
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 3 |
Air Conditioning Refrigerant Low Pressure Service Valve |
— |
— |
.40 Y (4 lb in) |
Air Conditioning Refrigerant Service Valve Core Replacement |
| 4 |
Air Conditioning Refrigerant High Pressure Service Valve |
— |
— |
1.7 Y (15 lb in) |
Air Conditioning Refrigerant Service Valve Core Replacement |
Fastener Specifications (1) — figure 9
Air Heater (C3A)
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Heater and Air Conditioning Evaporator and Blower Module Bolt [2x] |
— |
— |
1.2 Y (11 lb in) |
Air Heater Replacement |
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 2 |
Ground Nut |
— |
— |
8 Y (71 lb in) |
Air Heater Replacement |
|
|
|
|
|
Heater and Air Conditioning Evaporator and Blower Module Removal and Installation |

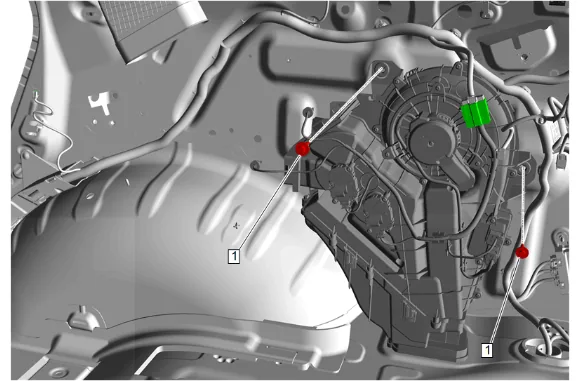

Fastener Specifications (1) — figure 10
Air Inlet Housing
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Heater and Air Conditioning Evaporator and Blower Module Bolt [3x] |
— |
— |
1.2 Y (11 lb in) |
Air Inlet Housing Replacement |

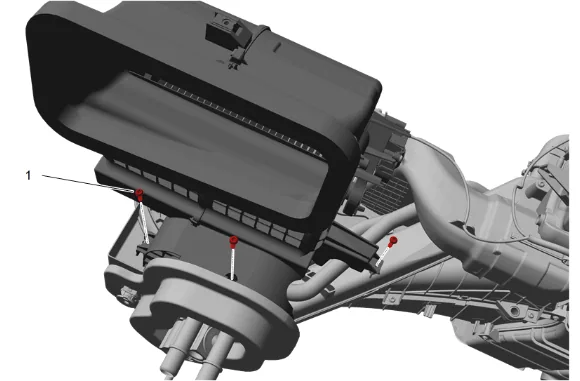

Fastener Specifications (1) — figure 11
Auxiliary Air Conditioning Air Outlet
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Auxiliary Air Conditioning Air Outlet Upper Bolt [2x] |
— |
— |
.70 Y (6 lb in) |
Auxiliary Air Conditioning Air Outlet Replacement |
Fastener Specifications (1) — figure 12
Auxiliary Air Conditioning Evaporator and Blower Module Assembly
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Auxiliary Air Conditioning Evaporator and Blower Module Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Auxiliary Air Conditioning Evaporator and Blower Module Assembly Removal and Installation |
Fastener Specifications (1) — figure 13
Auxiliary Air Conditioning Evaporator Case
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Auxiliary Air Conditioning Evaporator and Blower Case Bolt [8x] |
— |
— |
1.2 Y (11 lb in) |
Auxiliary Air Conditioning Evaporator Replacement |
|
|
|
|
|
Auxiliary Heater Core Replacement |
| 2 |
Air Conditioning And Blower Module Nut [2x] |
— |
— |
9 Y (80 lb in) |
Auxiliary Air Conditioning Evaporator and Blower Module Assembly Removal and Installation |

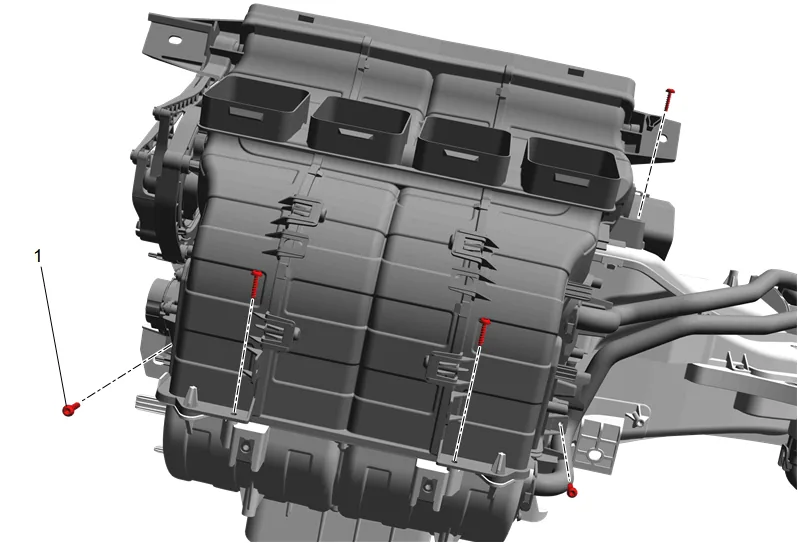

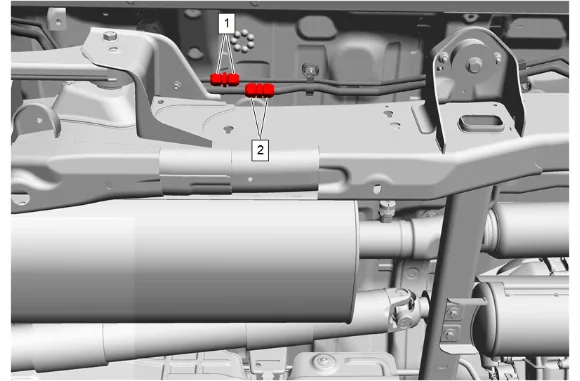

Fastener Specifications (1) — figure 14
Auxiliary Air Conditioning Evaporator Hose Replacement (C69)
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Air Conditioning Tube Repair Nut (3/8 in Outer Diameter)[2x] |
— |
— |
20-24 Y (15-18 lb ft) |
Auxiliary Air Conditioning Evaporator Hose Replacement |
| 2 |
Air Conditioning Tube Repair Nut (16mm Outer Diameter)[2x] |
— |
— |
24-27 Y (18-20 lb ft) |
Auxiliary Air Conditioning Evaporator Hose Replacement |
Fastener Specifications (1) — figure 15
Auxiliary Air Conditioning Upper and Lower Air Duct (LWB)
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Auxiliary Air Conditioning Air Outlet Upper Duct Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Auxiliary Air Conditioning Air Outlet Duct Replacement |
|
|
|
|
|
Auxiliary Air Conditioning Evaporator and Blower Module Assembly Removal and Installation |
| 2 |
Auxiliary Air Conditioning Air Outlet Duct Bolt[2x] |
— |
— |
2.5 Y (22 lb in) |
Auxiliary Air Conditioning Air Outlet Duct Replacement |
|
|
|
|
|
Auxiliary Air Conditioning Evaporator and Blower Module Assembly Removal and Installation |
Fastener Specifications (1) — figure 16
Auxiliary Air Conditioning Upper and Lower Air Duct (SWB)
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Auxiliary Air Conditioning Air Outlet Upper Duct Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Auxiliary Air Conditioning Air Outlet Duct Replacement |
|
|
|
|
|
Auxiliary Air Conditioning Evaporator and Blower Module Assembly Removal and Installation |
| 2 |
Auxiliary Air Conditioning Air Outlet Duct Bolt |
— |
— |
2.5 Y (22 lb in) |
Auxiliary Air Conditioning Air Outlet Duct Replacement |
|
|
|
|
|
Auxiliary Air Conditioning Evaporator and Blower Module Assembly Removal and Installation |

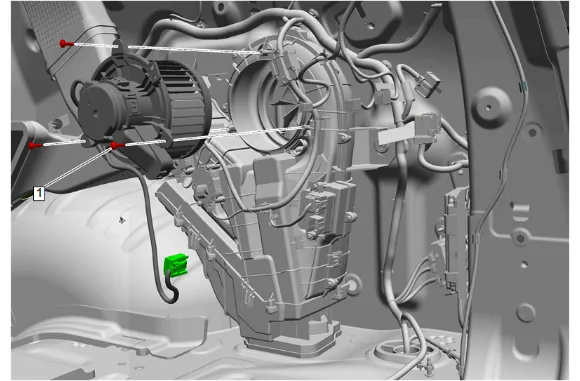

Fastener Specifications (1) — figure 17
Auxiliary Blower Motor
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Auxiliary Air Conditioning Evaporator and Blower Module Bolt [3x] |
— |
— |
1.2 Y (11 lb in) |
Auxiliary Blower Motor Replacement |
Fastener Specifications (1) — figure 18

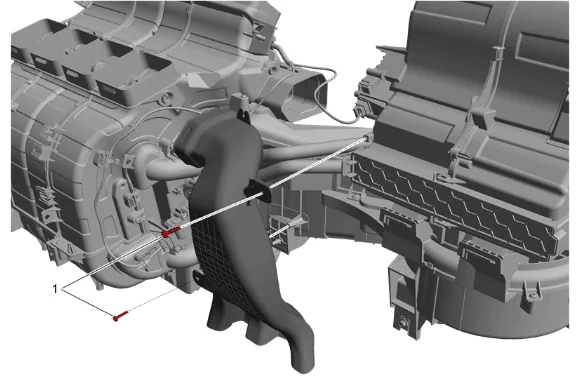

Auxiliary Heater and Air Conditioning Pipe Repair
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
5/16 in Outer Diameter Pipe |
— |
— |
20-24 Y (15-18 lb ft) |
Auxiliary Heater and Air Conditioning Pipe Repair |
| 1 |
3/8 in Outer Diameter Pipe |
— |
— |
20-24 Y (15-18 lb ft) |
Auxiliary Heater and Air Conditioning Pipe Repair |
| 1 |
1/2 in Outer Diameter Pipe |
— |
— |
20-24 Y (15-18 lb ft) |
Auxiliary Heater and Air Conditioning Pipe Repair |
| 1 |
5/8 in Outer Diameter Pipe |
— |
— |
24-27 Y (18-20 lb ft) |
Auxiliary Heater and Air Conditioning Pipe Repair |
| 1 |
3/4 in Outer Diameter Pipe |
— |
— |
24-27 Y (18-20 lb ft) |
Auxiliary Heater and Air Conditioning Pipe Repair |
| 1 |
8 mm Outer Diameter Pipe |
— |
— |
20-24 Y (15-18 lb ft) |
Auxiliary Heater and Air Conditioning Pipe Repair |
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
10 mm Outer Diameter Pipe |
— |
— |
20-24 Y (15-18 lb ft) |
Auxiliary Heater and Air Conditioning Pipe Repair |
| 1 |
12 mm Outer Diameter Pipe |
— |
— |
20-24 Y (15-18 lb ft) |
Auxiliary Heater and Air Conditioning Pipe Repair |
| 1 |
16 mm Outer Diameter Pipe |
— |
— |
24-27 Y (18-20 lb ft) |
Auxiliary Heater and Air Conditioning Pipe Repair |

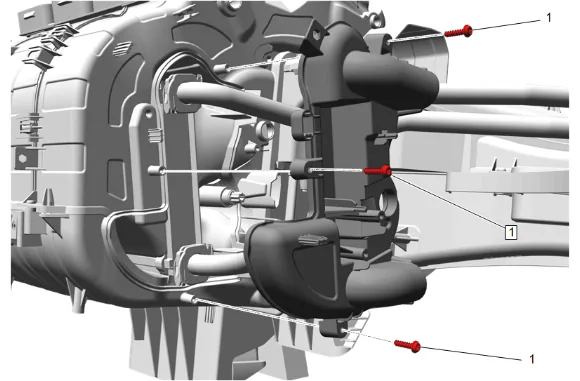

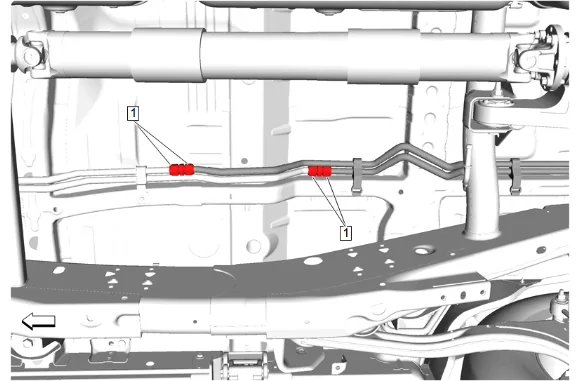

Fastener Specifications (1) — figure 19
Auxiliary Heater Inlet and Outlet Hose
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Air Conditioning Tube Repair Nut (16mm Outer Diameter)[4x] |
— |
— |
24-27 Y (18-20 lb ft) |
Auxiliary Heater Inlet and Outlet Hose Replacement |
Fastener Specifications (1) — figure 20
Auxiliary Heater Inlet and Outlet Hose/Auxiliary Air Conditioning Evaporator Tube
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Auxiliary Heater Inlet and Outlet Hose Clip Nut [6x] |
— |
— |
9 Y (80 lb in) |
Auxiliary Heater Inlet and Outlet Hose Replacement |
| 2 |
Auxiliary Heater Inlet and Outlet Hose Clip Bolt |
— |
— |
9 Y (80 lb in) |
Auxiliary Heater Inlet and Outlet Hose Replacement |
| 3 |
Auxiliary Air Conditioning Evaporator Tube Clip Nut [6x] |
— |
— |
9 Y (80 lb in) |
Auxiliary Air Conditioning Evaporator Hose Replacement |
Fastener Specifications (1) — figure 21

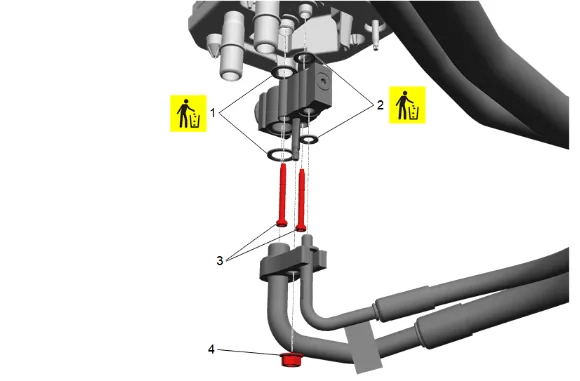

Auxiliary Thermal Expansion Valve
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Air Conditioning Evaporator Thermal Expansion Valve Seal - Large [2x] |
Yes |
— |
— |
Auxiliary Air Conditioning Evaporator Thermal Expansion Valve Replacement |
|
|
|
|
|
|
|
Auxiliary Air Conditioning Evaporator Hose Replacement |
|
|
2 |
Air Conditioning Evaporator Thermal Expansion Valve Seal - Small [2x] |
Yes |
— |
— |
Auxiliary Air Conditioning Evaporator Thermal Expansion Valve Replacement |
|
|
|
|
|
|
|
Auxiliary Air Conditioning Evaporator Hose Replacement |
|
|
3 |
Air Conditioning Evaporator Thermal |
— |
— |
7 Y (62 lb in) |
Auxiliary Air Conditioning Evaporator Thermal |
|
|
|
© |
2023 Gen |
eral Motor |
s. All rights reserved. |
|
|
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
|
Expansion Valve Bolt [2x] |
|
|
|
Expansion Valve Replacement |
| 4 |
Air conditioning Evaporator Thermal Expansion Valve Hose Nut |
— |
— |
9 Y (80 lb in) |
Auxiliary Air Conditioning Evaporator Thermal Expansion Valve Replacement |
|
|
|
|
|
Auxiliary Air Conditioning Evaporator Hose Replacement |

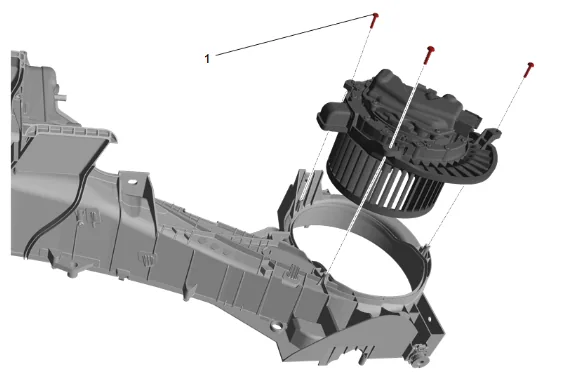

Fastener Specifications (1) — figure 22
Blower Motor
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Auxiliary Air Conditioning Evaporator and Blower Module Bolt [3x] |
— |
— |
1.2 Y (11 lb in) |
Blower Motor Replacement |
|

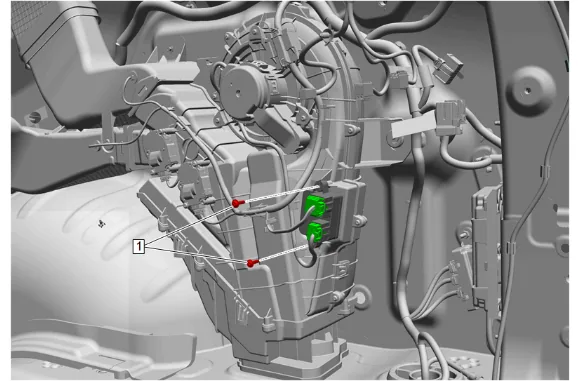

Fastener Specifications (1) — figure 23

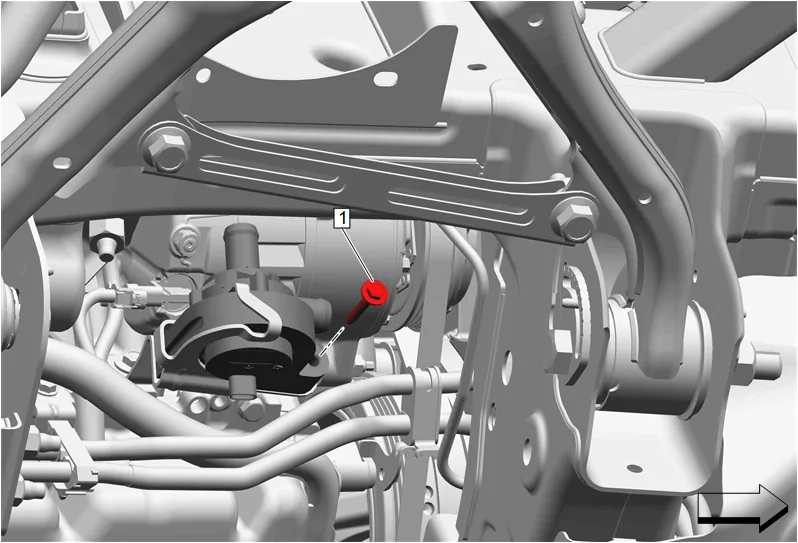

Blower Motor Control Module (C69)
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Auxiliary Air Conditioning Evaporator and Blower Module Bolt [2x] |
— |
— |
1.2 Y (11 lb in) |
Blower Motor Control Module Replacement |
Fastener Specifications (1) — figure 24

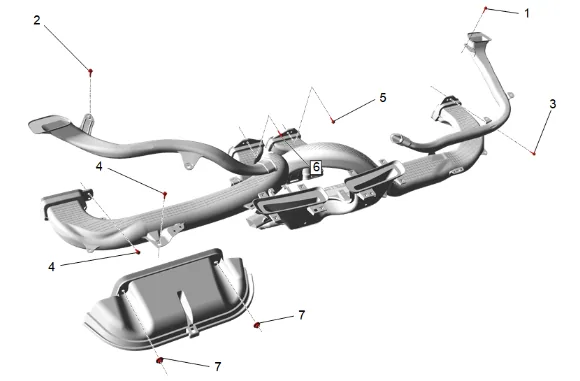

Floor Front Air Outlet Duct - Left Side
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Floor Front Air Outlet Duct Bolt |
— |
— |
2.5 Y (22 lb in) |
Floor Front Air Outlet Duct Replacement - Left Side |
| 2 |
Front Floor Console Auxiliary Cooling Intermediate Duct Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Front Floor Console Auxiliary Cooling Duct Replacement |
Fastener Specifications (1) — figure 25
Floor Front Air Outlet Duct - Right Side
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Auxiliary Air Conditioning Evaporator and Blower Module Bolt [2x] |
— |
— |
1.2 Y (11 lb in) |
Floor Front Air Outlet Duct Replacement - Right Side |
|
|
|
|
|
Heater and Air Conditioning Evaporator Case Replacement - Upper |

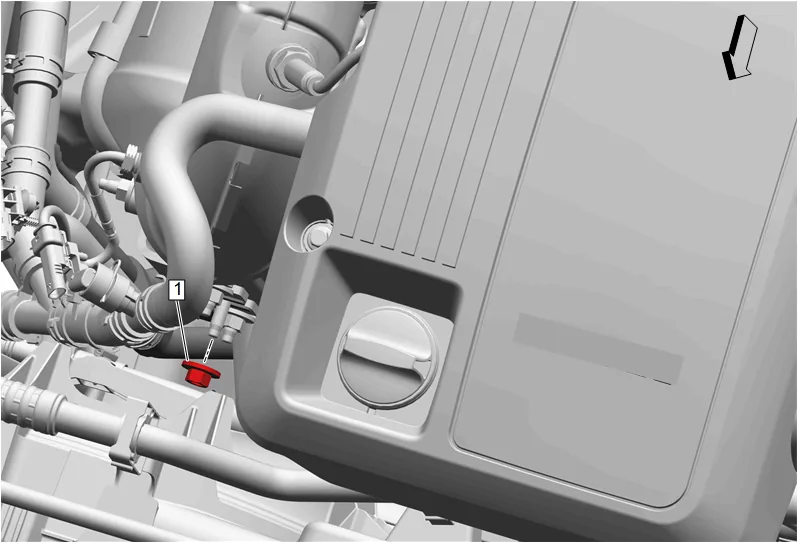

Fastener Specifications (1) — figure 26
Fuel Cooler Coolant Cooler Inlet Hose
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Fuel Heater Inlet and Outlet Nut |
— |
— |
22 Y (16 lb ft) |
Fuel Cooler Coolant Cooler Inlet Hose Replacement |

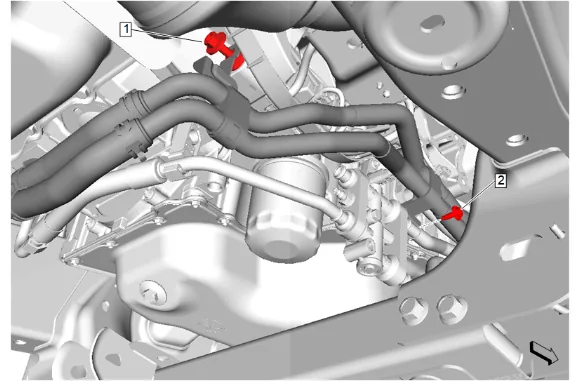

Fastener Specifications (1) — figure 27
Fuel Cooler Coolant Cooler Inlet Hose
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Fuel Heater Inlet and Outlet Nut |
— |
— |
22 Y (16 lb ft) |
Fuel Cooler Coolant Cooler Inlet Hose Replacement |
| 2 |
Fuel Heater Inlet and Outlet Bolt |
— |
— |
9 Y (80 lb in) |
Fuel Cooler Coolant Cooler Inlet Hose Replacement |

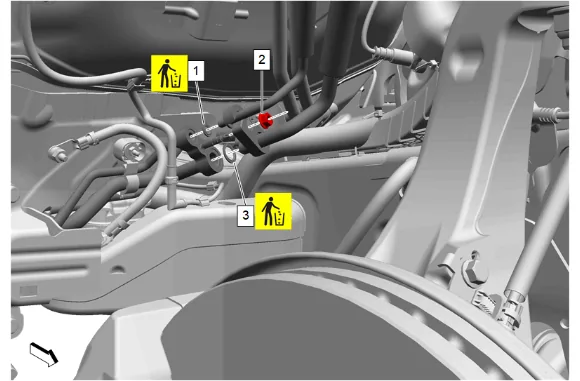

Fastener Specifications (1) — figure 28

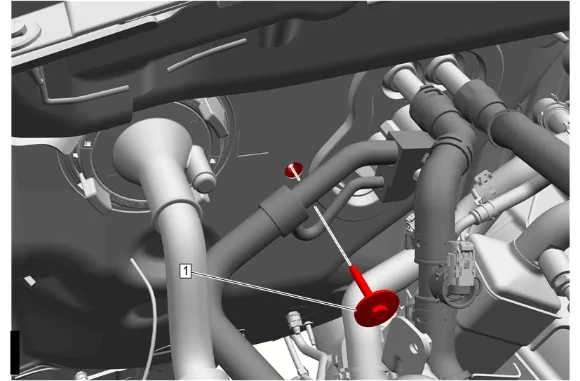

Fuel Cooler Coolant Cooler Inlet Hose
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Fuel Heater Inlet and Outlet Bolt |
— |
— |
22 Y (16 lb ft) |
Fuel Cooler Coolant Cooler Inlet Hose Replacement |

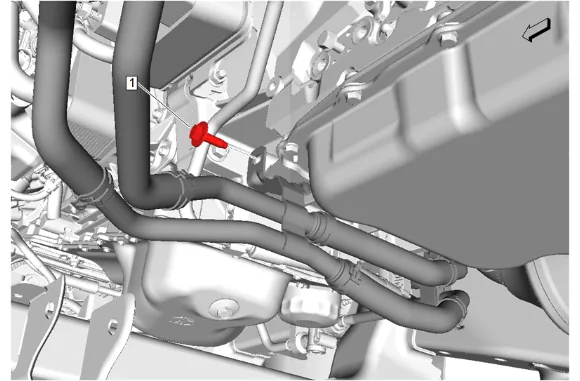

Fastener Specifications (1) — figure 29

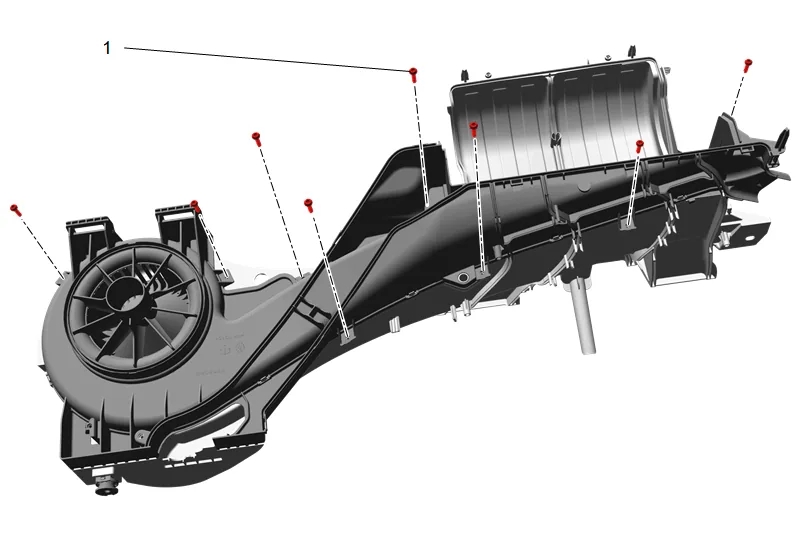

Heater and Air Conditioning Evaporator Case (Distributor)
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Heater and Air Conditioning Evaporator and Blower Module Bolt [5x] |
— |
— |
1.2 Y (11 lb in) |
Heater and Air Conditioning Evaporator Case Replacement |
Fastener Specifications (1) — figure 30
Heater and Air Conditioning Evaporator Case - Upper
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Heater and Air Conditioning Evaporator and Blower Module Bolt [8x] |
— |
— |
1.2 Y (11 lb in) |
Heater and Air Conditioning Evaporator Case Replacement - Upper |
Fastener Specifications (1) — figure 31
Heater and Air Conditioning Evaporator Module
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Heater and Air Conditioning Evaporator and Blower Module Bolt |
— |
— |
9 Y (80 lb in) |
Heater and Air Conditioning Evaporator and Blower Module Removal and Installation |

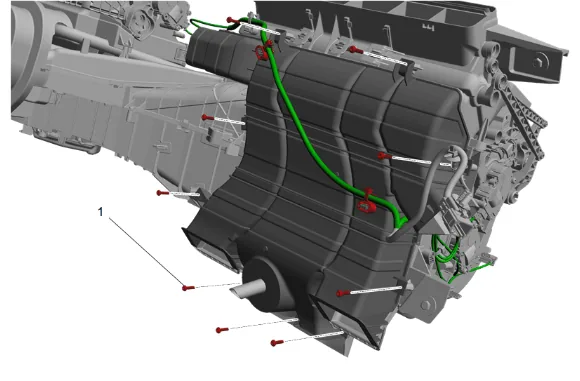

Fastener Specifications (1) — figure 32
Heater and Air Conditioning Evaporator Module Cover
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Heater and Air Conditioning Evaporator and Blower Module Bolt [9x] |
— |
— |
1.2 Y (11 lb in) |
Heater and Air Conditioning Evaporator Module Cover Replacement |
Fastener Specifications (1) — figure 33

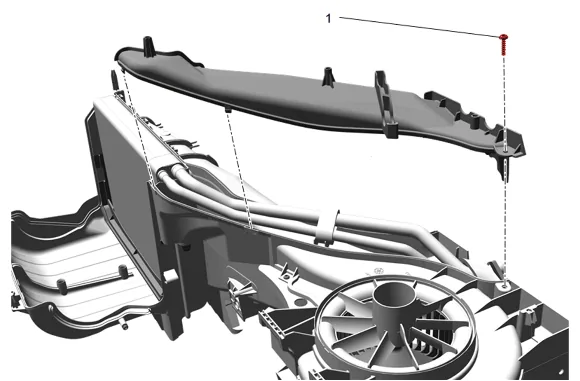

Heater and Air Conditioning Evaporator Module Cover (Evaporator Pipe)
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Heater and Air Conditioning Evaporator and Blower Module Bolt |
— |
— |
1.2 Y (11 lb in) |
Heater and Air Conditioning Evaporator Case Replacement - Upper |
|
|
|
|
|
Heater and Air Conditioning Evaporator Module Cover Replacement |
Fastener Specifications (1) — figure 34
Heater Coolant Pump
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Heater Water Auxiliary Pump Bolt |
— |
— |
9 Y (80 lb in) |
Heater Coolant Pump Replacement |
Fastener Specifications (1) — figure 35
Heater Cover
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Heater and Air Conditioning Evaporator and Blower Module Bolt [3x] |
— |
— |
1.2 Y (11 lb in) |
Heater and Air Conditioning Evaporator Module Cover Replacement |
|
|
|
|
|
Heater Replacement |
Fastener Specifications (1) — figure 36
Instrument Panel HVAC Ducts
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Side Window Defogger Outlet Bolt |
— |
— |
2.5 Y (22 lb in) |
Side Window Defogger Outlet Duct Replacement - Left Side |
|
|
2 |
Side Window Defogger Outlet Bolt |
— |
— |
2.5 Y (22 lb in) |
Side Window Defogger Outlet Duct Replacement - Right Side |
|
|
3 |
Instrument Panel Outer Air Outlet Duct Bolt |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Outer Air Outlet Duct Replacement - Left Side |
|
|
4 |
Instrument Panel Outer Air Outlet Duct Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Outer Air Outlet Duct Replacement - Right Side |
|
|
5 |
Instrument Panel Center Air Outlet Duct Bolt |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Center Air Outlet Duct Replacement - Left Side |
|
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 6 |
Instrument Panel Center Air Outlet Duct Bolt |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Center Air Outlet Duct Replacement - Right Side |
| 7 |
Air Conditioning Evaporator and Blower Module Nut [2x] |
— |
— |
9 Y (80 lb in) |
Air Inlet Deflector Water Deflector Replacement |
Fastener Specifications (1) — figure 37

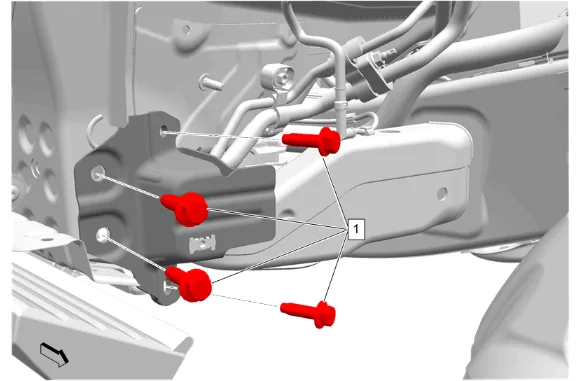

Rocker Inner Panel Front Extension
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Rocker Inner Panel Front Reinforcement Bolt [4x] |
— |
— |
58 Y (43 lb ft) |
Auxiliary Air Conditioning Evaporator Hose Replacement |
Fastener Specifications (1) — figure 38
Thermal Expansion Valve
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Air Conditioning Evaporator Thermal Expansion Valve Bolt [2x] |
— |
— |
7 Y (62 lb in) |
Air Conditioning Evaporator Thermal Expansion Valve Replacement |
|
|
2 |
Air Conditioning Evaporator Seal - Large |
Yes |
— |
— |
Air Conditioning Evaporator Thermal Expansion Valve Replacement |
|
|
3 |
Air Conditioning Evaporator Seal - Small |
Yes |
— |
— |
Air Conditioning Evaporator Thermal Expansion Valve Replacement |
|
|
4 |
Air Conditioning Evaporator Thermal Expansion Valve Stud |
— |
— |
7.4 Y (65 lb in) |
Air Conditioning Evaporator Thermal Expansion Valve Replacement |
|
|
|
|
|
|
|
Air Conditioning Refrigerant Heat Exchanger Replacement |
|
