Rear Seat Belt Guide Trim Cover Replacement

Removal Procedure

Rear Seat Belt Guide Trim Cover Replacement — figure 1

1. Rear Seat Back Cover and Pad (1) » Remove — Rear Seat Back Cover and Pad Removal and Installation

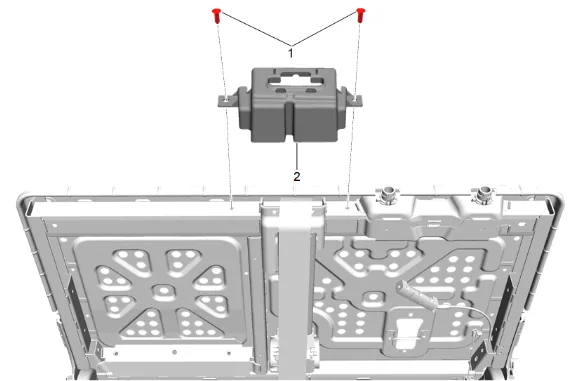

Rear Seat Belt Guide Trim Cover Replacement — figure 2

2. Using a suitable trim tool, release the retainers.

3. Rear Seat Back Opening Finish Cover Retainer (1) » Remove [2x]

4. Rear Seat Belt Guide Trim Cover (2) » Remove

5. Feed the rear seat center belt through the rear seat belt guide trim cover (2). Installation Procedure

6. Feed the rear seat center belt through the rear seat belt guide trim cover (2).

7. Rear Seat Belt Guide Trim Cover (2) » Install

8. Rear Seat Back Opening Finish Cover Retainer (1) » Install [2x]

9. Rear Seat Back Cover and Pad (1) » Install — Rear Seat Back Cover and Pad Removal and Installation
