Front Lower Grille Replacement

Removal Procedure

Front Lower Grille Replacement — figure 1
Front Lower Grille Replacement — figure 1
  1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

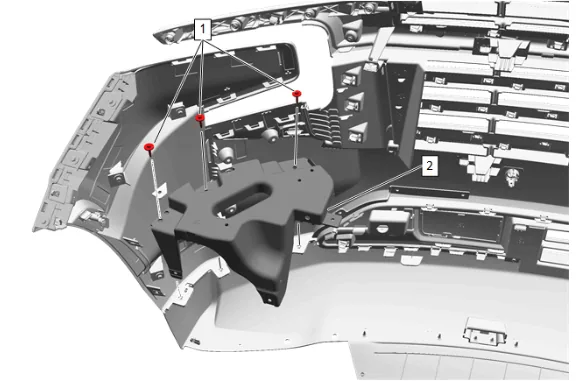

Front Lower Grille Replacement — figure 2
Front Lower Grille Replacement — figure 2
  1. Reposition the wiring harness.
  2. Front Bumper Fascia Reinforcement Bolt (1) » Remove [6x]
  3. Front Bumper Fascia Reinforcement (2) » Remove [2x]

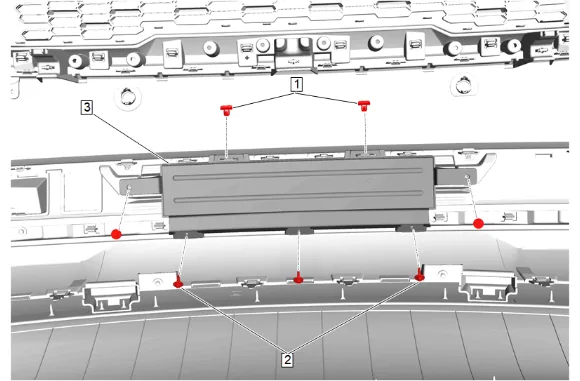

Front Lower Grille Replacement — figure 3
Front Lower Grille Replacement — figure 3
  1. { If equipped } Front Bumper Fascia Lower Bracket Bolt (2) » Remove [5x]
  2. { If equipped } Front Bumper Filler Retainer (1) Remove [2x]
  3. { If equipped } Front Grille Filler (3) » Remove

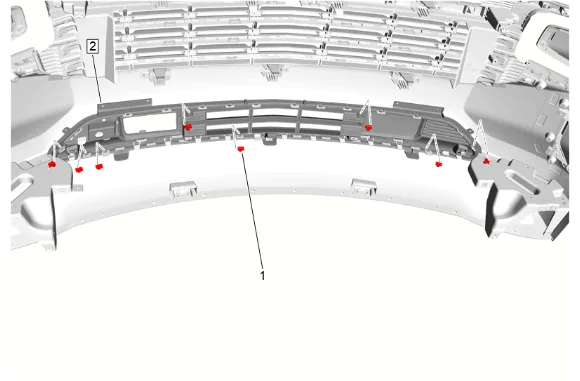

Front Lower Grille Replacement — figure 4
Front Lower Grille Replacement — figure 4

  1. Front Grille Clip (1) » Remove [8x]

  2. Release the retainers.

  3. Front Lower Grille (2) » Remove Installation Procedure

  4. Front Lower Grille (2) » Install

  5. Front Grille Clip (1) » Install [8x]

  6. { If equipped } Front Grille Filler (3) » Install

  7. { If equipped } Front Bumper Filler Retainer (1) Install [2x]

  1. { If equipped } Front Bumper Fascia Bolt (2) » Install and tighten [5x] — Fastener Specifications

  2. Front Bumper Fascia Reinforcement (2) » Install [2x]

  3. Front Bumper Fascia Reinforcement Bolt (1) » Install and tighten [6x] — Fastener Specifications

  4. Install the wiring harness.

  5. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
