Low Frequency Instrument Panel Antenna Replacement

Removal Procedure

Low Frequency Instrument Panel Antenna Replacement — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Instrument Panel Fuse Block Access Hole Cover - Right Side (1) » Remove

Low Frequency Instrument Panel Antenna Replacement — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Instrument Panel Trim Plate Applique - Right Side (1) » Remove

Low Frequency Instrument Panel Antenna Replacement — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Center Trim Plate Applique (1) » Remove

Low Frequency Instrument Panel Antenna Replacement — figure 4

7. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
8. Using a flat-bladed plastic trim tool, release the retaining clips.
9. Disconnect the electrical connector.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

10. Instrument Panel Trim Pad - Right Side (2) » Remove

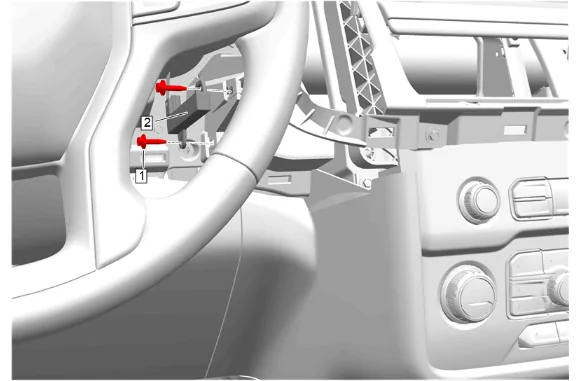

Low Frequency Instrument Panel Antenna Replacement — figure 5

11. Instrument Panel Bolt (1) » Remove [2x]

12. Low Frequency Instrument Panel Antenna (2) » Remove

13. Disconnect the electrical connector. Installation Procedure

14. Connect the electrical connector.

15. Low Frequency Instrument Panel Antenna (2) » Install

Caution

Refer to Fastener Caution.

3. Instrument Panel Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. Connect the electrical connector.

5. Instrument Panel Trim Pad - Right Side (2) » Install

6. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

7. Instrument Panel Center Trim Plate Applique (1) » Install

8. Instrument Panel Trim Plate Applique - Right Side (1) » Install

9. Instrument Panel Fuse Block Access Hole Cover - Right Side (1) » Install
