Front Upper Control Arm Replacement - Left Side (F47)

Special Tools CH-42188–B Ball Joint Separator Equivalent regional tools: Special Tools

Warning

If the air lines need to be removed to perform repairs on any air suspension components, depressurize the Automatic Level Control System. This will prevent vehicle damage or personal injury.

Warning

Do NOT remove Automatic Level Control System components under any circumstances when the system is pressurized. Disconnecting a pressurized air line that is connected to an Automatic Level Control System component can cause damage to components or personal injury. Removal Procedure

1. Place the air system in service mode.
2. Raise the vehicle until the tires are off the ground. Lifting and Jacking the Vehicle
3. Using the scan tool, deflate the air spring that will be serviced.
4. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

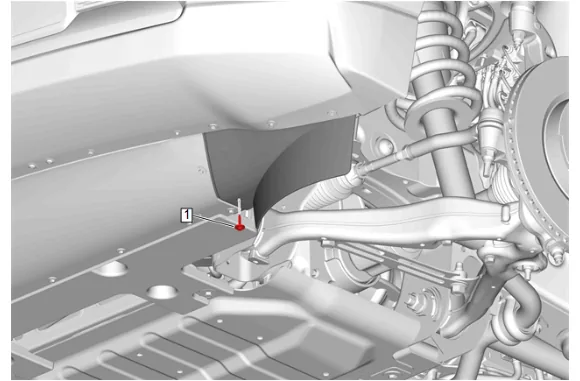

Front Upper Control Arm Replacement - Left Side (F47) — figure 1

5. { If equipped } Front Tire Front Air Deflector Bolt (1) » Remove

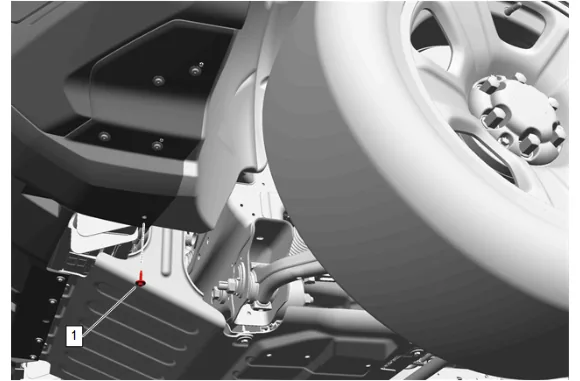

Front Upper Control Arm Replacement - Left Side (F47) — figure 2

6. { If equipped } Front Bumper Fascia Bolt (1) » Remove

Front Upper Control Arm Replacement - Left Side (F47) — figure 3

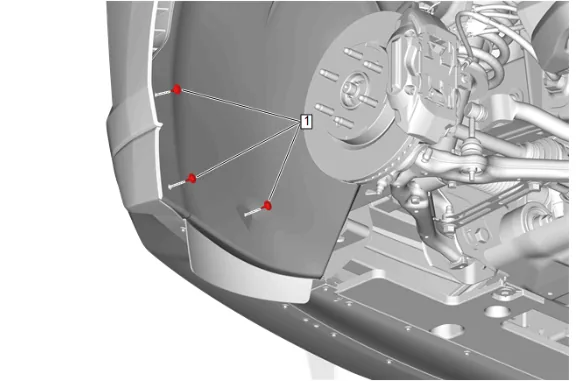

7. Front Wheelhouse Liner Bolt (1) » Remove [3x]

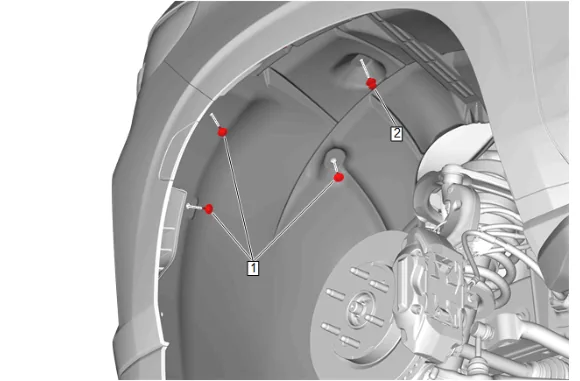

Front Upper Control Arm Replacement - Left Side (F47) — figure 4

Note

Quantity of fasteners may vary based on option content.

8. Front Wheelhouse Liner Bolt (1) » Remove [3x]
9. Front Wheelhouse Liner Retainer (2) » Remove

Front Upper Control Arm Replacement - Left Side (F47) — figure 5

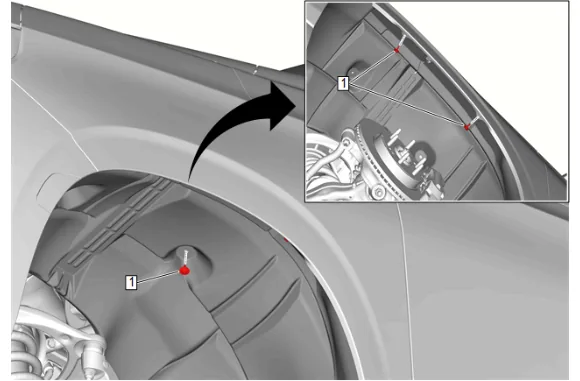

10. Front Wheelhouse Liner Bolt (1) » Remove [3x]

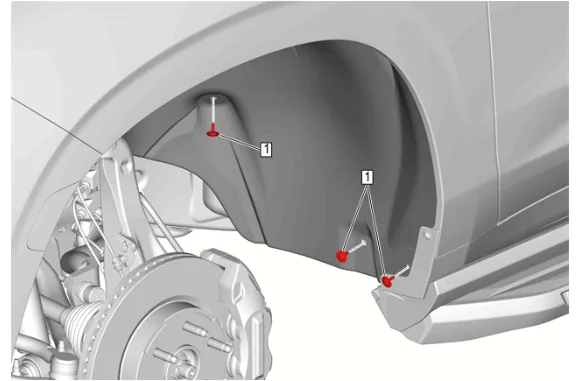

Front Upper Control Arm Replacement - Left Side (F47) — figure 6

11. Front Wheelhouse Liner Bolt (1) » Remove [3x]

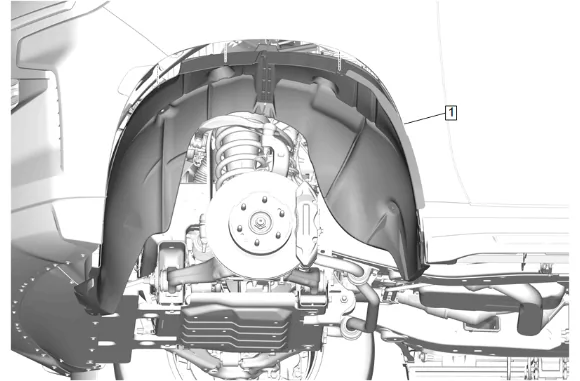

Front Upper Control Arm Replacement - Left Side (F47) — figure 7

12. Front Wheelhouse Liner (1) » Remove

Front Upper Control Arm Replacement - Left Side (F47) — figure 8

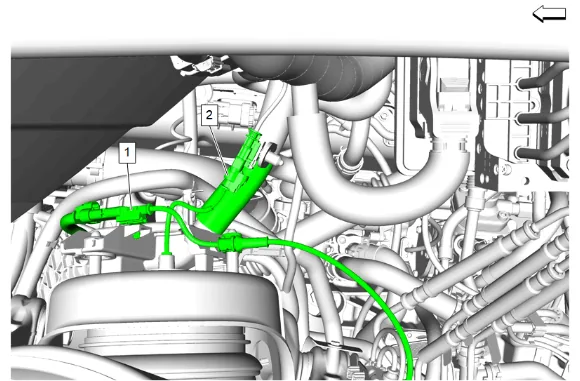

13. Disconnect the electrical connector for the electronic suspension wheel front vertical accelerometer (1) and the front air shock harness electrical connector (2).

Front Upper Control Arm Replacement - Left Side (F47) — figure 9

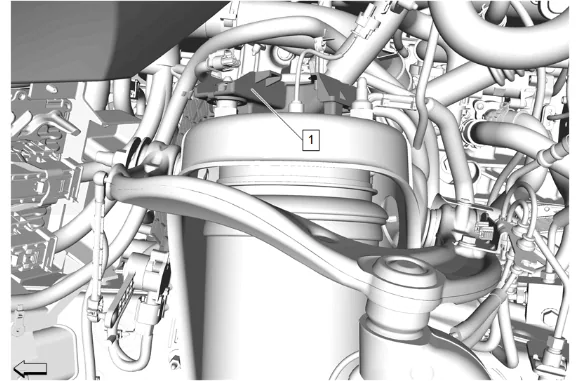

14. Unclip and reposition the chassis wiring harness bracket (1) away from the frame shock tower.

Front Upper Control Arm Replacement - Left Side (F47) — figure 10

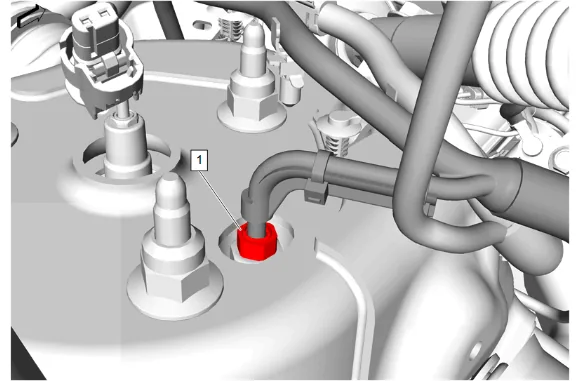

15. Disconnect the air line nut (1) and position the air line aside.

Front Upper Control Arm Replacement - Left Side (F47) — figure 11

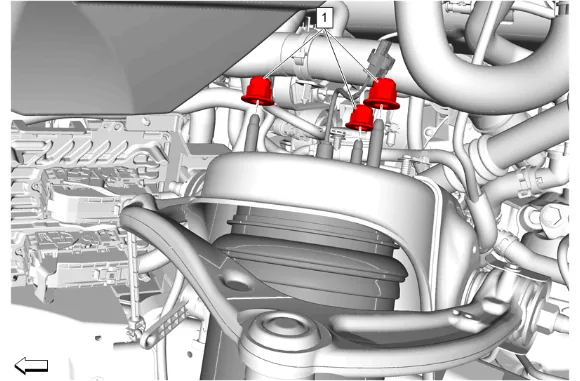

16. Front Shock Absorber Nut (1) » Remove [3x]

Front Upper Control Arm Replacement - Left Side (F47) — figure 12

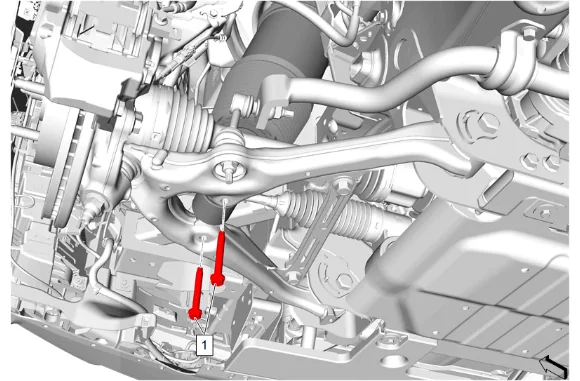

17. Front Shock Absorber Bolt (1) » Remove [2x]

Front Upper Control Arm Replacement - Left Side (F47) — figure 13

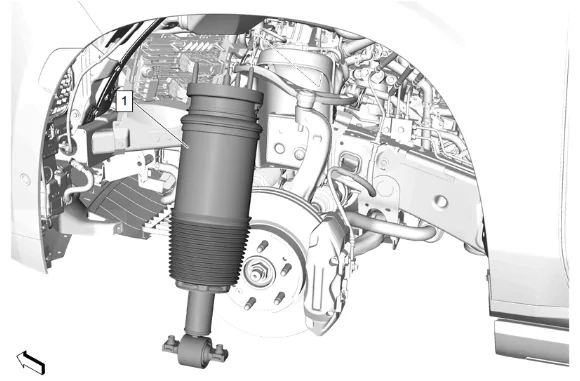

18. Front Shock Absorber (1) » Remove

Front Upper Control Arm Replacement - Left Side (F47) — figure 14

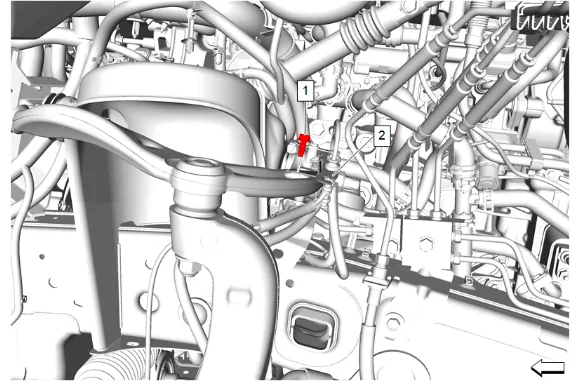

19. Remove the front wheel speed sensor bracket bolt (1) and reposition the front wheel speed sensor bracket (2) away from the front upper control arm.

Front Upper Control Arm Replacement - Left Side (F47) — figure 15

20. Front Brake Hose Bracket Bolt (1) » Remove

Front Upper Control Arm Replacement - Left Side (F47) — figure 16

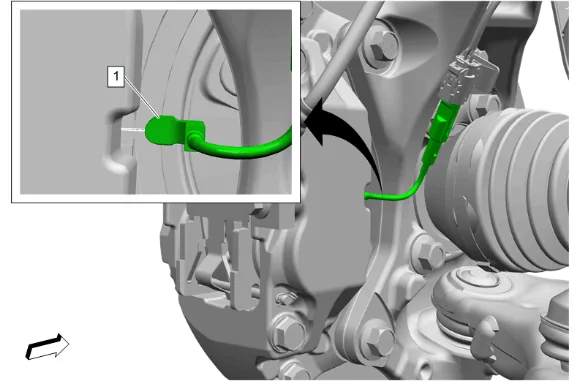

21. { If equipped } Front Disc Brake Pad Wear Sensor (1) @ Front Brake Caliper » Remove

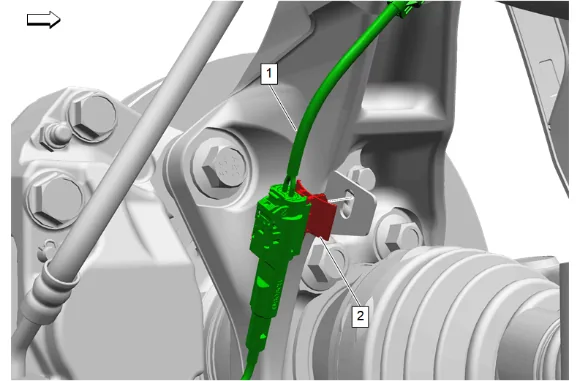

Front Upper Control Arm Replacement - Left Side (F47) — figure 17

22. { If equipped } Front Disc Brake Pad Wear Sensor Retainer (2) » Remove
23. { If equipped } Position the front disc brake pad wear sensor wiring harness (1) out of the way.

Front Upper Control Arm Replacement - Left Side (F47) — figure 18

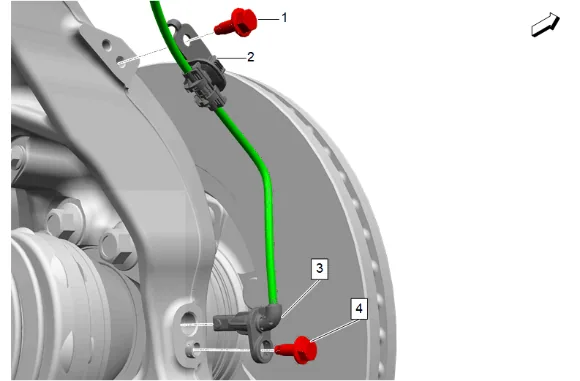

24. Front Wheel Speed Sensor Bolt (4) » Remove
25. Front Wheel Speed Sensor Bracket Bolt (1) » Remove
26. Front Wheel Speed Sensor (3) » Remove
27. Front Wheel Speed Sensor Bracket (2) » Remove

Front Upper Control Arm Replacement - Left Side (F47) — figure 19

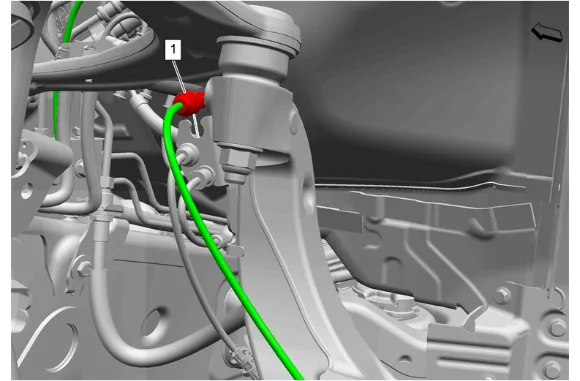

28. Front Wheel Speed Sensor Wiring Harness (1) @ Wiring Harness Bracket » Remove

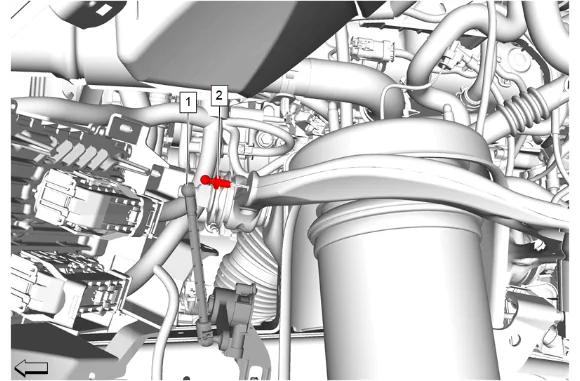

Front Upper Control Arm Replacement - Left Side (F47) — figure 20

29. Disconnect the front suspension automatic forward lighting position sensor (1) from the electronic suspension front position sensor link ball stud (2).
30. Electronic Suspension Front Position Sensor Link Ball Stud (2) » Remove

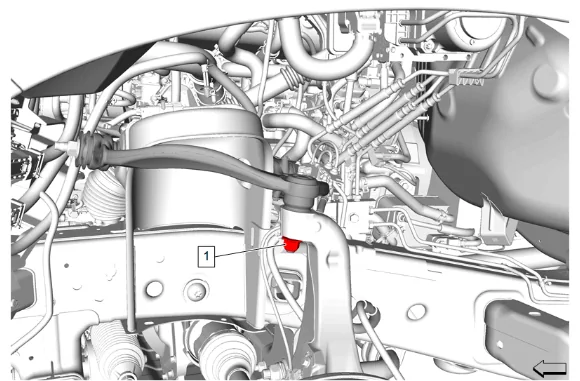

Front Upper Control Arm Replacement - Left Side (F47) — figure 21

Note

Using a jack stand support the lower control arm to prevent over-articulation of the front lower control arm ball joint.

31. Front Upper Control Arm Ball Stud Nut (1) » Loosen

Front Upper Control Arm Replacement - Left Side (F47) — figure 22

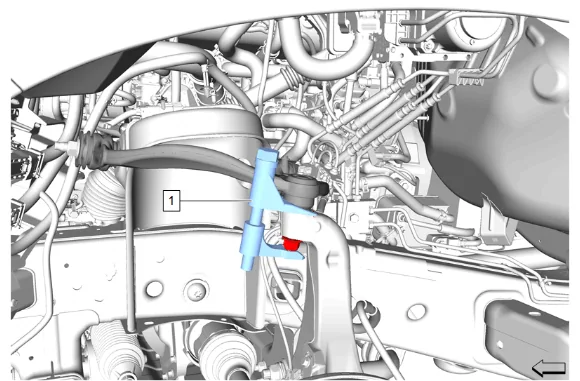

32. Using the CH-42188–B Ball Joint Separator(1) , separate the left front upper control arm (2) from the steering knuckle.
33. Remove the CH-42188–B Ball Joint Separator(1) from the left front upper control arm (2) and the steering knuckle.

Front Upper Control Arm Replacement - Left Side (F47) — figure 23

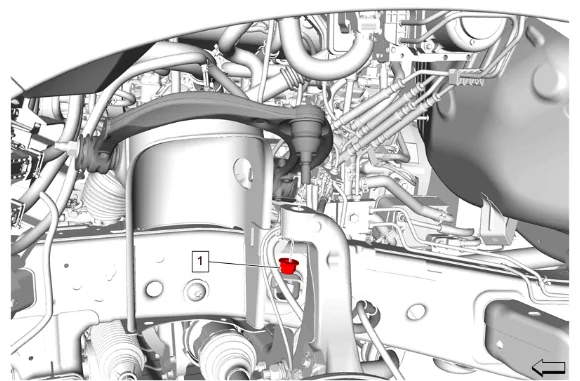

34. Front Upper Control Arm Ball Stud Nut (1) » Remove

Front Upper Control Arm Replacement - Left Side (F47) — figure 24

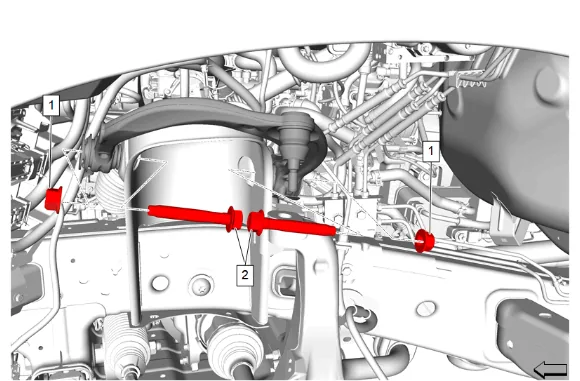

35. Front Upper Control Arm Nut (1) » Remove [2x]
36. Front Upper Control Arm Bolt (2) » Remove [2x]

Front Upper Control Arm Replacement - Left Side (F47) — figure 25

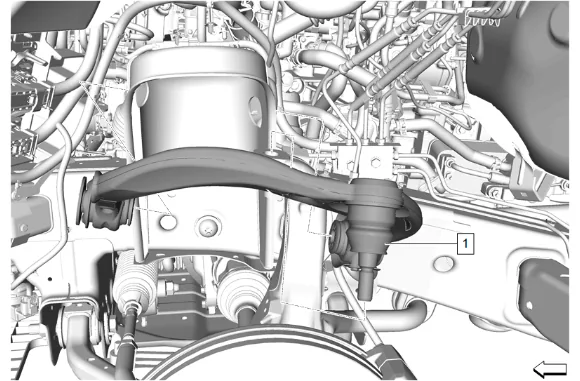

37. Front Upper Control Arm - Left Side (1) » Remove Installation Procedure

38. Front Upper Control Arm - Left Side (1) » Install

39. Front Upper Control Arm Bolt (2) » Install [2x]

Caution

Refer to Fastener Caution.

3. Front Upper Control Arm Nut (1) » Install and tighten [2x] — Fastener Specifications

4. Front Upper Control Arm Ball Stud Nut (1) » Install and tighten — Fastener Specifications

5. Electronic Suspension Front Position Sensor Link Ball Stud (2) » Install and tighten — Fastener Specifications

6. Connect the front suspension automatic forward lighting position sensor (1) to the electronic suspension front position sensor link ball stud (2).

7. Reposition and install the front wheel speed sensor bracket (2).

8. Front Wheel Speed Sensor Bracket Bolt (1) » Install and tighten — Fastener Specifications

9. Front Wheel Speed Sensor Wiring Harness (1) @ Wiring Harness Bracket » Install

10. Front Wheel Speed Sensor Bracket (2) » Install

11. Front Wheel Speed Sensor Bracket Bolt (1) » Install and tighten — Fastener Specifications

12. Front Wheel Speed Sensor (3) » Install

13. Front Wheel Speed Sensor Bolt (4) » Install and tighten — Fastener Specifications

14. { If equipped } Position the front disc brake pad wear sensor wiring harness (1) into place.

15. { If equipped } Front Disc Brake Pad Wear Sensor Retainer (2) » Install

16. { If equipped } Front Disc Brake Pad Wear Sensor (1) @ Front Brake Caliper » Install

17. Front Brake Hose Bracket Bolt (1) » Install and tighten — Fastener Specifications

Note

Prior to installing the front shock absorber, you MUST apply anti-corrosion wax to the frame shock tower.

18. Apply anti-corrosion wax to the frame shock tower. Anti-Corrosion Treatment and Repair
19. Support the front shock absorber using a suitable jack stand.

Front Upper Control Arm Replacement - Left Side (F47) — figure 26

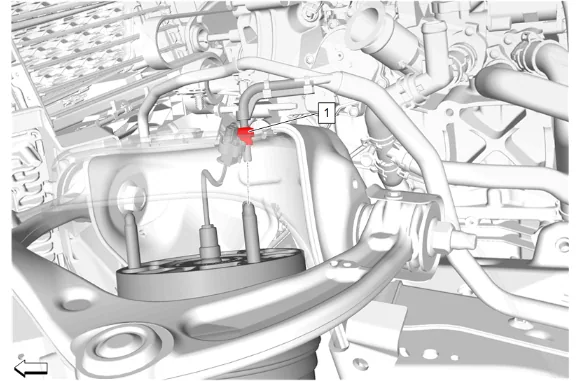

20. Reposition the air line, then install and tighten the air line nut (1). Fastener Specifications

21. Front Shock Absorber (1) » Install

22. Front Shock Absorber Nut (1) » Install and tighten [3x] — Fastener Specifications

23. Front Shock Absorber Bolt (1) » Install and tighten [2x] — Fastener Specifications

24. Reposition and install the chassis wiring harness bracket (1) to the frame shock tower.

25. Connect the electrical connector for the electronic suspension wheel front vertical accelerometer (1) and the front air shock harness electrical connector (2).

26. Front Wheelhouse Liner » Install

27. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

28. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

Note

Quantity of fasteners may vary based on option content.

29. Front Wheelhouse Liner Retainer (2) » Install

30. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

31. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

32. { If equipped } Front Bumper Fascia Bolt (1) » Install and tighten — Fastener Specifications

33. { If equipped } Front Tire Front Air Deflector Bolt (1) » Install and tighten — Fastener Specifications

34. Install the tire and wheel assembly. Tire and Wheel Removal and Installation

35. Remove the support and lower the vehicle.

36. Turn service mode off.

37. With the vehicle off the hoist and on flat level ground, use the scan tool to reset trim heights. Trim Height Inspection
