Front Seat Adjuster Memory Switch Replacement

Removal Procedure

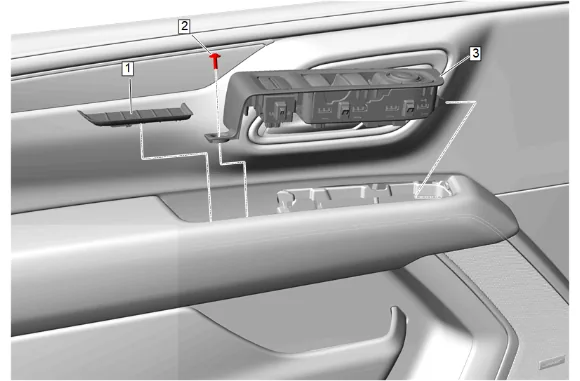

Front Seat Adjuster Memory Switch Replacement — figure 1

1. Front Side Door Armrest Pull Cup Bolt Cap (1) » Remove
2. Front Side Door Trim Bolt (2) » Remove
3. Using a suitable plastic trim tool, start at the rear of the front side door accessory switch mount plate (3) and pry upwards to release from the front side door trim.
4. Rotate the front side door accessory switch mount plate (3) up and rearward to unhook the front retaining feature.
5. Disconnect the electrical connectors.
6. Front Side Door Accessory Switch Mount Plate - Driver Side (3) » Remove

Front Seat Adjuster Memory Switch Replacement — figure 2

7. Using a suitable plastic trim tool, release the front seat adjuster memory switch (1) tabs along each side of the front side door accessory switch mount plate.

8. Front Seat Adjuster Memory Switch (1) » Remove Installation Procedure

9. Front Seat Adjuster Memory Switch (1) » Install

10. Connect the electrical connectors.

11. Rotate the front side door accessory switch mount plate (3) up and forward to hook the front retaining feature.

12. Front Side Door Accessory Switch Mount Plate - Driver Side (3) » Install

Caution

Refer to Fastener Caution.

5. Front Side Door Trim Bolt (2) » Install and tighten — Fastener Specifications
6. Front Side Door Armrest Pull Cup Bolt Cap (1) » Install
