Airbag Front Passenger Presence Module Replacement

Warning

To avoid personal injury, perform a passenger presence sensor rezeroing/ learn on the passenger presence system whenever you remove or replace the seat cushion trim. Failure to do so may cause the system to malfunction.

Warning

The passenger seat cushion assembly is serviced in a kit with the airbag front passenger presence module, cushion pad (and if equipped, heat mat, vent mat, vent mat support, comfort pads). All components in the service kit are assembled and calibrated as a unit and must be replaced as a complete assembly to prevent possible injury to the occupant. Using only some of the components in the service kit will cause the passenger presence system to operate improperly. Removal Procedure

Airbag Front Passenger Presence Module Replacement — figure 1

1. Front Seat Cushion Cover and Pad (1) » Remove — Front Seat Cushion Cover and Pad Removal and Installation

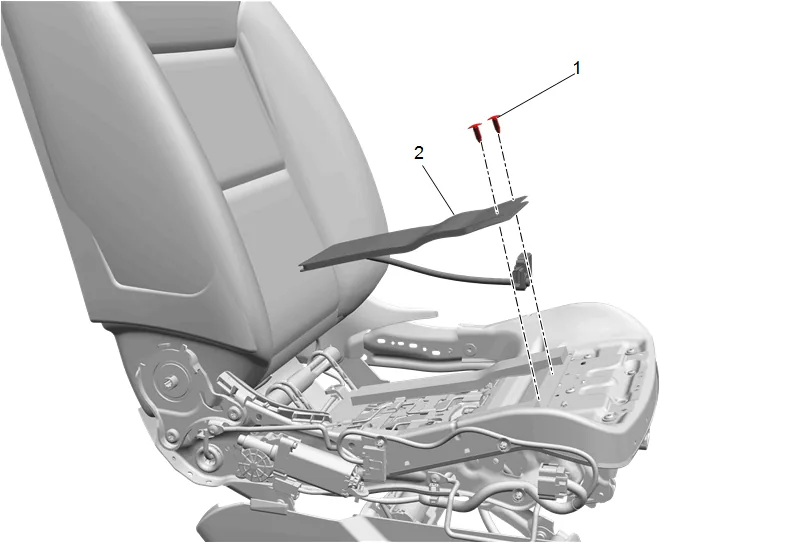

Airbag Front Passenger Presence Module Replacement — figure 2

2. Disconnect the electrical connector.
3. Remove the airbag front passenger presence module sensor from the bracket.
4. Airbag Front Passenger Presence Module Retainer (1) » Remove [2x]
5. Airbag Front Passenger Presence Module (2) » Remove

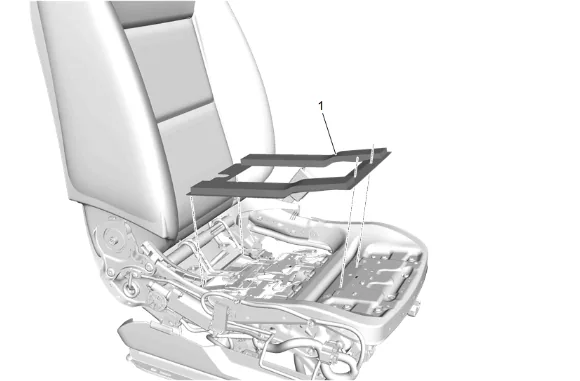

Airbag Front Passenger Presence Module Replacement — figure 3

6. Front Seat Cushion Pad Front Support (1) » Remove Installation Procedure

7. Front Seat Cushion Pad Front Support (1) » Install

8. Airbag Front Passenger Presence Module (2) » Install

9. Airbag Front Passenger Presence Module Retainer (1) » Install [2x]

10. Install the airbag front passenger presence module sensor onto the bracket.

11. Connect the electrical connector.

12. Front Seat Cushion Cover and Pad (1) » Install — Front Seat Cushion Cover and Pad Removal and Installation

Note

The Regulatory Name for this component because of SAE J1930 is Restraints Occupant Classification System Module.

7. Perform the necessary programming and setup procedure: Control Module References
