Underbody Skid Shield Replacement (With RC1)

Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

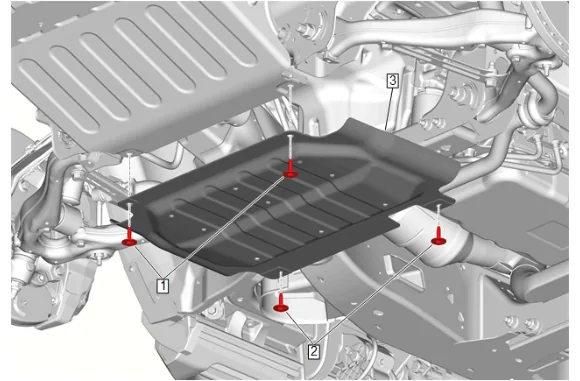

Underbody Skid Shield Replacement (With RC1) — figure 1

Note

The proper position of the underbody skid shield is between the underbody splash shield and the front frame.

2. Underbody Skid Shield Bolt (1) » Remove [2x]
3. Underbody Splash Shield Bolt (2) » Remove [2x]
4. Underbody Skid Shield (3) » Remove Installation Procedure

Note

The proper position of the underbody skid shield is between the underbody splash shield and the front frame.

1. Underbody Skid Shield (3) » Install

Caution

Refer to Fastener Caution.

2. Underbody Splash Shield Bolt (2) » Install and tighten [2x] — Fastener Specifications
3. Underbody Skid Shield Bolt (1) » Install and tighten [2x] — Fastener Specifications
4. Lower the vehicle.
