Special Tools (Mechanical)

Engine Controls and Fuel - 3.0L LM2 Diesel | Special Tools and Equipment | Document ID: 5192625 Illustration Tool Number/ Description

Special Tools (Mechanical) — figure 1

CH-41769 Fuel Line Disconnect Tool

Special Tools (Mechanical) — figure 2

CH-44581 Fuel Line Disconnect Tool

Special Tools (Mechanical) — figure 3

CH-45722 Fuel Sender Lock Ring Wrench

Special Tools (Mechanical) — figure 4

DT-35910 Drive Axle Seal Clamp Pliers EN-45059

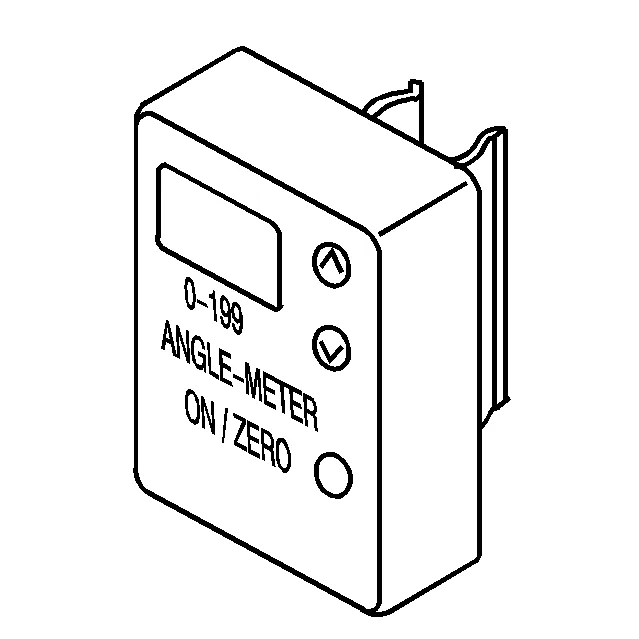

Special Tools (Mechanical) — figure 5

EN 45059 Illustration Tool Number/ Description Angle Meter

Special Tools (Mechanical) — figure 6

EN-47909 Injector Bore and Sleeve Cleaning Kit

Special Tools (Mechanical) — figure 7

EN-48389 Glow Plug Remover

Special Tools (Mechanical) — figure 8

EN-51146–1–3 Sliding Hammer

Illustration	Tool Number/ Description
	EN-52074 Glow Plug Bore Reamer
	EN-52448 High Pressure Fuel Pump Tool
	EN-52451 Fuel Injector Remover

Special Tools (Mechanical) — figure 9

Special Tools (Mechanical) — figure 10

Special Tools (Mechanical) — figure 11
