Accelerator Pedal Replacement (1)

Accelerator Pedal Replacement Removal Procedure

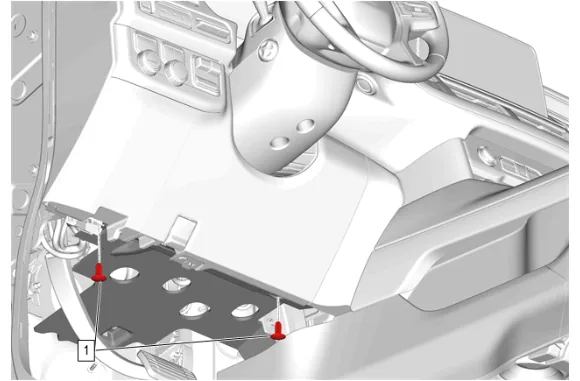

Accelerator Pedal Replacement (1) — figure 1

1. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

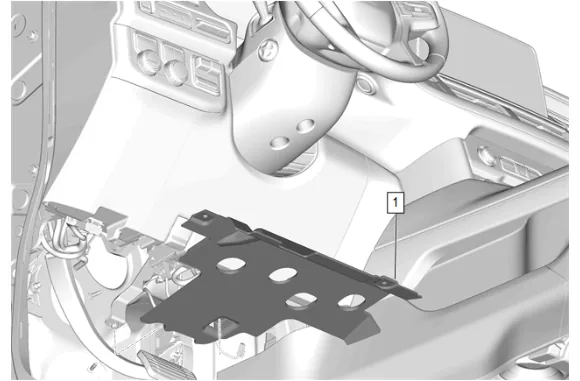

Accelerator Pedal Replacement (1) — figure 2

2. Instrument Panel Lower Trim Panel Insulator (1) » Remove

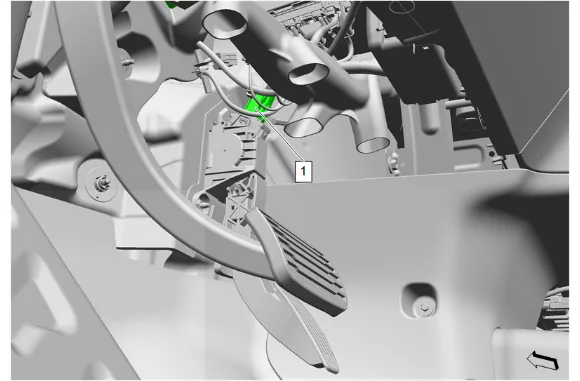

Accelerator Pedal Replacement (1) — figure 3

3. Disconnect the accelerator pedal electrical connector  (1).

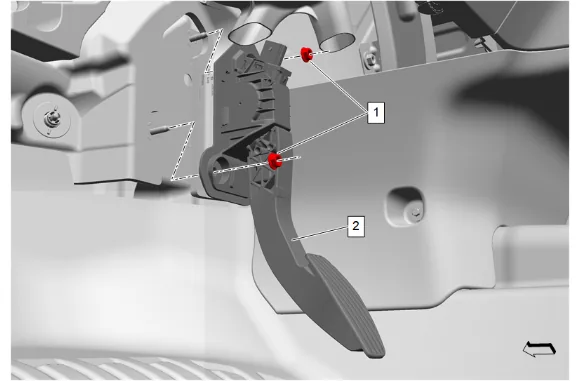

Accelerator Pedal Replacement (1) — figure 4

4. Accelerator Pedal Nut (1) » Remove [2x]
5. Accelerator Pedal (2) » Remove Installation Procedure

Caution

When installing the Accelerator Pedal do NOT use a mallet or excessive force on the pedal assembly or damage to the pedal assembly could occur, requiring replacement of the pedal assembly.

1. Accelerator Pedal (2) » Install

Caution

Refer to Fastener Caution.

2. Accelerator Pedal Nut (1) » Install and tighten [2x] — Fastener Specifications

3. Connect the accelerator pedal electrical connector  (1).

4. Instrument Panel Lower Trim Panel Insulator (1) » Install

5. Instrument Panel Lower Insulator Retainer (1) » Install [2x]
