Rear Seat Head Restraint Guide Bezel Replacement (60 Percent)

Rear Seat Head Restraint Guide Bezel Replacement (60 Percent) Removal Procedure

Rear Seat Head Restraint Guide Bezel Replacement (60 Percent) — figure 1

1. Reposition the seat as necessary.
2. Using a suitable plastic trim tool, release the two rear seat anchor plate bezel plastic retainers.
3. Rear Seat Anchor Plate Bezel (1) » Remove

Rear Seat Head Restraint Guide Bezel Replacement (60 Percent) — figure 2

Note

Some components not shown for graphic clarity.

4. Unzip the left and right rear seat back cover zippers.
5. Reposition the rear seat back cover, pad, J-channel retainers, and retainers as necessary.
6. Using a suitable flat-bladed tool, open the rear seat head restraint cable cover (1).
7. Release the rear seat head restraint cable (2).

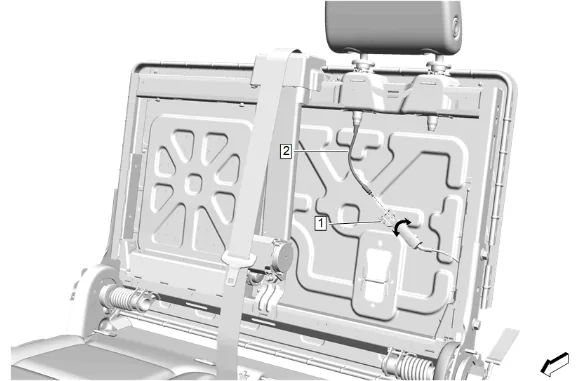

Rear Seat Head Restraint Guide Bezel Replacement (60 Percent) — figure 3

8. Twist the rear seat head restraint guide bezels (1) counter clockwise while lifting the bezels upward onto the head restraint adjuster rod.

9. Using a suitable pointed or flat bladed tool, push the rear seat head restraint guide clip (2) rearward while pulling upward on the rear seat head restraint (3).

10. Rear Seat Head Restraint (3) » Remove

11. Rear Seat Head Restraint Guide Bezel (1) » Remove [2x] Installation Procedure

12. Rear Seat Head Restraint Guide Bezel (1) » Install [2x]

13. Rear Seat Head Restraint (3) » Install

14. Install the rear seat head restraint cable (2).

15. Close the rear seat head restraint cable cover (1).

16. Position the rear seat back cover, pad, J-channel retainers, and retainers to the original location.

17. Zip the left and right rear seat back cover zippers.

18. Rear Seat Anchor Plate Bezel (1) » Install

19. Return the seat to its original position.
