Radio Front Speaker Replacement - Right Side

Warning

Refer to SIR Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced. Removal Procedure

1. Disable the SIR system. SIR Disabling and Enabling

Radio Front Speaker Replacement - Right Side — figure 1

2. Reposition the weatherstrip as necessary.

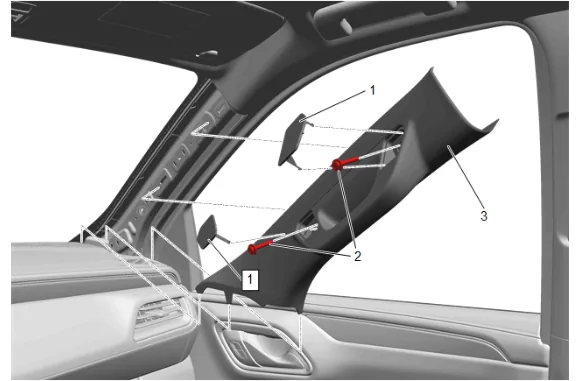

3. Windshield Pillar Assist Handle Cover (1) » Remove [2x]
4. Windshield Pillar Assist Handle Bolt (2) » Remove [2x]
5. Windshield Garnish Molding (3) » Remove

Radio Front Speaker Replacement - Right Side — figure 2

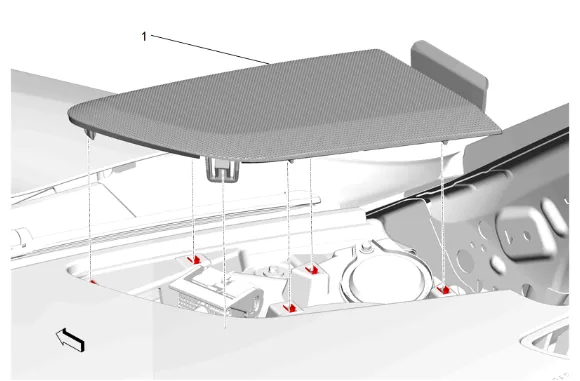

6. Using a flat-bladed plastic trim tool, release the retaining clips.
7. Radio Front Speaker Grille (1) » Remove

Radio Front Speaker Replacement - Right Side — figure 3

8. Radio Front Speaker Bolt (1) » Remove [2x]

9. Radio Front Speaker (2) » Remove

10. Disconnect the electrical connector. Installation Procedure

11. Connect the electrical connector.

12. Radio Front Speaker (2) » Install

Caution

Refer to Fastener Caution.

3. Radio Front Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. Radio Front Speaker Grille (1) » Install

5. Windshield Garnish Molding (3) » Install

6. Windshield Pillar Assist Handle Bolt (2) » Install and tighten [2x] — Fastener Specifications

7. Windshield Pillar Assist Handle Cover (1) » Install [2x]

8. Reposition the weatherstrip as necessary.

9. Enable the SIR System. SIR Disabling and Enabling
