Tahoe / Yukon Service Manual

Rear Fascia Lower Signal Lamp Replacement

Removal Procedure

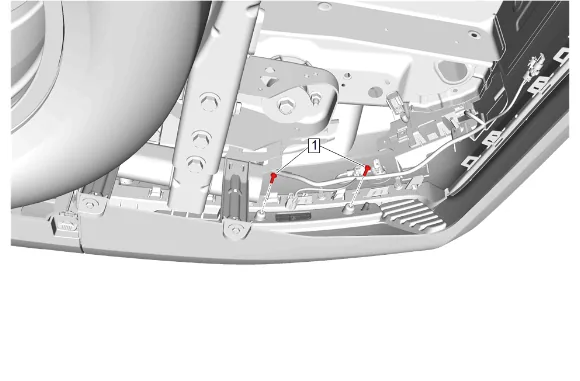

Rear Fascia Lower Signal Lamp Replacement — figure 1
Rear Fascia Lower Signal Lamp Replacement — figure 1
  1. { If equipped } Disconnect the electrical connector.
  2. Rear Fascia Signal Lamp Bolt (1) » Remove [2x]
Rear Fascia Lower Signal Lamp Replacement — figure 2
Rear Fascia Lower Signal Lamp Replacement — figure 2

  1. Rear Fascia Lower Signal Lamp (1) » Remove Installation Procedure

  2. Rear Fascia Lower Signal Lamp (1) » Install

  1. Rear Fascia Signal Lamp Bolt (1) » Install and tighten [2x] — Fastener Specifications
  2. { If equipped } Connect the electrical connector.
