Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87)

Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

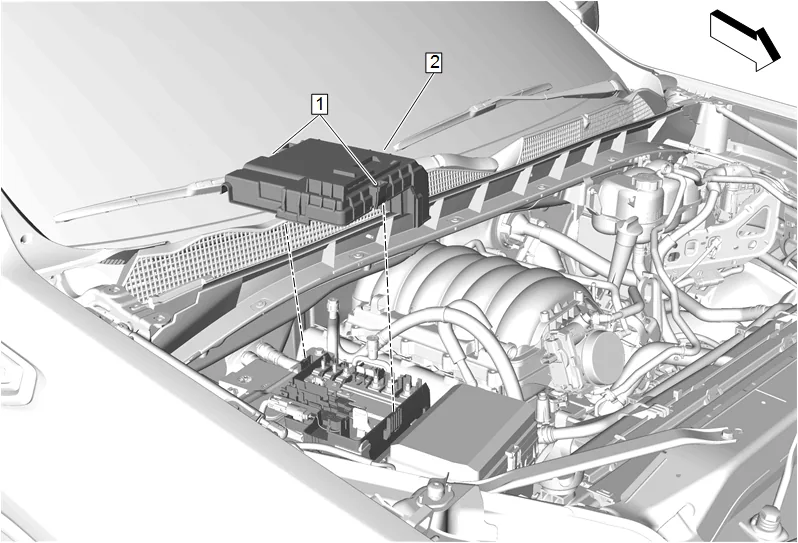

Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) — figure 1

2. Retaining Tab (1) » Disengage [2x]
3. Front Compartment Fuse Block Cover (2) » Remove

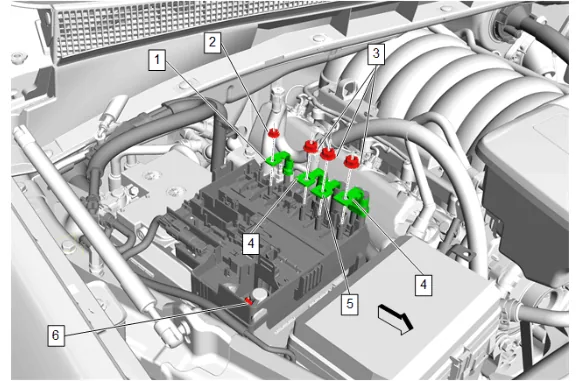

Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) — figure 2

4. Battery Positive Cable Nut (3) » Remove [3x]
5. Starter Solenoid Cable (4) » Remove [2x]
6. Power Steering Wiring Harness (5) » Remove
7. Battery Positive Post Clamp Nut (6) » Loosen

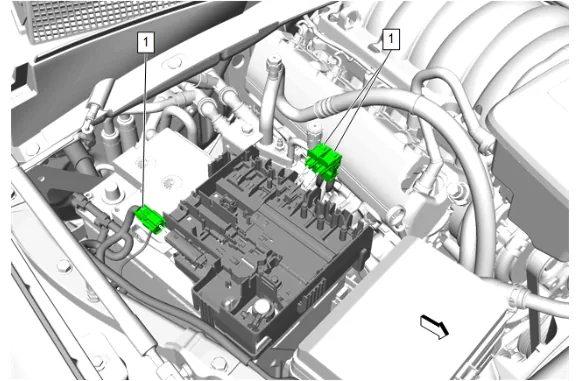

Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) — figure 3

8. Electrical Connector (1) » Disconnect [3x]

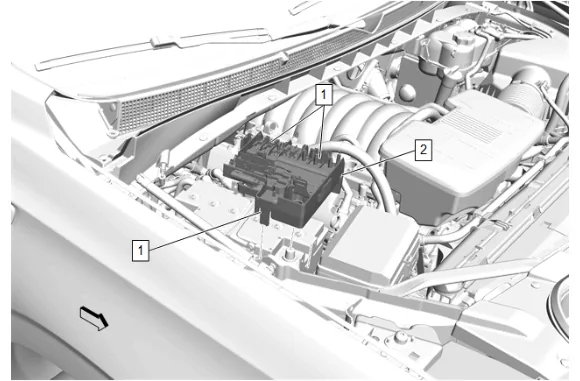

Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) — figure 4

9. Retaining Tab (1) » Disengage [3x]

10. Battery Distribution Engine Compartment Fuse Block (2) » Remove Installation Procedure

11. Battery Distribution Engine Compartment Fuse Block (2) » Install

12. Retaining Tab (1) » Engage [3x]

Caution

Refer to Fastener Caution

3. Battery Positive Post Clamp Nut (6) » Tighten — Fastener Specifications

4. Starter Solenoid Cable (4) » Install [2x]

5. Power Steering Wiring Harness (5) » Install

6. Battery Positive Cable Nut (3) » Install and tighten [3x] — Fastener Specifications

7. Electrical Connector (1) » Connect [3x]

8. Front Compartment Fuse Block Cover (2) » Install

9. Retaining Tab (1) » Engage [2x]

10. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
