Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37)

Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37) Removal Procedure

  1. Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.
Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37) — figure 1
Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37) — figure 1

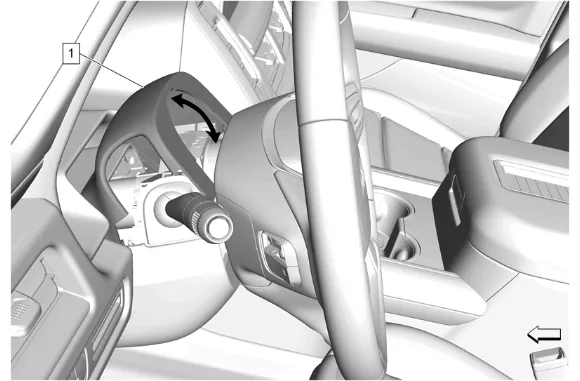

  1. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover and reposition.
Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37) — figure 2
Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37) — figure 2

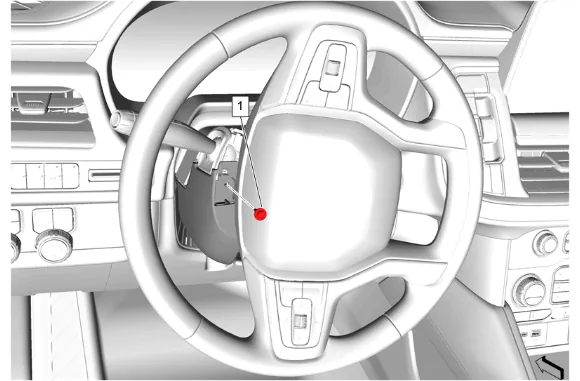

  1. Turn the steering wheel approximately 90 degrees to the left of the centered position.
  2. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove
Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37) — figure 3
Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37) — figure 3

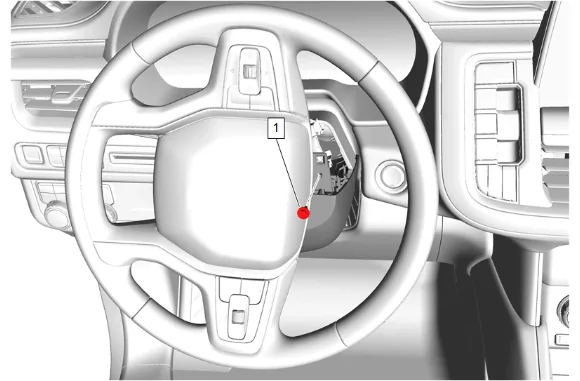

  1. Turn the steering wheel approximately 90 degrees to the right of the centered position.
  2. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove
  3. Turn the steering wheel to the centered position.
Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37) — figure 4
Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37) — figure 4

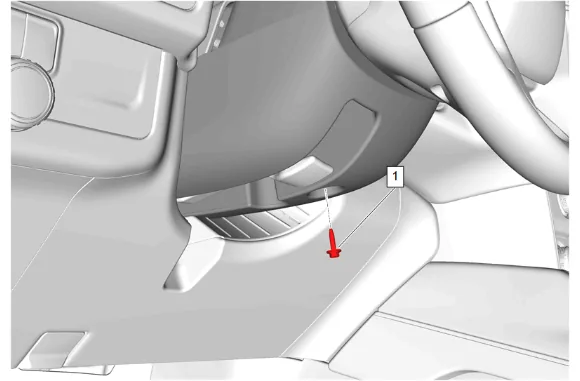

  1. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove
Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37) — figure 5
Instrument Panel Steering Column Lower Trim Cover Replacement (N33, N37) — figure 5

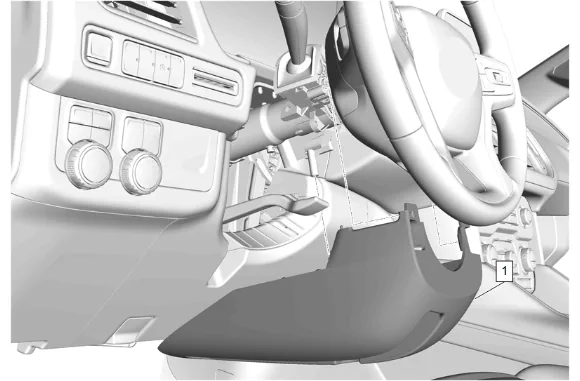

  1. Instrument Panel Steering Column Lower Trim Cover (1) » Remove Installation Procedure

  1. Instrument Panel Steering Column Lower Trim Cover (1) » Install

  2. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

  3. Turn the steering wheel approximately 90 degrees to the right of the centered position.

  4. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

  5. Turn the steering wheel approximately 90 degrees to the left of the centered position.

  6. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

  7. Turn the steering wheel to the centered position.

  8. Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
