Tahoe / Yukon Service Manual

Throttle Body Assembly Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5515739 Single Use Fasteners and Components Throttle Body Gasket Removal Procedure

Throttle Body Assembly Replacement — figure 1
Throttle Body Assembly Replacement — figure 1

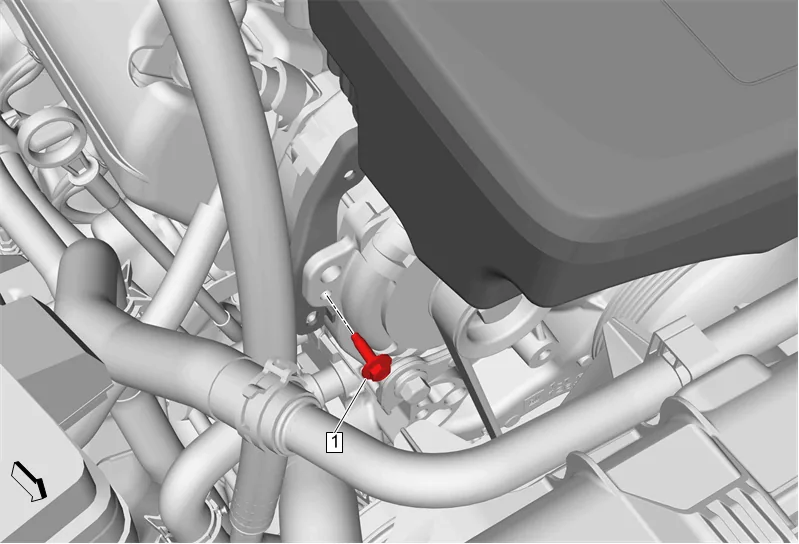

  1. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
  2. Remove engine wiring harness from air cleaner outlet duct bracket.
Throttle Body Assembly Replacement — figure 2
Throttle Body Assembly Replacement — figure 2

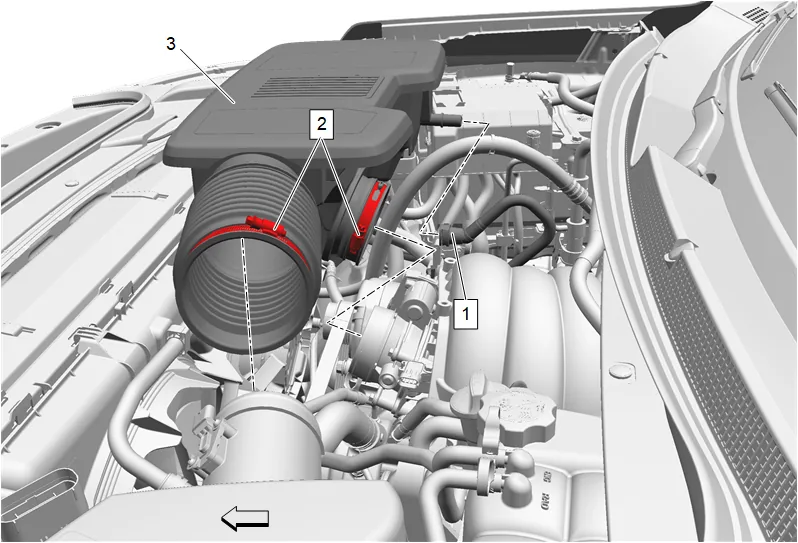

  1. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
  2. Air Cleaner Outlet Duct Clamp (2) » Remove [2x]
  3. Air Cleaner Outlet Duct (3) » Remove
Throttle Body Assembly Replacement — figure 3
Throttle Body Assembly Replacement — figure 3

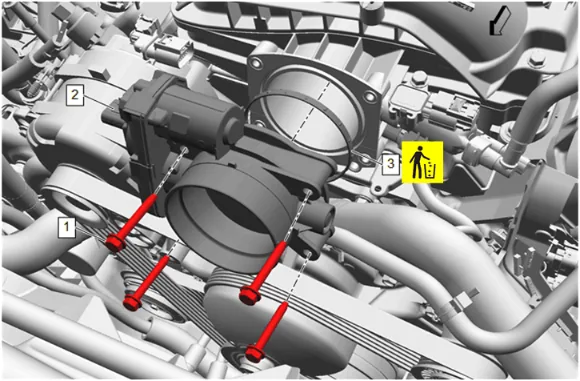

  1. Disconnect the throttle body electrical connector.

  2. Throttle Body Bolt (1) » Remove [4x]

  3. Throttle Body (2) » Remove

  4. Throttle Body Gasket (3) » Remove and DISCARD Installation Procedure

  5. Throttle Body Gasket (3) » Install NEW

  6. Throttle Body (2) » Install

  1. Throttle Body Bolt (1) » Install and tighten [4x] — Fastener Specifications

  2. Connect the throttle body electrical connector.

  3. Air Cleaner Outlet Duct (3) » Install

  4. Air Cleaner Outlet Duct Clamp (2) » Install and tighten [2x] — Fastener Specifications

  5. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

  6. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

  7. Install engine wiring harness to the air cleaner outlet duct bracket.
