Transmission Housing Sound Insulator Replacement (2WD)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - On Vehicle | Document ID: 5788656 Transmission Housing Sound Insulator Replacement (2WD) Single Use Fasteners and Components Exhaust System Seal - Left Side Exhaust System Seal - Right Side Transmission Fluid Cooler Seal Special Tools DT-21366 Converter Holding Strap Equivalent regional tools: Special Tools Removal Procedure

1. Transmission » Remove — Automatic Transmission Removal and Installation

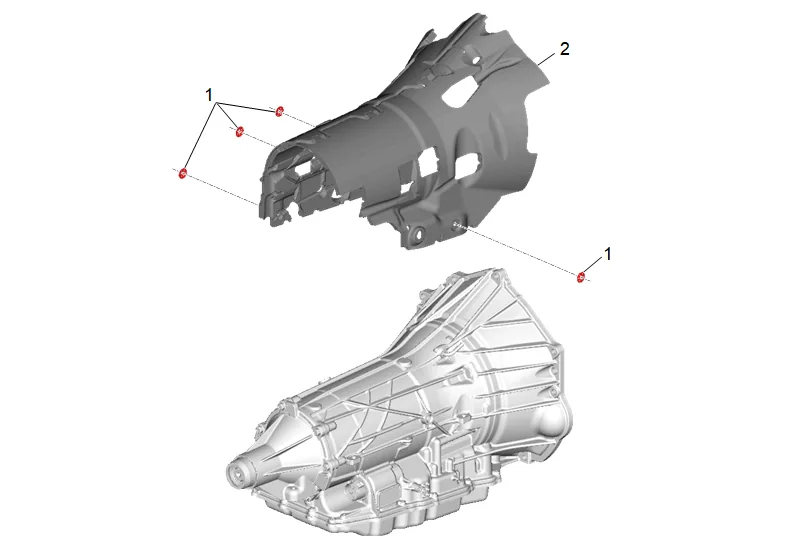

Transmission Housing Sound Insulator Replacement (2WD) — figure 1

2. Transmission Nut (1) » Remove [4x]
3. Transmission Housing Sound Insulator (2) » Remove Installation Procedure

Transmission Housing Sound Insulator Replacement (2WD) — figure 2

1. Transmission Housing Sound Insulator (1) » Install
2. Transmission Nut (2) » Install [4x]

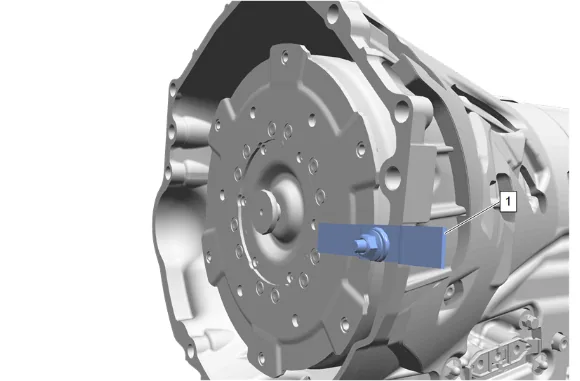

Transmission Housing Sound Insulator Replacement (2WD) — figure 3

Warning

The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage.

3. If removed, install the DT-21366 Converter Holding Strap (1) onto the transmission bell housing to retain the torque converter.
4. Transmission » Install — Automatic Transmission Removal and Installation
