Generator Replacement (L84, L87)

Single Use Fasteners and Components Accessory Drive Primary Belt Special Tools EN-51767-2 Universal Stretchy Belt Installer Equivalent regional tools: Special Tools Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

Generator Replacement (L84, L87) — figure 1

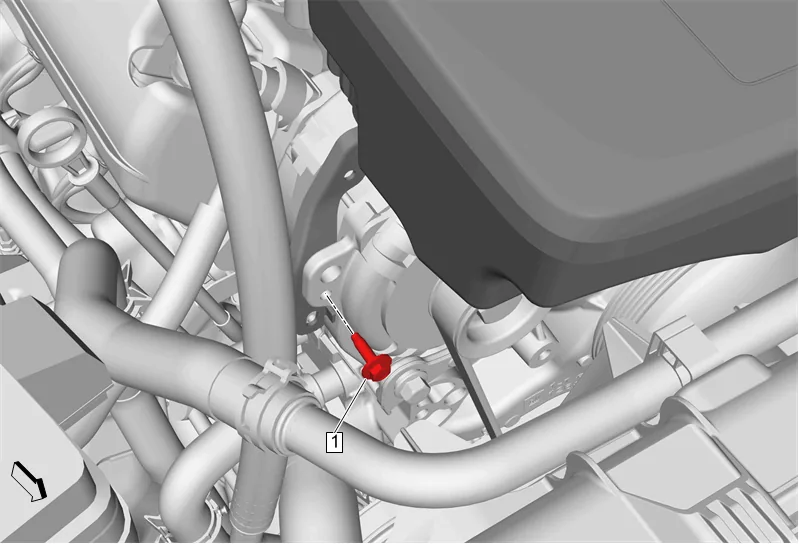

2. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
3. Remove the engine wiring harness from the air cleaner outlet duct bracket.

Generator Replacement (L84, L87) — figure 2

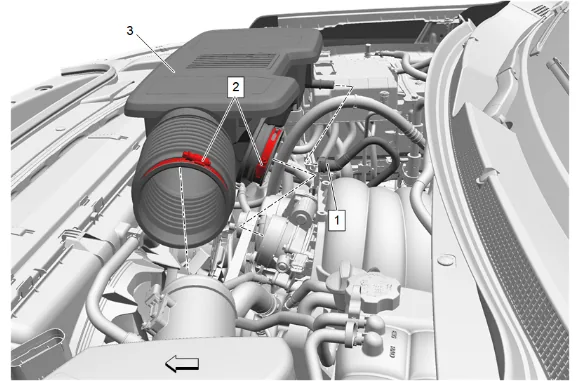

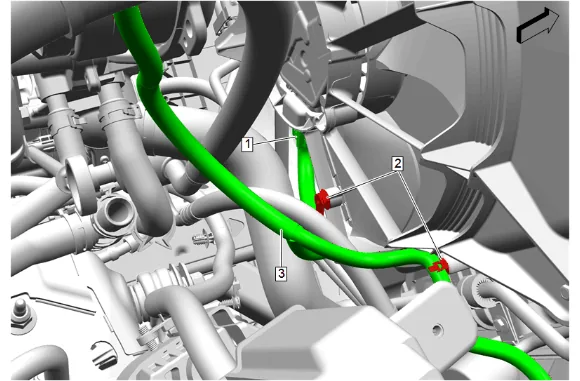

4. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
5. Air Cleaner Outlet Duct Clamp (2) » Loosen [2x]
6. Air Cleaner Outlet Duct (3) » Remove

Generator Replacement (L84, L87) — figure 3

Note

Some components not shown for graphic clarity.

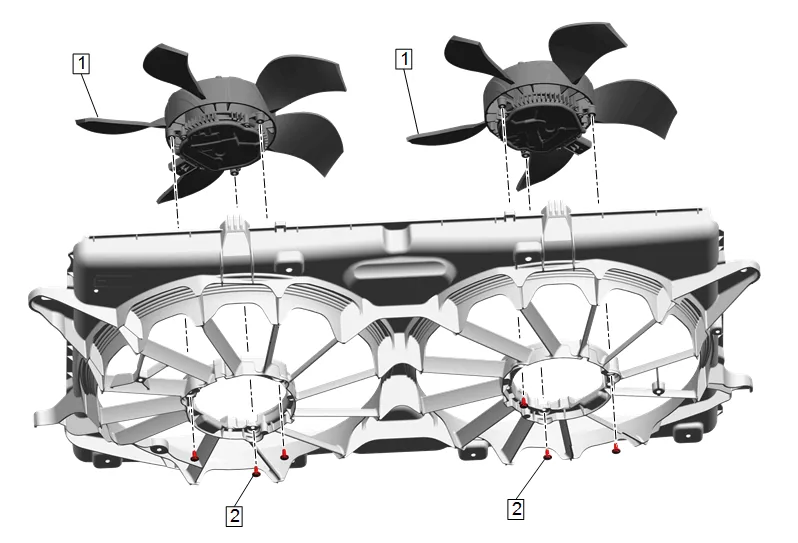

7. Disconnect the right side fan motor assembly electrical connector (1).

Generator Replacement (L84, L87) — figure 4

8. Fan Blade Bolt - Right Side (2) » Remove [3x]
9. Gently lower the fan blade/motor assembly until it rests on the bottom of the fan shroud.

Generator Replacement (L84, L87) — figure 5

Note

The accessory drive primary belt is not reusable. Some components not shown for graphic clarity.

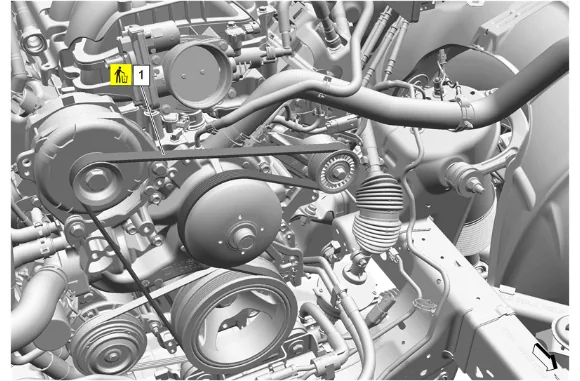

10. Using a suitable tool, cut the accessory drive primary belt (1).
11. Accessory Drive Primary Belt (1) » Remove and DISCARD

Generator Replacement (L84, L87) — figure 6

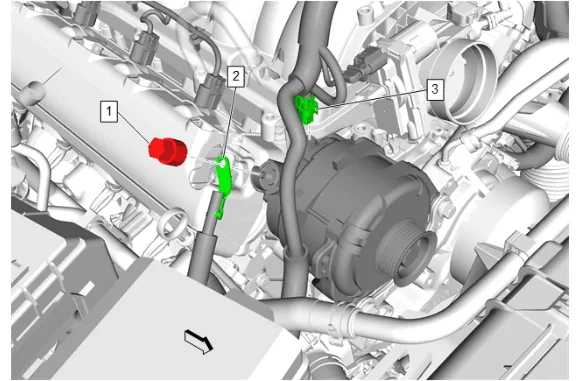

12. Battery Positive Cable Nut (1) » Remove
13. Starter Solenoid Cable (2) » Remove
14. Electrical Connector (3) » Disconnect

Generator Replacement (L84, L87) — figure 7

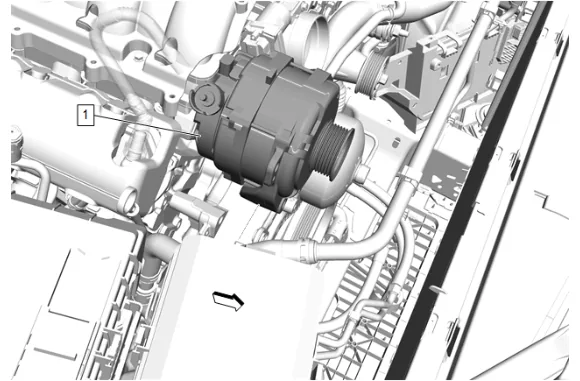

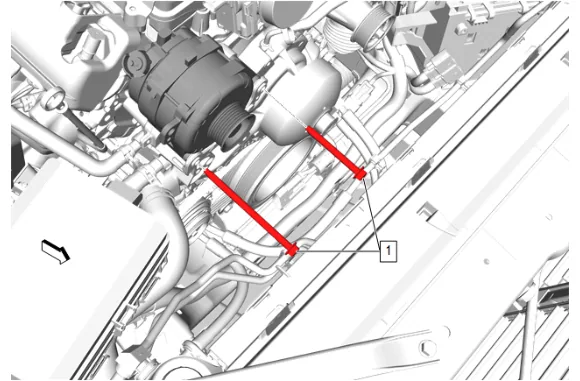

15. Generator Bolt (1) » Remove [2x]

Generator Replacement (L84, L87) — figure 8

16. Generator (1) » Remove Installation Procedure

17. Generator (1) » Install

Caution

Fastener Caution

Note

The long generator bolt must be installed from the opening in the fan shroud.

2. Generator Bolt (1) » Install and tighten [2x] — Fastener Specifications

Generator Replacement (L84, L87) — figure 9

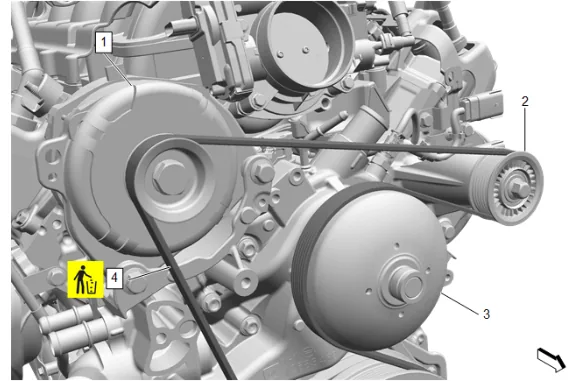

3. Position the accessory drive primary belt (4) on the belt idler pulley (2), fan and water pump pulley (3) and generator (1).

Generator Replacement (L84, L87) — figure 10

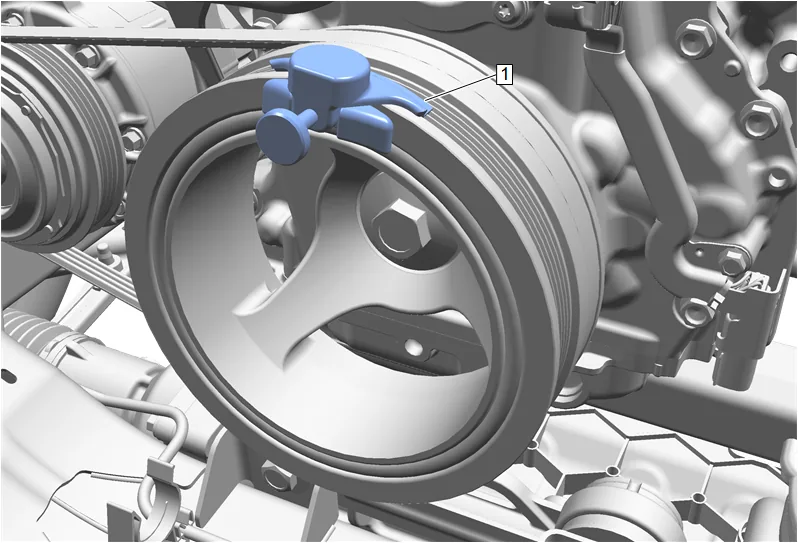

4. Install EN-51767-2 Universal Stretchy Belt Installer (1) onto the crankshaft balancer.

Generator Replacement (L84, L87) — figure 11

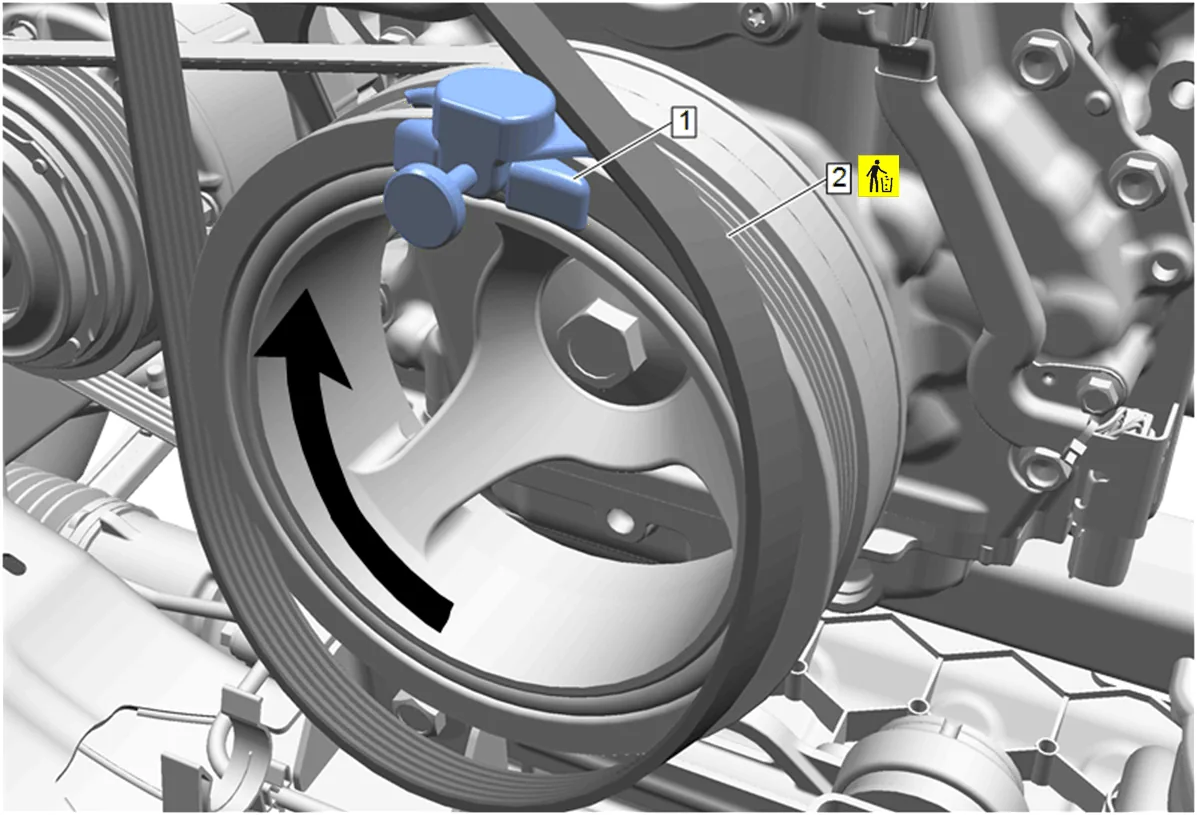

5. Position the accessory drive primary belt (2) on the crankshaft balancer.
6. Slowly rotate the crankshaft balancer in a clockwise direction until the accessory drive primary belt (2) fully seats on the crankshaft balancer.
7. Remove EN-51767-2 Universal Stretchy Belt Installer (1) from the crankshaft balancer.

Generator Replacement (L84, L87) — figure 12

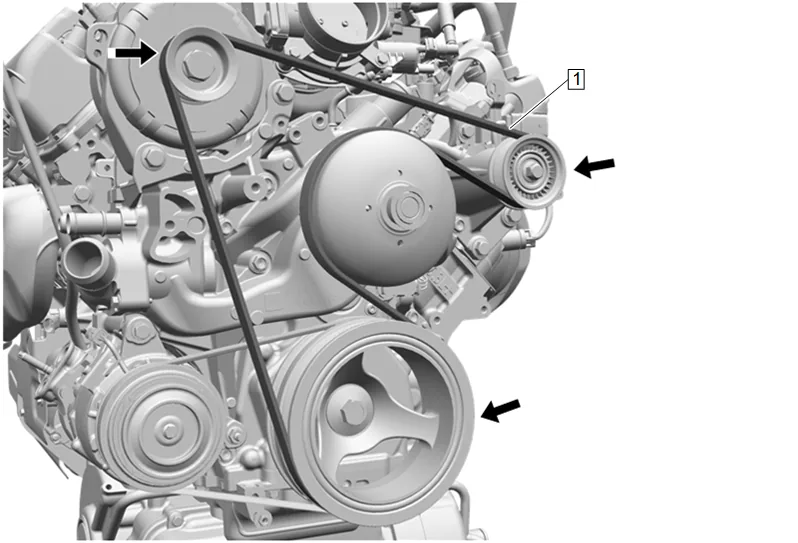

8. Inspect the accessory drive primary belt (1) for proper installation and alignment.

Generator Replacement (L84, L87) — figure 13

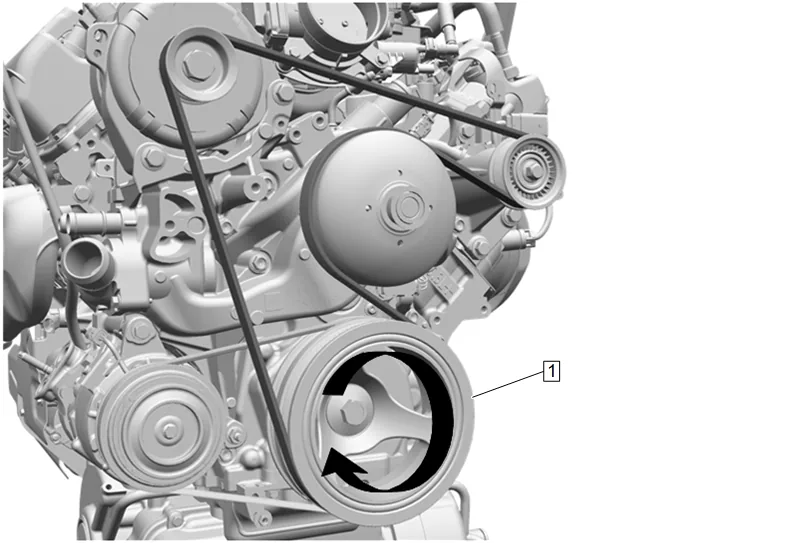

9. Rotate the crankshaft balancer (1) and additional 360 degrees to ensure proper accessory drive primary belt installation.

10. Starter Solenoid Cable (2) » Install

11. Battery Positive Cable Nut (1) » Install and tighten — Fastener Specifications

12. Electrical Connector (3) » Connect

13. Position the right side fan blade/motor assembly into the fan shroud mounting location.

14. Fan Blade Bolt - Right Side (2) » Install and tighten [3x] — Fastener Specifications

Note

Some components not shown for graphic clarity.

15. Connect the right side fan motor assembly electrical connector (1).

16. Air Cleaner Outlet Duct (3) » Install

17. Air Cleaner Outlet Duct Clamp (2) » Tighten [2x]

18. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

19. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

20. Install the engine wiring harness to the air cleaner outlet duct bracket.

21. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
