Instrument Panel Cluster Trim Plate Replacement

Removal Procedure

Instrument Panel Cluster Trim Plate Replacement — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Cluster Trim Plate Replacement — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Cluster Trim Plate Replacement — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Center Trim Plate Applique (1) » Remove

Instrument Panel Cluster Trim Plate Replacement — figure 4

7. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
8. Using a flat-bladed plastic trim tool, release the retaining clips.
9. Disconnect the electrical connector.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

10. Instrument Panel Trim Pad (2) » Remove

Instrument Panel Cluster Trim Plate Replacement — figure 5

11. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Instrument Panel Cluster Trim Plate Replacement — figure 6

12. Using a flat-bladed plastic trim tool, release the retaining clips.
13. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Cluster Trim Plate Replacement — figure 7

14. Using a flat-bladed plastic trim tool, release the retaining clips.
15. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Cluster Trim Plate Replacement — figure 8

16. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
17. Disconnect the electrical connectors.
18. Instrument Panel Trim Pad (2) » Remove

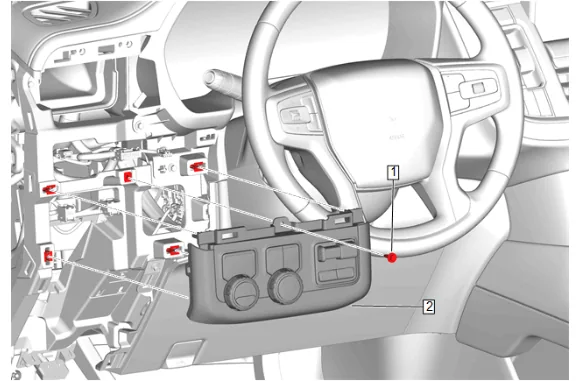

Instrument Panel Cluster Trim Plate Replacement — figure 9

19. Instrument Panel Switch Trim Plate Bolt (1) » Remove
20. Instrument Panel Switch Trim Plate (2) » Remove
21. Disconnect the electrical connectors.
22. Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.

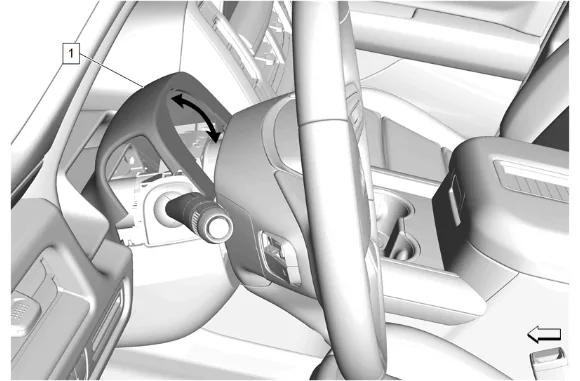

Instrument Panel Cluster Trim Plate Replacement — figure 10

23. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.

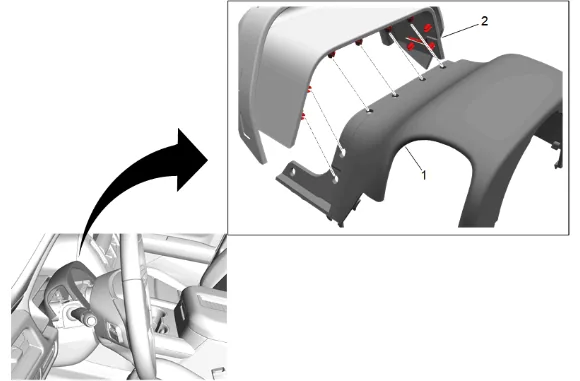

Instrument Panel Cluster Trim Plate Replacement — figure 11

24. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column opening closeout (2).

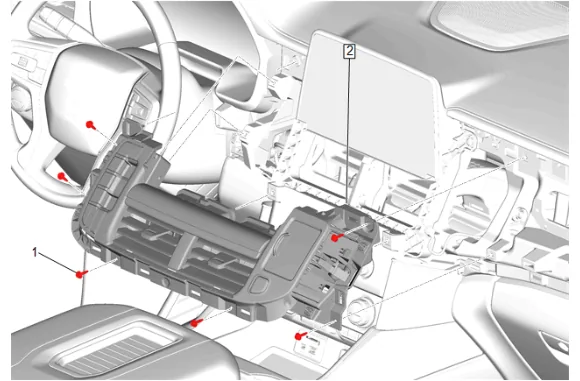

Instrument Panel Cluster Trim Plate Replacement — figure 12

25. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
26. Disconnect the electrical connectors.
27. Instrument Panel Transmission Shift Opening Cover (2) » Remove

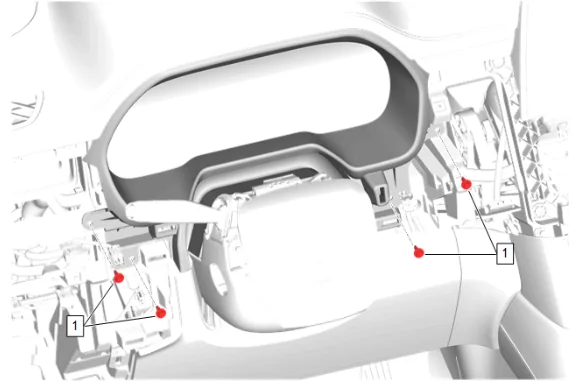

Instrument Panel Cluster Trim Plate Replacement — figure 13

Note

Some components not shown for graphic clarity.

28. Instrument Panel Cluster Trim Plate Bolt (1) » Remove [4x]

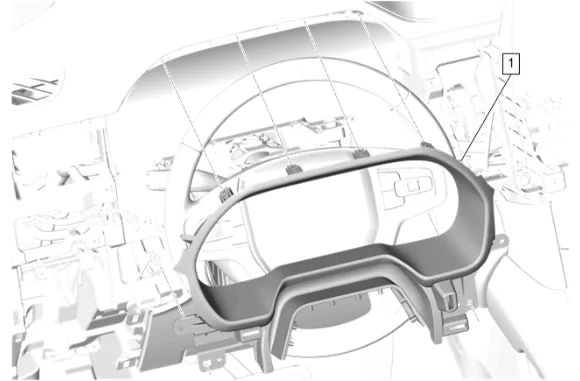

Instrument Panel Cluster Trim Plate Replacement — figure 14

Note

Use a plastic trim tool if necessary.

29. Instrument Panel Cluster Trim Plate (1) » Remove Installation Procedure

30. Instrument Panel Cluster Trim Plate (1) » Install

Caution

Refer to Fastener Caution.

2. Instrument Panel Cluster Trim Plate Bolt (1) » Install and tighten [4x] — Fastener Specifications

3. Connect the electrical connectors.

4. Instrument Panel Transmission Shift Opening Cover (2) » Install

5. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

6. Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

7. Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

8. Connect the electrical connectors.

9. Instrument Panel Switch Trim Plate (2) » Install

10. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

11. Connect the electrical connectors.

12. Instrument Panel Trim Pad (2) » Install

13. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

14. Instrument Panel Trim Plate Applique (1) » Install

15. Instrument Panel Fuse Block Access Hole Cover (1) » Install

16. Instrument Panel Lower Trim Panel Outer Filler (1) » Install

17. Connect the electrical connector.

18. Instrument Panel Trim Pad (2) » Install

19. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

20. Instrument Panel Center Trim Plate Applique (1) » Install

21. Instrument Panel Trim Plate Applique (1) » Install

22. Instrument Panel Fuse Block Access Hole Cover (1) » Install
