Tahoe / Yukon Service Manual

Belt Idler Pulley Bracket Replacement

Single Use Fasteners and Components Accessory Drive Primary Belt Special Tools EN-51767-2 Universal Stretchy Belt Installer Equivalent regional tools: Special Tools Removal Procedure

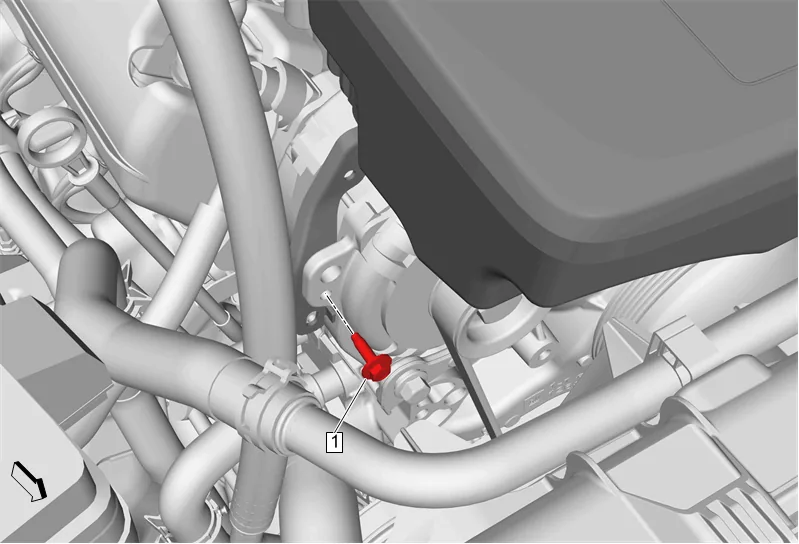

Belt Idler Pulley Bracket Replacement — figure 1
Belt Idler Pulley Bracket Replacement — figure 1
  1. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
  2. Remove engine wiring harness from air cleaner outlet duct bracket.

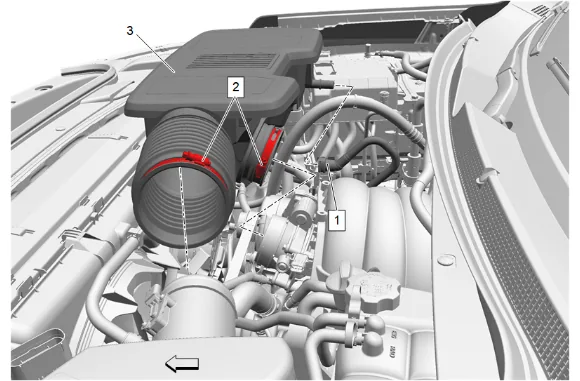

Belt Idler Pulley Bracket Replacement — figure 2
Belt Idler Pulley Bracket Replacement — figure 2
  1. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
  2. Air Cleaner Outlet Duct Clamp (2) » Loosen [2x]
  3. Air Cleaner Outlet Duct (3) » Remove

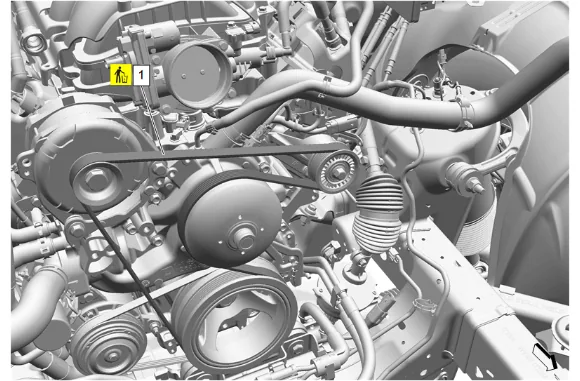

Belt Idler Pulley Bracket Replacement — figure 3
Belt Idler Pulley Bracket Replacement — figure 3
  1. Using a suitable tool, cut the accessory drive primary belt (1).
  2. Accessory Drive Primary Belt (1) » Remove and DISCARD

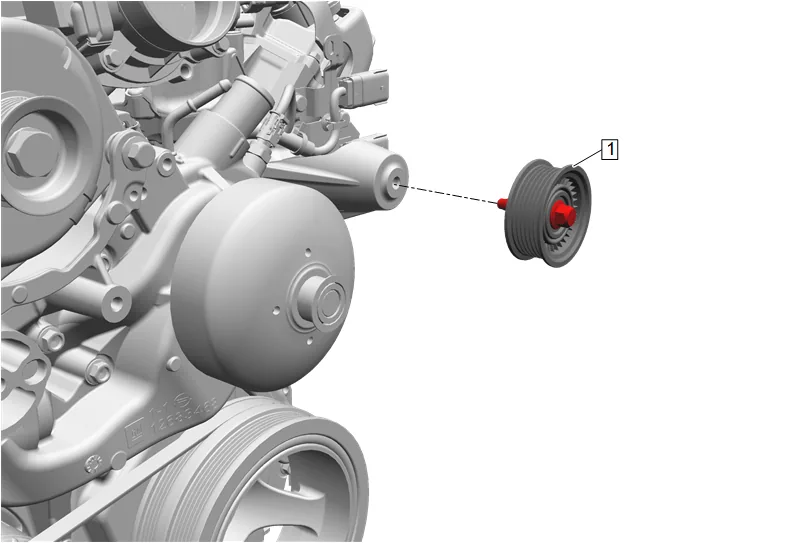

Belt Idler Pulley Bracket Replacement — figure 4
Belt Idler Pulley Bracket Replacement — figure 4
  1. Belt Idler Pulley (1) » Remove

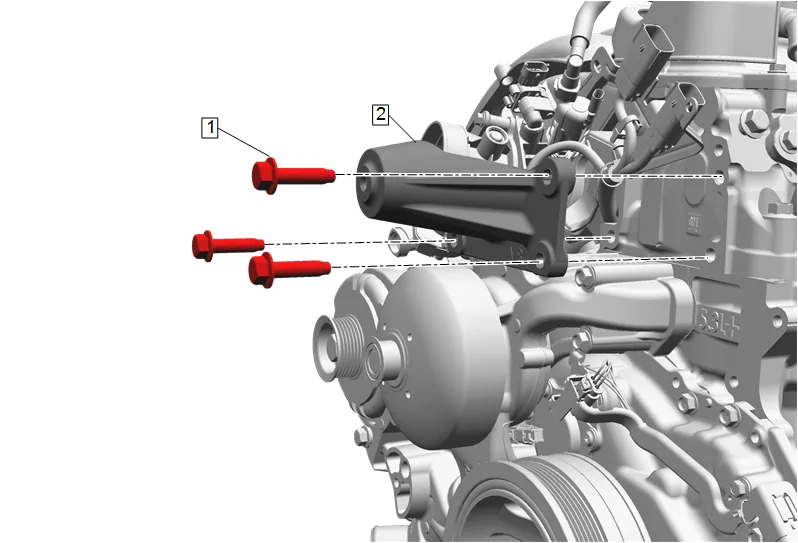

Belt Idler Pulley Bracket Replacement — figure 5
Belt Idler Pulley Bracket Replacement — figure 5

  1. Belt Idler Pulley Bracket Bolt (1) » Remove [3x]

  2. Belt Idler Pulley Bracket (2) » Remove Installation Procedure

  3. Belt Idler Pulley Bracket (2) » Install

  4. Belt Idler Pulley Bracket Bolt (1) » Install and hand tighten [3x]

  1. Belt Idler Pulley Bracket Bolt (1) » Install and tighten [3x] — Fastener Specifications

  2. Belt Idler Pulley (1) » Install and tighten — Fastener Specifications

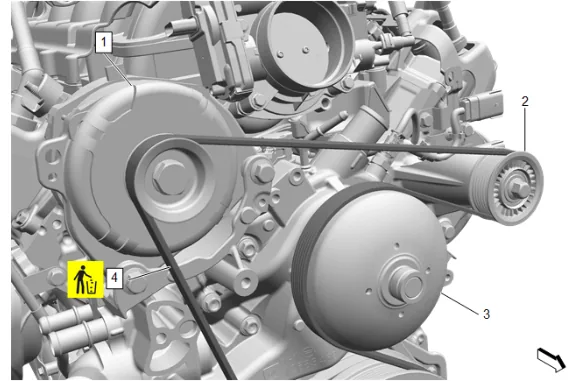

Belt Idler Pulley Bracket Replacement — figure 6
Belt Idler Pulley Bracket Replacement — figure 6
  1. Position the accessory drive primary belt (4) on the belt idler pulley (2), fan and water pump pulley (3) and generator (1).

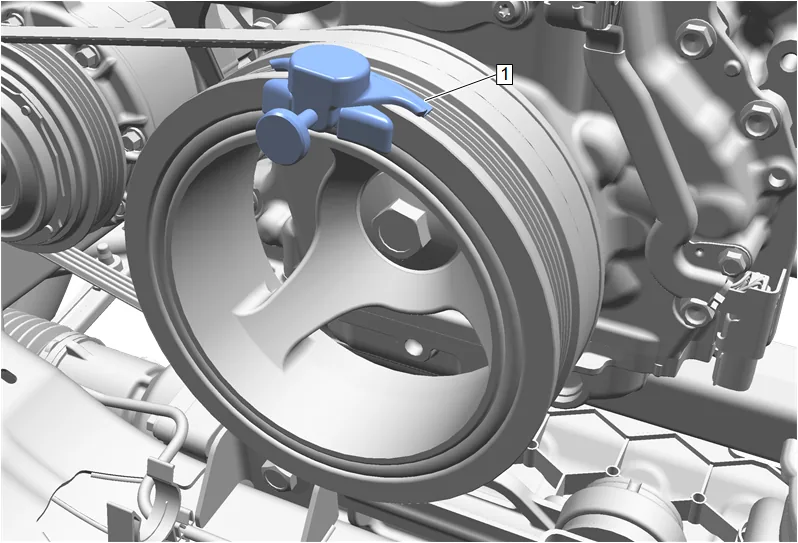

Belt Idler Pulley Bracket Replacement — figure 7
Belt Idler Pulley Bracket Replacement — figure 7
  1. Install EN-51767-2 Universal Stretchy Belt Installer (1) onto the crankshaft balancer.

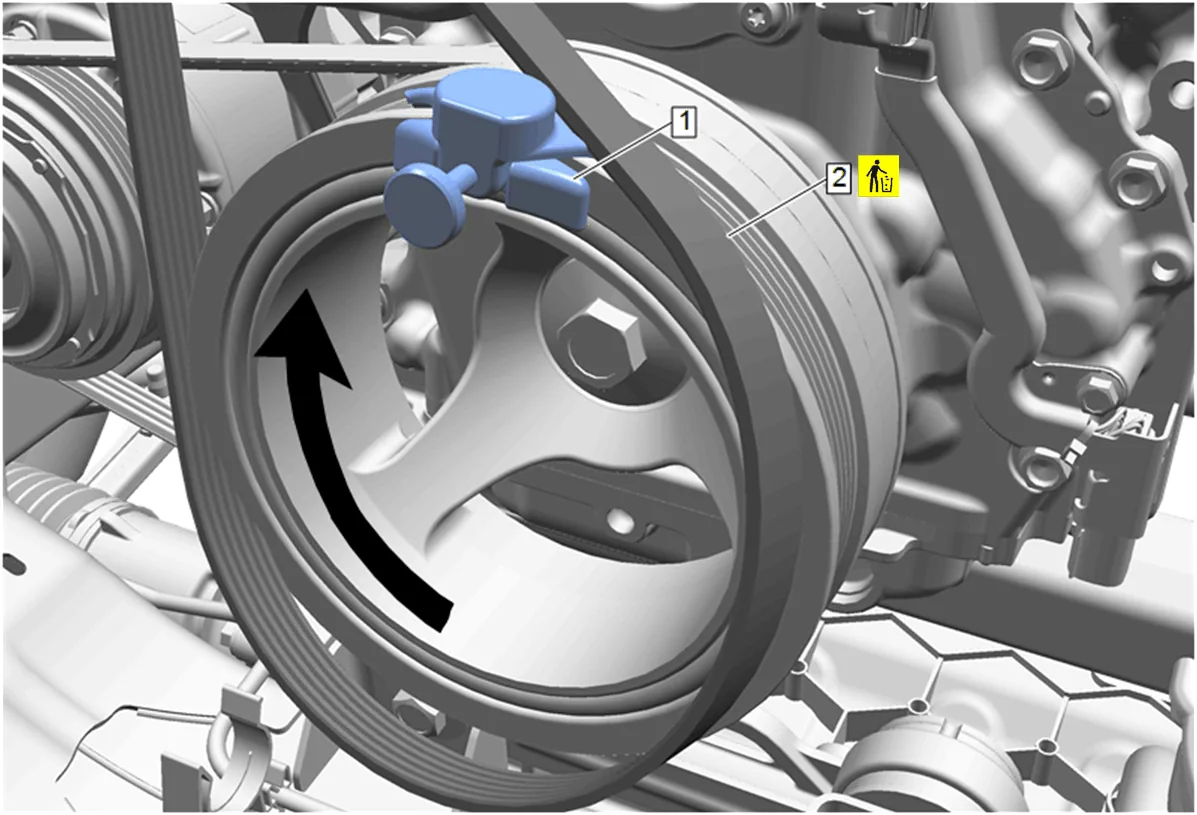

Belt Idler Pulley Bracket Replacement — figure 8
Belt Idler Pulley Bracket Replacement — figure 8
  1. Position the accessory drive primary belt (2) on the crankshaft balancer.
  2. Slowly rotate the crankshaft balancer in a clockwise direction until the accessory drive primary belt (2) fully seats on the crankshaft balancer.
  3. Remove EN-51767-2 Universal Stretchy Belt Installer (1) from the crankshaft balancer.

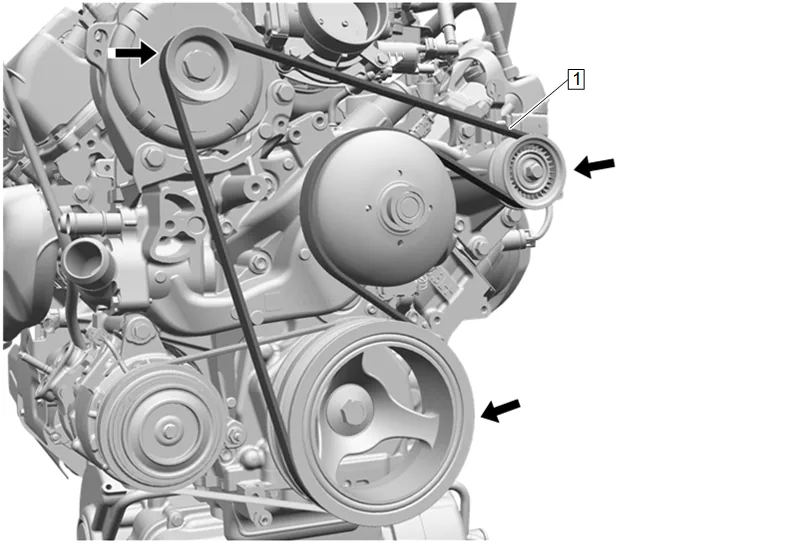

Belt Idler Pulley Bracket Replacement — figure 9
Belt Idler Pulley Bracket Replacement — figure 9
  1. Inspect the accessory drive primary belt (1) for proper installation and alignment.

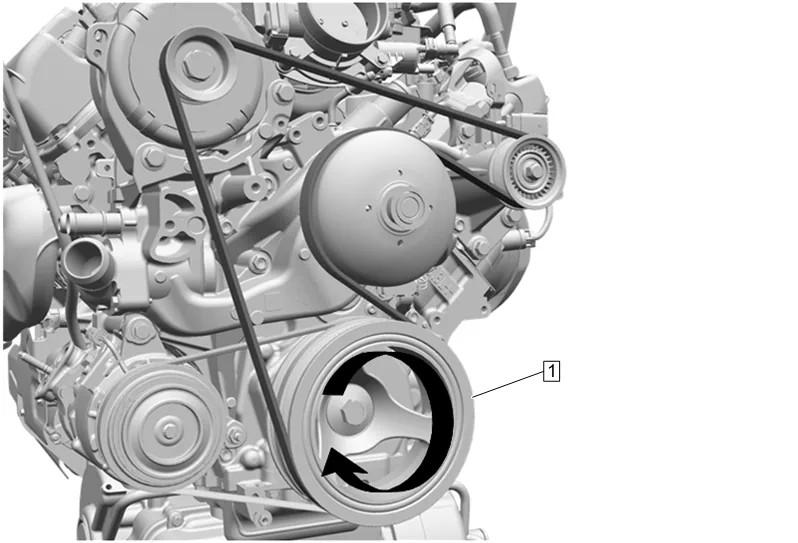

Belt Idler Pulley Bracket Replacement — figure 10
Belt Idler Pulley Bracket Replacement — figure 10

  1. Rotate the crankshaft balancer (1) and additional 360 degrees to ensure proper accessory drive primary belt installation.

  2. Air Cleaner Outlet Duct (3) » Install

  1. Air Cleaner Outlet Duct Clamp (2) » Tighten [2x] — Fastener Specifications

  2. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

  3. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

  4. Install engine wiring harness to air cleaner outlet duct bracket.
