Video Processing Module Replacement (Tahoe)

Removal Procedure

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

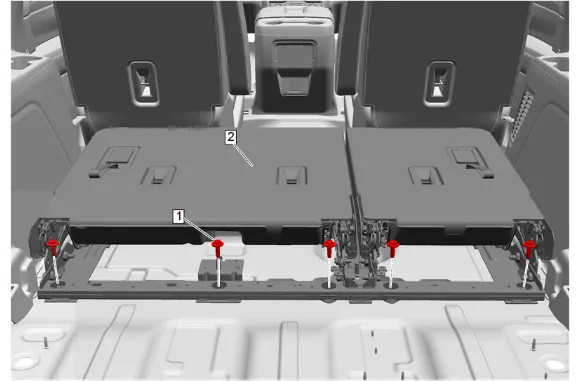

Video Processing Module Replacement (Tahoe) — figure 1

1. 3rd Row Seat (2) » Remove — 3rd Row Seat Removal and Installation
2. Disable the SIR system. SIR Disabling and Enabling

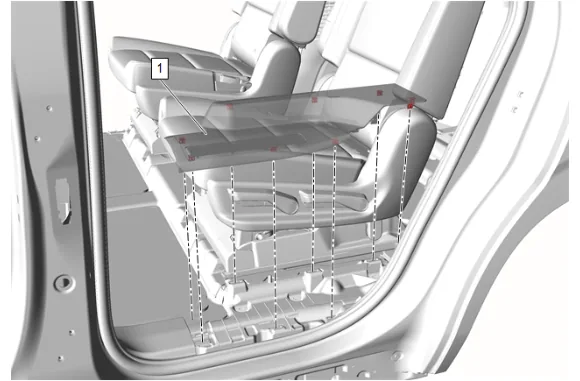

Video Processing Module Replacement (Tahoe) — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Rear Side Door Sill Garnish Molding (1) » Remove

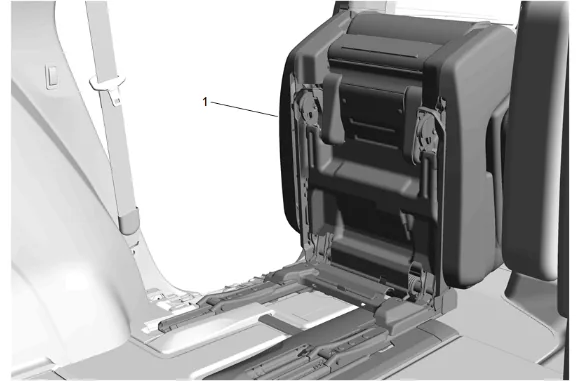

Video Processing Module Replacement (Tahoe) — figure 3

5. Place the rear seat (1) in the fold and tumble position.

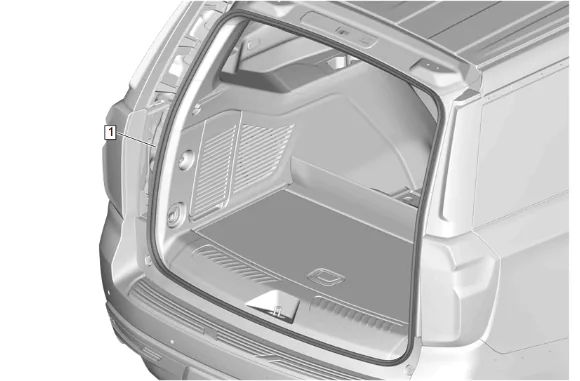

Video Processing Module Replacement (Tahoe) — figure 4

6. Liftgate Weatherstrip (1) » Reposition

Video Processing Module Replacement (Tahoe) — figure 5

7. Liftgate Lock Striker Cover (1) » Remove

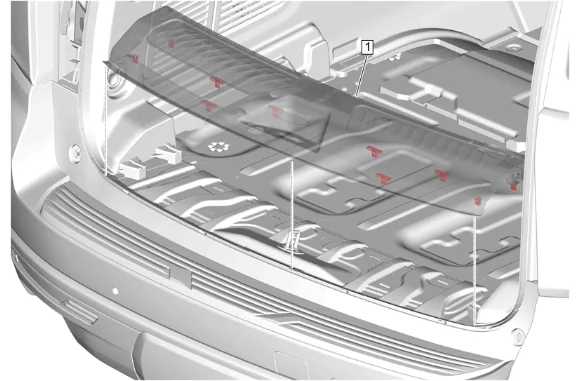

Video Processing Module Replacement (Tahoe) — figure 6

8. Using a flat-bladed plastic trim tool, release the retaining clips.
9. Rear End Trim Finish Panel (1) » Remove

Video Processing Module Replacement (Tahoe) — figure 7

10. Rear Seat Belt Retractor Sleeve (1) » Reposition
11. Rear Seat Belt Anchor Plate Bolt (2) » Remove

Video Processing Module Replacement (Tahoe) — figure 8

12. Rear Seat Belt Opening Bezel (1) » Disengage

Video Processing Module Replacement (Tahoe) — figure 9

13. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
14. Quarter Window Trim Finish Panel Bolt (2) » Remove

Video Processing Module Replacement (Tahoe) — figure 10

15. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

16. Body Lock Pillar Upper Trim Panel (1) » Remove

Video Processing Module Replacement (Tahoe) — figure 11

17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.

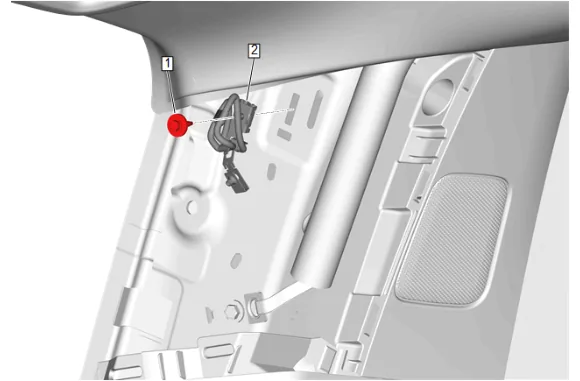

Video Processing Module Replacement (Tahoe) — figure 12

19. Body Side Rear Window Garnish Molding Bolt (1) » Remove
20. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Remove

Video Processing Module Replacement (Tahoe) — figure 13

21. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove

Video Processing Module Replacement (Tahoe) — figure 14

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Body Rear Corner Upper Garnish Molding (1) » Remove

Video Processing Module Replacement (Tahoe) — figure 15

24. Electrical Connector (1) » Disconnect
25. Wiring Harness Retainer (2) » Remove

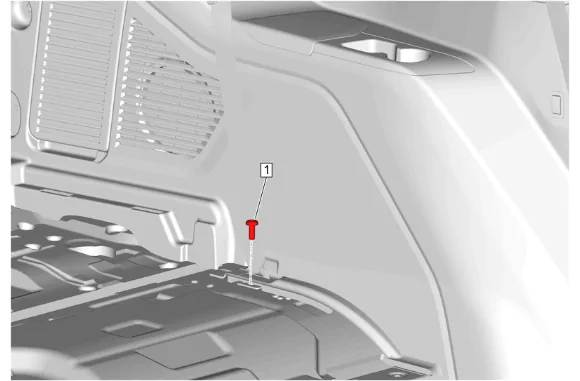

Video Processing Module Replacement (Tahoe) — figure 16

26. 3rd Row Seat Belt Retractor Bolt - Lower (1) » Remove

Video Processing Module Replacement (Tahoe) — figure 17

27. Using a flat-bladed plastic trim tool, release the retaining clips.
28. Rear Seat Belt Opening Bezel (1) » Remove

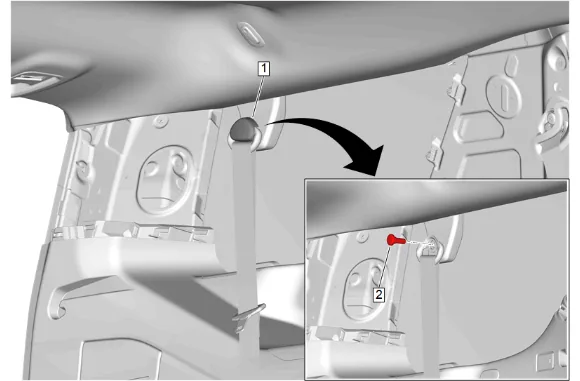

Video Processing Module Replacement (Tahoe) — figure 18

29. 3rd Row Seat Belt Retractor Anchor Cover (1) » Open
30. 3rd Row Seat Belt Retractor Bolt - Upper (2) » Remove

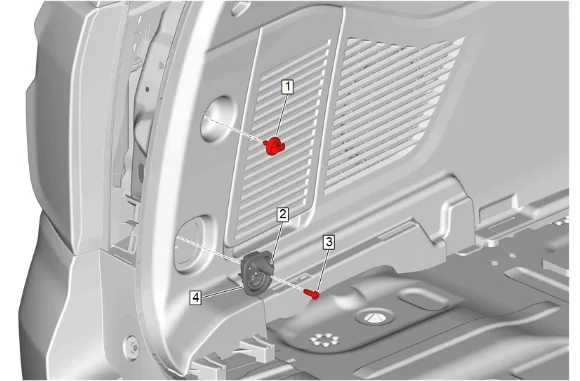

Video Processing Module Replacement (Tahoe) — figure 19

31. Convenience Net Retainer (1) » Remove
32. Cargo Tie Down Loop Bolt Cap (2) » Open
33. Cargo Tie Down Loop Bolt (3) » Remove
34. Cargo Tie Down Loop (4) » Remove

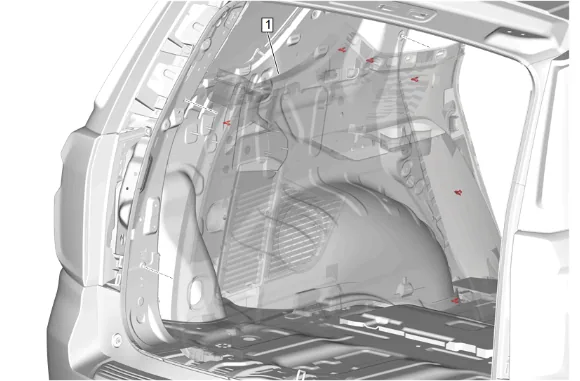

Video Processing Module Replacement (Tahoe) — figure 20

35. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Feed the rear seat belt opening bezel and 3rd row seat belt through the quarter lower rear trim panel.

36. Quarter Lower Rear Trim Panel (1) » Remove

Video Processing Module Replacement (Tahoe) — figure 21

37. Disconnect the electrical connectors (1).
38. Remove the wiring harness retainers (2).

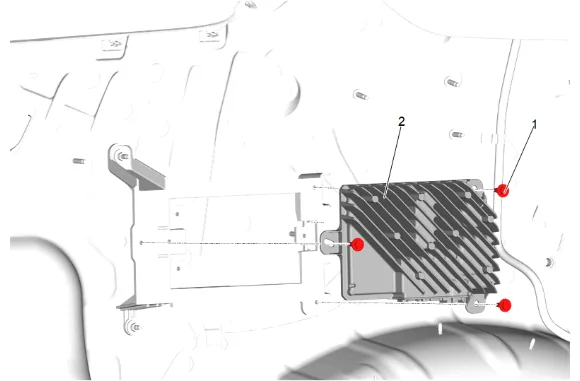

Video Processing Module Replacement (Tahoe) — figure 22

39. Disconnect all electrical connectors.
40. Radio Speaker Amplifier Bolt (1) » Remove [3x]
41. Radio Speaker Amplifier (2) » Remove

Video Processing Module Replacement (Tahoe) — figure 23

42. Radio Speaker Amplifier Bracket Nut (1) » Remove [4x]
43. Reposition the wiring harness.
44. Radio Speaker Amplifier Bracket (2) » Remove

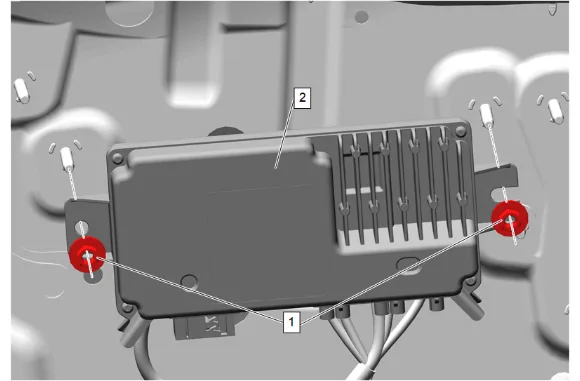

Video Processing Module Replacement (Tahoe) — figure 24

45. Disconnect the electrical connectors.

46. Video Processing Module Nut (1) » Remove [2x]

47. Video Processing Module (2) » Remove Installation Procedure

48. Video Processing Module (2) » Install

Caution

Refer to Fastener Caution.

2. Video Processing Module Nut (1) » Install and tighten [2x] — Fastener Specifications

3. Connect the electrical connectors.

4. Radio Speaker Amplifier Bracket (2) » Install

5. Radio Speaker Amplifier Bracket Nut (1) » Install and tighten [4x] Fastener Specifications

6. Position the wiring harness.

7. Radio Speaker Amplifier (2) » Install

8. Radio Speaker Amplifier Bolt (1) » Install and tighten [3x] Fastener Specifications

9. Connect the electrical connectors.

10. Install the wiring harness retainers (2).

11. Connect the electrical connectors (1).

Note

Feed the rear seat belt opening bezel and 3rd row seat belt through the quarter lower rear trim panel.

12. Quarter Lower Rear Trim Panel (1) » Install

13. Cargo Tie Down Loop (4) » Install

14. Cargo Tie Down Loop Bolt (3) » Install and tighten — Fastener Specifications

15. Cargo Tie Down Loop Bolt Cap (2) » Close

16. Convenience Net Retainer (1) » Install and tighten — Fastener Specifications

17. 3rd Row Seat Belt Retractor Bolt - Upper (2) » Install and tighten — Fastener Specifications

18. 3rd Row Seat Belt Retractor Anchor Cover (1) » Close

19. Rear Seat Belt Opening Bezel (1) » Install

20. 3rd Row Seat Belt Retractor Bolt - Lower (1) » Install and tighten — Fastener Specifications

21. Wiring Harness Retainer (2) » Install

22. Electrical Connector (1) » Connect

23. Body Rear Corner Upper Garnish Molding (1) » Install

24. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

25. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Install

26. Body Side Rear Window Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

Note

Position the body side rear window garnish molding tether in the same position as before the molding removal.

27. Body Side Rear Window Garnish Molding (1) » Install

Note

Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

28. Body Lock Pillar Upper Trim Panel (1) » Install

29. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

30. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

31. Rear Seat Belt Opening Bezel (1) » Install

32. Rear Seat Belt Retractor Anchor Plate Bolt (2) » Install and tighten — Fastener Specifications

33. Rear Seat Belt Retractor Sleeve (1) » Reposition

34. Rear End Trim Finish Panel (1) » Install

35. Liftgate Lock Striker Cover (1) » Install

36. Liftgate Weatherstrip (1) » Reposition

37. Return the rear seat (1) to the original position.

38. Rear Side Door Sill Garnish Molding (1) » Install

39. Enable the SIR System. SIR Disabling and Enabling

40. 3rd Row Seat (2) » Install — 3rd Row Seat Removal and Installation

41. Perform the necessary programming and setup procedure: Control Module References
