Parking Brake Control Switch Replacement

Removal Procedure

Parking Brake Control Switch Replacement — figure 1

1. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Parking Brake Control Switch Replacement — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Parking Brake Control Switch Replacement — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Instrument Panel Trim Plate Applique (1) » Remove

Parking Brake Control Switch Replacement — figure 4

6. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
7. Disconnect the electrical connectors.
8. Instrument Panel Trim Pad (2) » Remove

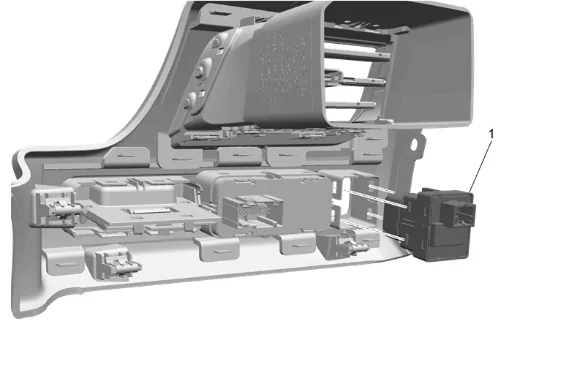

Parking Brake Control Switch Replacement — figure 5

9. Parking Brake Control Switch (1) » Remove Installation Procedure

10. Parking Brake Control Switch (1) » Install

11. Connect the electrical connectors.

12. Instrument Panel Trim Pad (2) » Install

Caution

Refer to Fastener Caution.

4. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

5. Instrument Panel Trim Plate Applique (1) » Install

6. Instrument Panel Fuse Block Access Hole Cover (1) » Install

7. Instrument Panel Lower Trim Panel Outer Filler (1) » Install
