3rd Row Seat Belt Buckle Replacement (60 Percent and Mini Buckle)

3rd Row Seat Belt Buckle Replacement (60 Percent and Mini Buckle) Removal Procedure

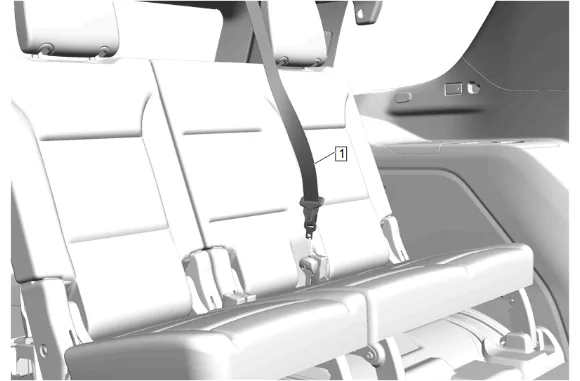

3rd Row Seat Belt Buckle Replacement (60 Percent and Mini Buckle) — figure 1
3rd Row Seat Belt Buckle Replacement (60 Percent and Mini Buckle) — figure 1
  1. Disconnect the rear seat belt mini-latch (1).

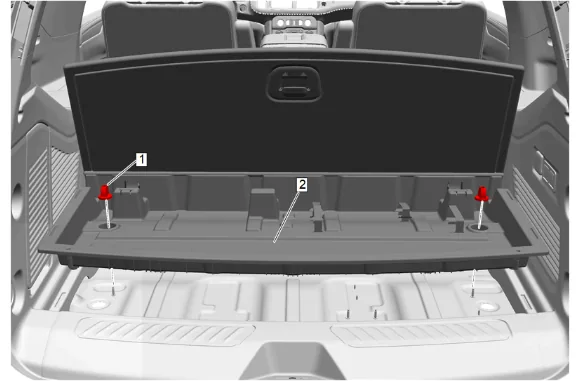

3rd Row Seat Belt Buckle Replacement (60 Percent and Mini Buckle) — figure 2
3rd Row Seat Belt Buckle Replacement (60 Percent and Mini Buckle) — figure 2
  1. Rear Compartment Floor Stowage Compartment Divider Retainer (1) » Remove [2x]
  2. Rear Compartment Floor Stowage Trim Compartment (2) » Remove
  3. If equipped, disconnect the electrical connectors and reposition the wiring harness.
3rd Row Seat Belt Buckle Replacement (60 Percent and Mini Buckle) — figure 3
3rd Row Seat Belt Buckle Replacement (60 Percent and Mini Buckle) — figure 3
  1. 3rd Row Seat Nut (1) » Remove

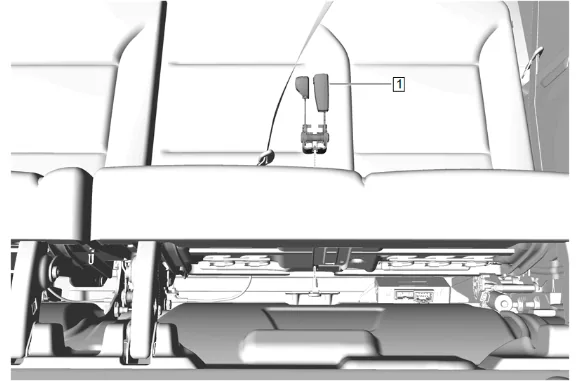

3rd Row Seat Belt Buckle Replacement (60 Percent and Mini Buckle) — figure 4
3rd Row Seat Belt Buckle Replacement (60 Percent and Mini Buckle) — figure 4

  1. 3rd Row Seat Belt Buckle (1) » Remove Installation Procedure

  2. 3rd Row Seat Belt Buckle (1) » Install

  1. 3rd Row Seat Nut (1) » Install and tighten — Fastener Specifications

  2. If equipped, connect the electrical connectors and install the wiring harness.

  3. Rear Compartment Floor Stowage Trim Compartment (2) » Install

  1. Rear Compartment Floor Stowage Compartment Divider Retainer (1) » Install and tighten [2x] — Fastener Specifications

  2. Connect the rear seat belt mini-latch (1).
