Fastener Specifications (5)

Fastener Specifications Table 1: Front Lower Control Arm Table 2: Rear Suspension Adjust Link Table 3: Rear Suspension Lower Control Arm Table 4: Steering Linkage Inner Tie Rod Nut

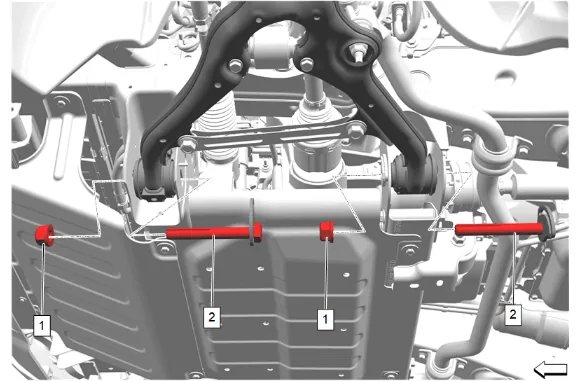

Fastener Specifications (5) — figure 1

Front Lower Control Arm

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Lower Control Arm Nut [2x]	—	—	First Pass: 180 Y (133 lb ft) Final Pass: 90 - 105 degrees	Front Caster and Camber Adjustment
2	Front Lower Control Arm Adjust Bolt [2x]	—	—	—	Front Lower Control Arm Replacement

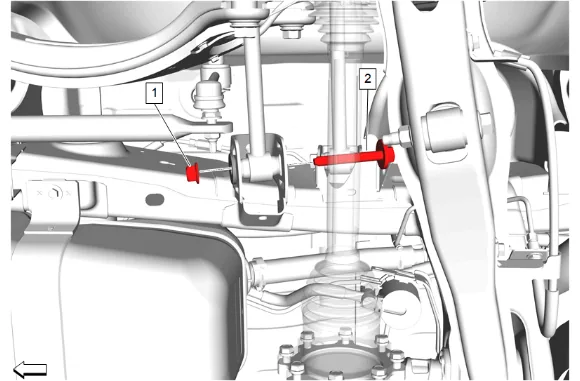

Fastener Specifications (5) — figure 2

Rear Suspension Adjust Link

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Suspension Link Inner Nut	—	—	First Pass: 90 Y (66 lb ft) Final Pass: 45 - 60 degrees	Rear Toe Adjustment
2	Rear Suspension Adjust Link Bolt	—	—	—	Rear Suspension Adjust Link Replacement

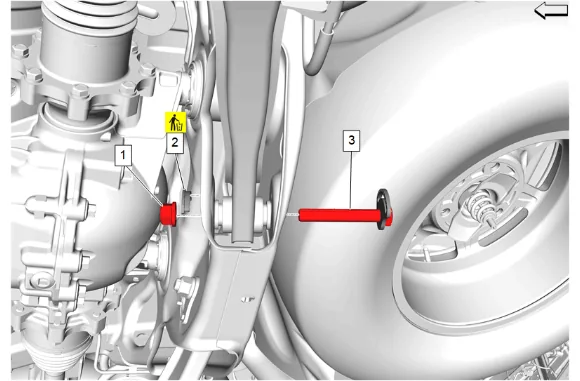

Fastener Specifications (5) — figure 3

Rear Suspension Lower Control Arm

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Rear Suspension Lower Control Arm Inner Nut	—	—	First Pass: 180 Y (133 lb ft) Final Pass: 90 - 105 degrees	Rear Camber Adjustment
	2	Rear Lower Control	Yes	—	—	Rear Suspension
		Arm Adjust Cam ©	2023 Gen	eral Motor	s. All rights reserved.	Lower Control Arm

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
	Retainer				Replacement
3	Rear Suspension Lower Control Arm Inner Bolt	—	—	—	Rear Suspension Lower Control Arm Replacement

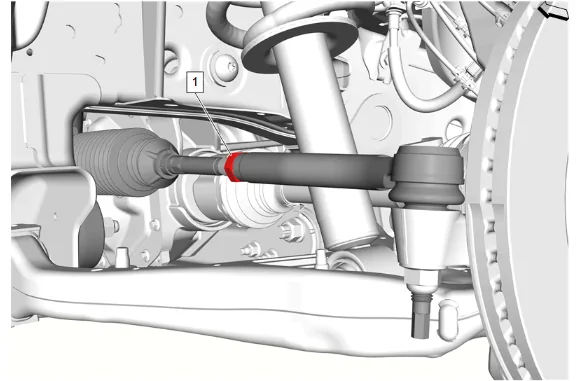

Fastener Specifications (5) — figure 4

Steering Linkage Inner Tie Rod Nut

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Steering Linkage Inner Tie Rod Nut	—	—	75 Y (55 lb ft)	Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
