Front Seat Inner Recliner Finish Cover Replacement

Removal Procedure

Front Seat Inner Recliner Finish Cover Replacement — figure 1

1. Front Seat Cushion Cover and Pad (1) » Remove — Front Seat Cushion Cover and Pad Removal and Installation

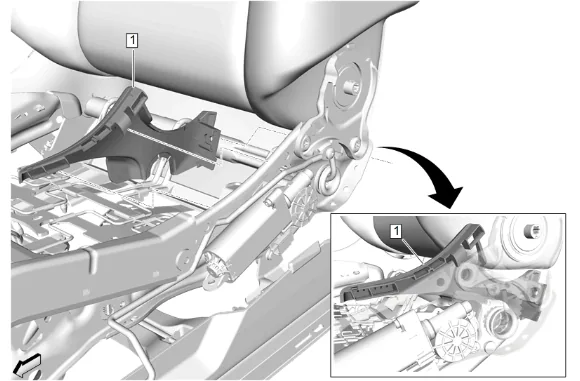

Front Seat Inner Recliner Finish Cover Replacement — figure 2

2. Release the retaining tabs securing the front seat inner recliner finish cover (1) to the front seat cushion frame.

3. Front Seat Inner Recliner Finish Cover (1) » Remove Installation Procedure

4. Front Seat Inner Recliner Finish Cover (1) » Install

5. Front Seat Cushion Cover and Pad (1) » Install — Front Seat Cushion Cover and Pad Removal and Installation
