Video Display Inside Rearview Mirror Camera Nozzle Replacement

Video Display Inside Rearview Mirror Camera Nozzle Replacement Removal Procedure

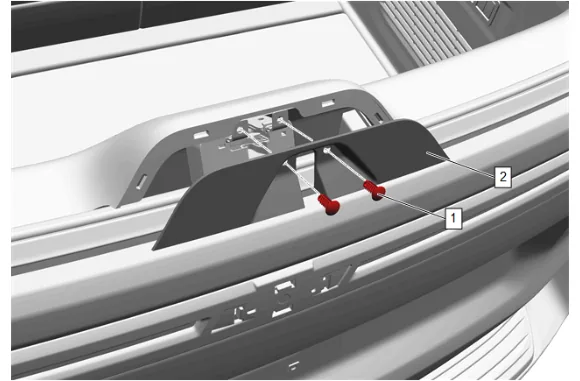

Video Display Inside Rearview Mirror Camera Nozzle Replacement — figure 1

1. Open the liftgate window.
2. Use a small flat-bladed tool to remove the 2 panel locators (1).
3. Liftgate Lower Trim Finish Panel Access Hole Cover(2) » Remove

Video Display Inside Rearview Mirror Camera Nozzle Replacement — figure 2

4. Use the appropriate trim tool to release the liftgate upper center trim finish panel (1) from the liftgate inner panel.
5. Liftgate Upper Center Trim Finish Panel (1) » Remove

Video Display Inside Rearview Mirror Camera Nozzle Replacement — figure 3

6. Use a flat-bladed trim tool to aid in the removal of the liftgate upper side trim finish panels (1) from the liftgate.
7. Liftgate Upper Side Trim Finish Panel (1) » Remove [2x]

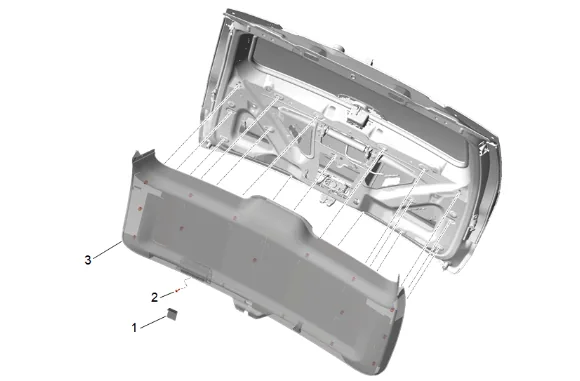

Video Display Inside Rearview Mirror Camera Nozzle Replacement — figure 4

8. Use a flat-bladed trim tool to aid in the removal of the rear compartment lid inner panel trim hole plug (1).
9. Liftgate Lower Trim Finish Panel Bolt (2) » Remove
10. Disconnect the electrical connector.
11. Liftgate Lower Trim Finish Panel (3) » Remove

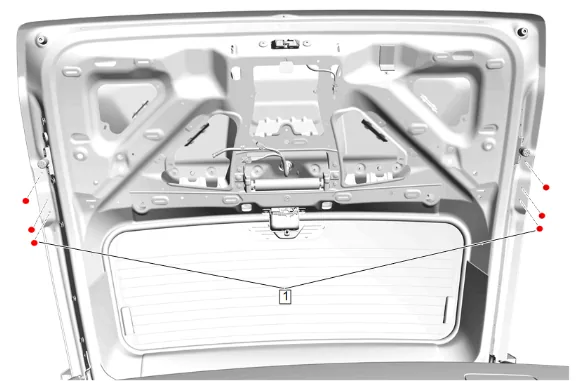

Video Display Inside Rearview Mirror Camera Nozzle Replacement — figure 5

12. Disconnect the electrical connector.
13. Liftgate Side Sensor » Remove [2x]
14. Rear Closure Center Applique Bolt (1) » Remove [6x]

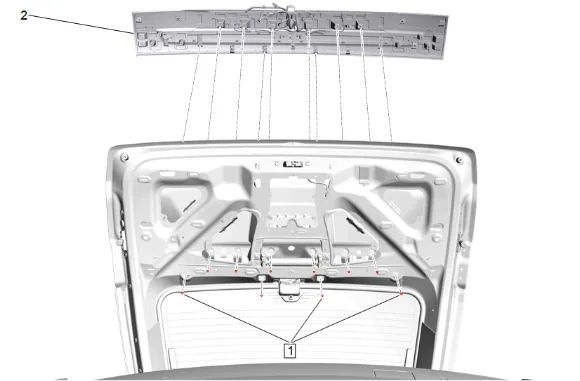

Video Display Inside Rearview Mirror Camera Nozzle Replacement — figure 6

Note

Observe the mounting and location of the grommet to ensure proper reinstallation.

15. Disconnect all electrical connectors.
16. Disconnect the washer hose, If equipped.
17. Rear Closure Center Applique Nut (1) » Remove [10x]
18. Release the retainers.
19. Rear Closure Center Applique (2) » Remove

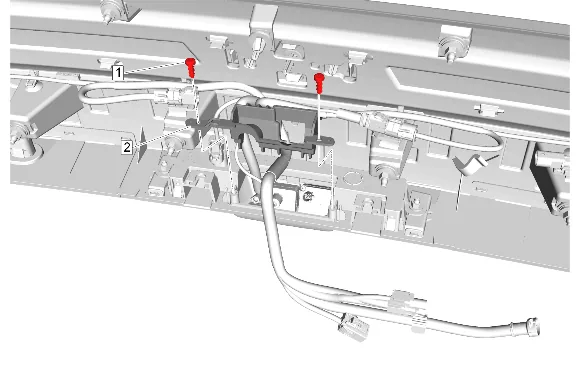

Video Display Inside Rearview Mirror Camera Nozzle Replacement — figure 7

20. Rearview Driver Information Camera Bracket Bolt (1) » Remove [2x]
21. Rearview Driver Information Camera Bracket (2) » Remove

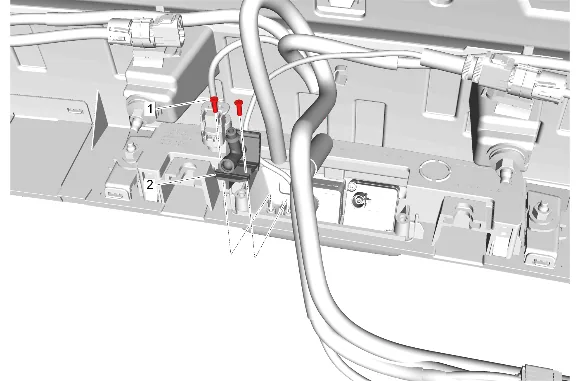

Video Display Inside Rearview Mirror Camera Nozzle Replacement — figure 8

22. Video Display Inside Rearview Mirror Camera Nozzle Bolt (1) » Remove [2x]

23. Video Display Inside Rearview Mirror Camera Nozzle (2) » Remove

24. Disconnect the washer hose. Installation Procedure

25. Connect the washer hose.

26. Video Display Inside Rearview Mirror Camera Nozzle (2) » Install

Caution

Refer to Fastener Caution.

3. Video Display Inside Rearview Mirror Camera Nozzle Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. Rearview Driver Information Camera Bracket (2) » Install

5. Rearview Driver Information Camera Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Rear Closure Center Applique (2) » Install

7. Rear Closure Center Applique Nut (1) » Install and tighten [10x] — Fastener Specifications

8. Connect the washer hose, If equipped.

9. Connect all electrical connectors.

10. Rear Closure Center Applique Bolt (1) » Install and tighten [6x] — Fastener Specifications

11. Liftgate Side Sensor » Install [2x]

12. Connect the electrical connector.

13. Connect the electrical connector.

14. Liftgate Lower Trim Finish Panel (3) » Install

15. Liftgate Lower Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

16. Rear Compartment Lid Inner Panel Trim Hole Plug(1) » Install

17. Liftgate Upper Side Trim Finish Panel (1) » Install [2x]

18. Liftgate Upper Center Trim Finish Panel (1) » Install

19. Liftgate Lower Trim Finish Panel Access Hole Cover(2) » Install

20. Liftgate Trim Finish Panel Locator(1) » Install [2x]

21. Close the liftgate window.
