3rd Row Center Seat Belt Retractor Replacement (SWB)

Removal Procedure

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 1

1. Using a suitable plastic trim tool, release the retaining tabs on the rear seat position center reading and courtesy lamp (1).

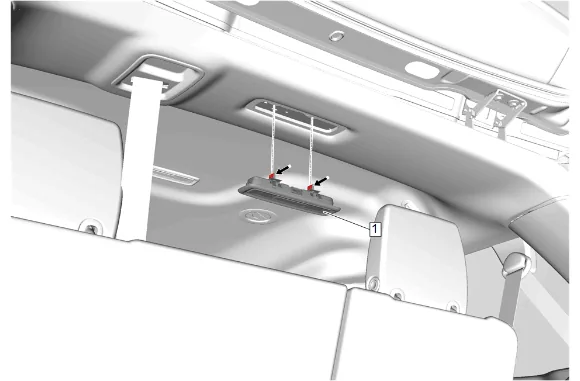

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 2

2. Using a suitable plastic trim tool, release the retaining tabs on the cargo center courtesy lamp (1).

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 3

3. Place the coat hook (2) in the open position.
4. Coat Hook Bolt (1) » Remove [4x]
5. Coat Hook (2) » Remove [4x]

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 4

6. Move both front seats fully forward.
7. Use a flat bladed plastic tool between the center pillar center trim panel (1) and the center pillar upper trim panel to disengage the upper retaining clips (2) on both sides of the vehicle.
8. Pull from both sides of the center pillar center trim panel (1) to release the middle and lower retaining clips (2) on both sides of the vehicle.
9. Center Pillar Center Trim Panel (1) » Remove [2x]

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 5

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

10. Center Pillar Upper Trim Panel Bolt Cap (1) » Remove [2x]
11. Center Pillar Upper Garnish Molding Bolt (2)» Remove [2x]
12. Pull the center pillar upper trim panel (3) toward the inside of the vehicle to disengage the retaining clips on both sides of the vehicle.
13. Center Pillar Upper Trim Panel (3) » Reposition [2x]

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 6

14. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
15. Quarter Window Trim Finish Panel Bolt (2) » Remove

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 7

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Body Lock Pillar Upper Trim Panel (1) » Reposition

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 8

18. Using a flat-bladed plastic trim tool, release the retaining clips.
19. Body Side Rear Window Garnish Molding (1) » Reposition

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 9

20. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 10

21. Using a flat-bladed plastic trim tool, release the retaining clips.
22. Body Rear Corner Upper Garnish Molding (1) » Reposition

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 11

23. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
24. Quarter Window Trim Finish Panel Bolt (2) » Remove

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 12

25. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

26. Body Lock Pillar Upper Trim Panel (1) » Reposition

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 13

27. Using a flat-bladed plastic trim tool, release the retaining clips.
28. Body Side Rear Window Garnish Molding (1) » Reposition

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 14

29. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 15

30. Using a flat-bladed plastic trim tool, release the retaining clips.
31. Body Rear Corner Upper Garnish Molding (1) » Reposition

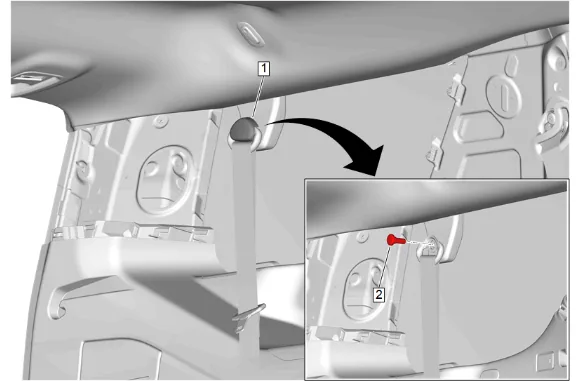

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 16

32. 3rd Row Seat Belt Guide Cover (1) » Open
33. Rear Seat Belt Guide Bolt (2) » Remove [2x]

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 17

34. 3rd Row Seat Belt Guide (1) » Reposition
35. Using a suitable trim tool, gently pry and pull downwards on the rear seat belt opening bezel  (2) to release the retaining clip on both sides of the vehicle.
36. Rear Seat Belt Opening Bezel (2) » Remove [2x]

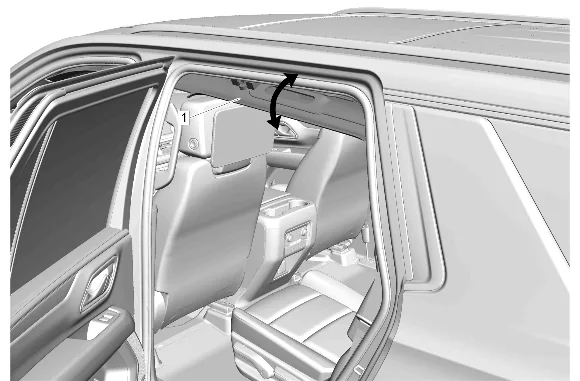

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 18

37. Lower the headlining trim panel (1).

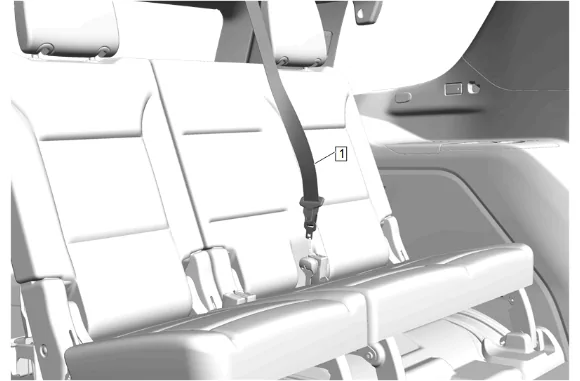

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 19

38. Disconnect the rear seat belt mini-latch (1).

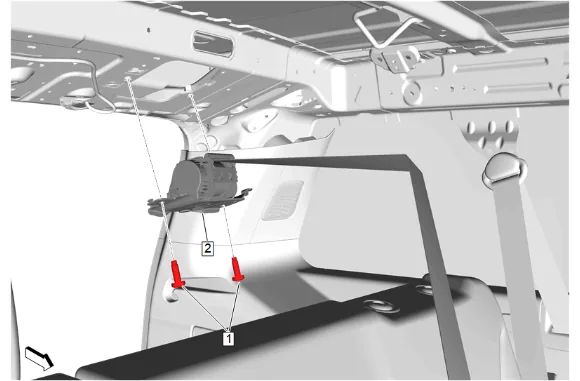

3rd Row Center Seat Belt Retractor Replacement (SWB) — figure 20

Note

Some components not shown for graphic clarity.

39. 3rd Row Center Seat Belt Retractor Bolt (1) » Remove [2x]
40. 3rd Row Center Seat Belt Retractor (2) » Remove
41. Feed the 3rd row center seat belt through the rear seat center belt opening bezel and the openings in the upper roof structure. Installation Procedure

Note

Some components not shown for graphic clarity.

1. Feed the 3rd row center seat belt through the rear seat center belt opening bezel and the openings in the upper roof structure.
2. 3rd Row Center Seat Belt Retractor (2) » Install
3. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 3.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 3.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 3.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 3.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Caution

Refer to Fastener Caution.

4. 3rd Row Center Seat Belt Retractor Bolt (1) » Install and tighten [2x] — Fastener Specifications

5. Connect the rear seat belt mini-latch (1).

6. Headlining Trim Panel (1) » Install

7. Rear Seat Belt Opening Bezel (2) » Install [2x]

8. 3rd Row Seat Belt Guide (1) » Install [2x]

9. Rear Seat Belt Guide Bolt (2) » Install and tighten [2x] — Fastener Specifications

10. 3rd Row Seat Belt Guide Cover (1) » Close

11. Body Rear Corner Upper Garnish Molding (1) » Install

12. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

Note

Position the body side rear window garnish molding tether in the same position as before the molding removal.

13. Body Side Rear Window Garnish Molding (1) » Install

14. Body Lock Pillar Upper Trim Panel (1) » Install

15. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

16. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

17. Body Rear Corner Upper Garnish Molding (1) » Install

18. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

Note

Position the body side rear window garnish molding tether in the same position as before the molding removal.

19. Body Side Rear Window Garnish Molding (1) » Install

20. Body Lock Pillar Upper Trim Panel (1) » Install

21. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

22. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

23. Center Pillar Upper Trim Panel (3) » Install [2x]

24. Center Pillar Upper Garnish Molding Bolt (2)» Install and tighten [2x] — Fastener Specifications

25. Center Pillar Upper Trim Panel Bolt Cap (1) » Install [2x]

26. Align the retaining clips (2) with the upper and lower trim panels on both sides of the vehicle.

27. Center Pillar Center Trim Panel (1) » Install [2x]

28. Coat Hook (2) » Install [4x]

29. Coat Hook Bolt (1) » Install and tighten [4x] — Fastener Specifications

30. Cargo Center Courtesy Lamp (1) » Install

31. Apply pressure upward on the cargo center courtesy lamp (1) to engage the retaining tabs.

32. Rear Seat Position Center Reading and Courtesy Lamp - Rear (1) » Install

33. Apply pressure upward on the rear seat position center reading and courtesy lamp (1) to engage the retaining tabs.
