Front Bumper Fascia Lower Molding Replacement

Removal Procedure

Front Bumper Fascia Lower Molding Replacement — figure 1

1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

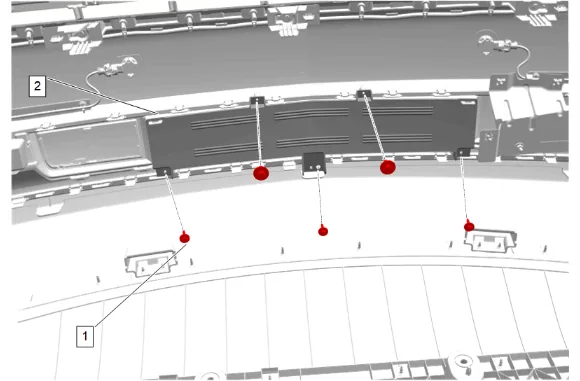

Front Bumper Fascia Lower Molding Replacement — figure 2

2. { If equipped } Front Bumper Fascia Lower Bracket Bolt (1) » Remove [3x]
3. { If equipped } Front Bumper Filler Retainer (2) Remove [2x]
4. { If equipped } Front Grille Filler (3) » Remove

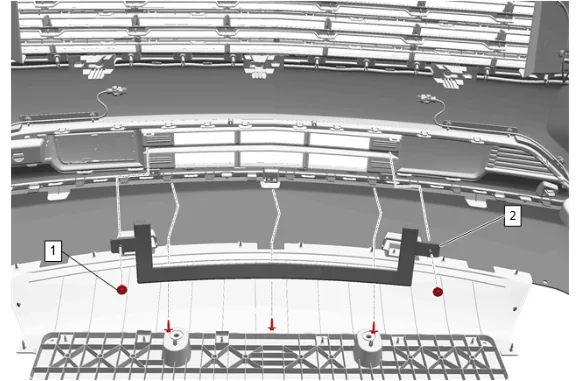

Front Bumper Fascia Lower Molding Replacement — figure 3

5. { If equipped } Front Bumper Fascia Bolt (1) » Remove [5x]
6. { If equipped } Front Bumper Fascia Seal (2) » Remove

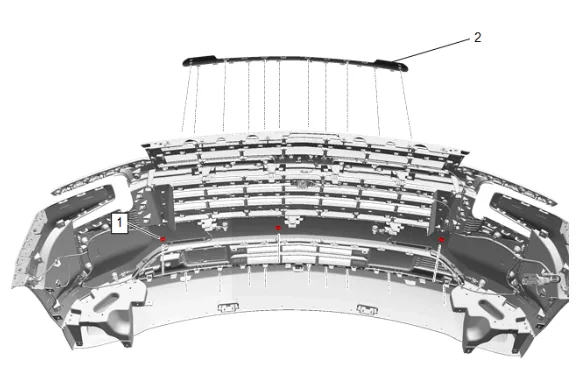

Front Bumper Fascia Lower Molding Replacement — figure 4

7. Front Bumper Fascia Molding Retainer (1) » Remove [3x]

8. Using the appropriate tool, release the front bumper fascia lower molding (2). Installation Procedure

9. Front Bumper Fascia Lower Molding (2) » Install

10. Front Bumper Fascia Molding Retainer (1) » Install [3x]

11. { If equipped } Front Grille Filler (3) » Install { If equipped }

12. { If equipped } Front Bumper Filler Retainer (2) Install [2x]

Caution

Refer to Fastener Caution.

5. { If equipped } Front Bumper Fascia Bolt (1) » Install and tighten [3x] — Fastener Specifications

6. { If equipped } Front Bumper Fascia Seal (2) » Install

7. { If equipped } Front Bumper Fascia Bolt (1) » Install and tighten [5x] — Fastener Specifications

8. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
