Bushing, Bearing, and Washer Locations

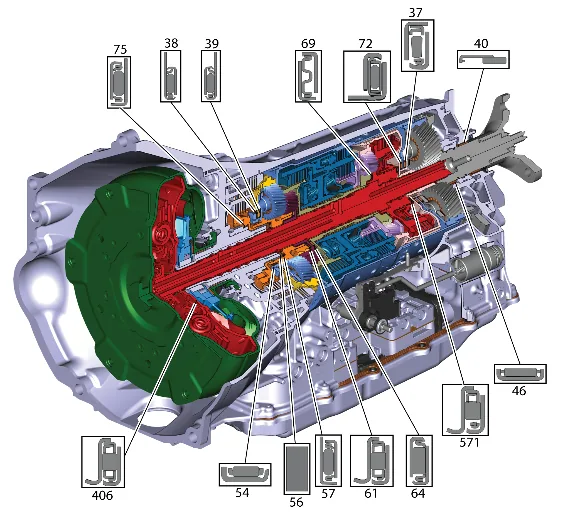

Bushing, Bearing, and Washer Locations — figure 1

(37) Output Carrier Thrust Bearing (38) Output Carrier Thrust Bearing (39) Output Carrier Thrust Bearing (40) Output Shaft Bearing (46) Output Shaft Bearing (54) Reaction Carrier Hub Bearing (56) Reaction Sun Gear Thrust Bearing (57) Reaction Sun Gear Thrust Bearing (61) Input Sun Gear Thrust Bearing (64) Input Sun Gear Thrust Bearing (69) Direct Overdrive Sun Gear Thrust Bearing (72) Output Carrier Thrust Bearing (75) Reaction Internal Gear Thrust Bearing (406) Automatic Transmission Fluid Pump Bearing (571) Output Sun Gear Thrust Bearing
