Fastener Specifications

Table 1: Rear Shock Absorber and Spring Removal and Installation Table 2: Rear Shock Absorber and Spring Removal and Installation (F47) Table 3: Rear Suspension Adjust Link Replacement Table 4: Rear Suspension Lateral Link Replacement Table 5: Rear Suspension Lower Control Arm Replacement Table 6: Rear Stabilizer Shaft Replacement Table 7: Rear Stabilizer Shaft Link Replacement Table 8: Rear Suspension Trailing Arm Replacement Table 9: Rear Wheel Bearing and Hub Replacement (ZW7) Table 10: Rear Wheel Bearing and Hub Replacement (Z56) Table 11: Rear Wheel Bearing and Hub Replacement Table 12: Shock Absorber, Shock Absorber Component, or Spring Replacement Table 13: Shock Absorber, Shock Absorber Component, or Spring Replacement (F47)

Fastener Specifications — figure 1

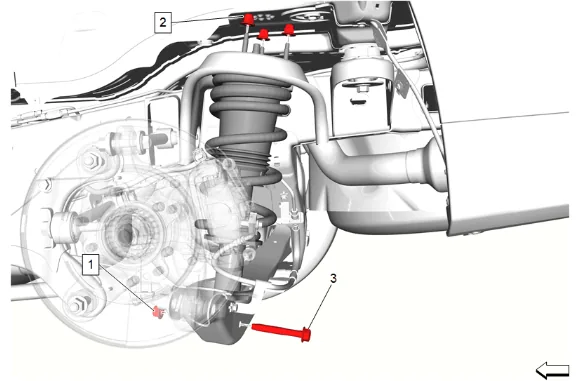

Rear Shock Absorber and Spring Removal and Installation

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Rear Shock Absorber Nut	—	—	115 Y (85 lb ft)	Rear Shock Absorber and Spring Removal
		©	2023 Gen	eral Motor	s. All rights reserved.

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
					and Installation
2	Rear Shock Absorber Nut [3x]	—	—	58 Y (43 lb ft)	Rear Shock Absorber and Spring Removal and Installation
3	Rear Shock Absorber Bolt	—	—	—	Rear Shock Absorber and Spring Removal and Installation

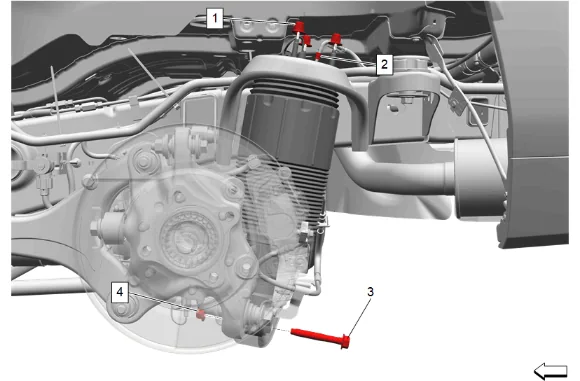

Fastener Specifications — figure 2

Rear Shock Absorber and Spring Removal and Installation (F47)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Shock Absorber Nut [3x]	—	—	58 Y (43 lb ft)	Rear Shock Absorber and Spring Removal and Installation
2	Air Line Nut	—	—	5 Y (44 lb in)	Rear Shock Absorber and Spring Removal and Installation

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
3	Rear Shock Absorber Bolt	—	—	—	Rear Shock Absorber and Spring Removal and Installation
4	Rear Shock Absorber Nut	—	—	115 Y (85 lb ft)	Rear Shock Absorber and Spring Removal and Installation

Fastener Specifications — figure 3

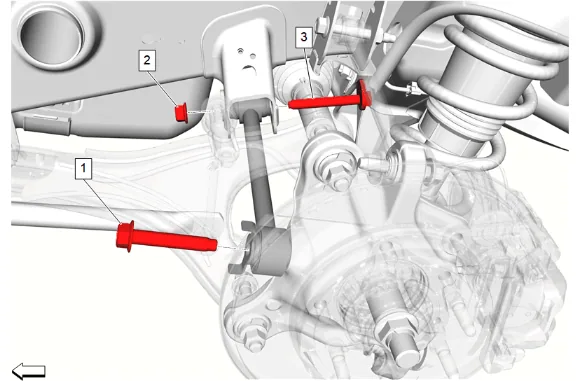

Rear Suspension Adjust Link Replacement

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Rear Suspension Link Outer Bolt	—	—	First Pass: 185 Y (137 lb ft) Final Pass: 45 - 60 degrees	Rear Suspension Adjust Link Replacement
	2	Rear Suspension Link Inner Nut	—	—	Torque to be applied during alignment.	Rear Toe Adjustment
	3	Rear Suspension Adjust Link Bolt	—	—	—	Rear Suspension Adjust Link
		©	2023 Gen	eral Motor	s. All rights reserved.	Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)

Fastener Specifications — figure 4

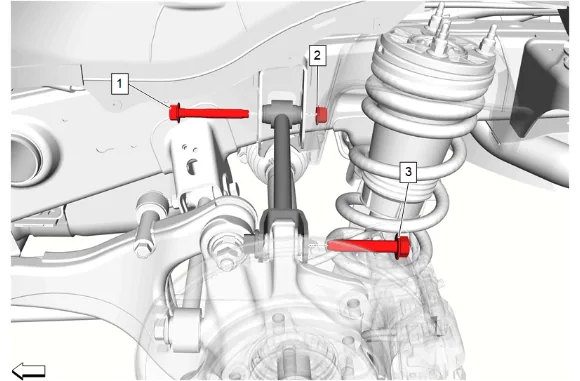

Rear Suspension Lateral Link Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Suspension Upper Control Arm Inner Bolt	—	—	115 Y (85 lb ft)	Rear Suspension Lateral Link Replacement
2	Rear Suspension Upper Control Arm Inner Nut	—	—	—	Rear Suspension Lateral Link Replacement
3	Rear Suspension Upper Control Arm Outer Bolt	—	—	160 Y (118 lb ft)	Rear Suspension Lateral Link Replacement

Fastener Specifications — figure 5

Rear Suspension Lower Control Arm Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Suspension Lower Control Arm Inner Nut	—	—	Torque to be applied during alignment.	Rear Camber Adjustment
2	Rear Suspension Lower Control Arm Outer Bolt	—	—	First Pass: 180 Y (133 lb ft) Final Pass: 90 - 105 degrees	Rear Suspension Lower Control Arm Replacement
3	Rear Suspension Lower Control Arm Inner Bolt	—	—	—	Rear Suspension Lower Control Arm Replacement

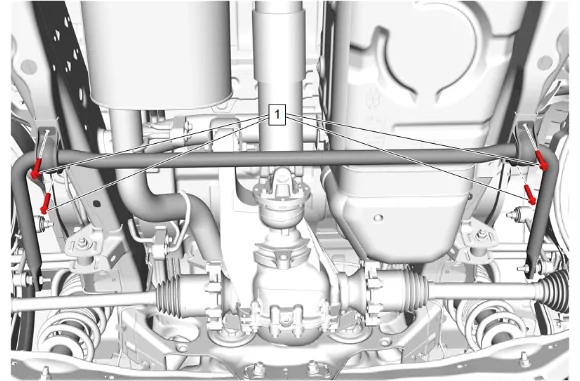

Fastener Specifications — figure 6

Rear Stabilizer Shaft Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Stabilizer Shaft Insulator Clamp Bolt [4x]	—	—	50 Y (37 lb ft)	Rear Stabilizer Shaft Replacement

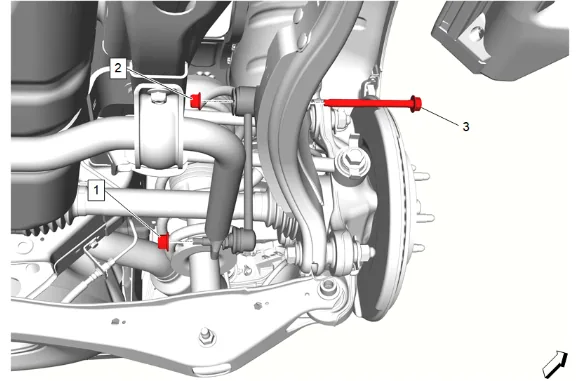

Fastener Specifications — figure 7

Rear Stabilizer Shaft Link Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Stabilizer Shaft Link Nut - Lower	—	—	100 Y (74 lb ft)	Rear Stabilizer Shaft Link Replacement
2	Rear Stabilizer Shaft Link Nut - Upper	—	—	—	Rear Stabilizer Shaft Link Replacement
3	Rear Stabilizer Shaft Link Bolt	—	—	100 Y (74 lb ft)	Rear Stabilizer Shaft Link Replacement

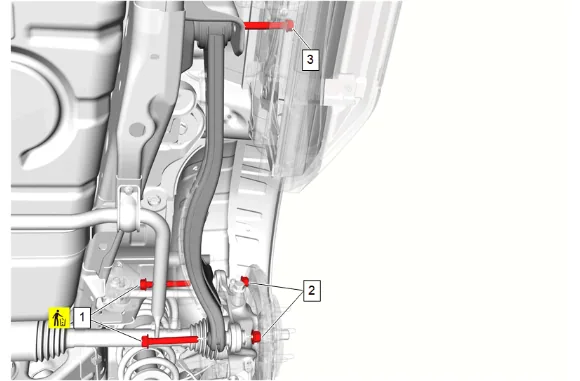

Fastener Specifications — figure 8

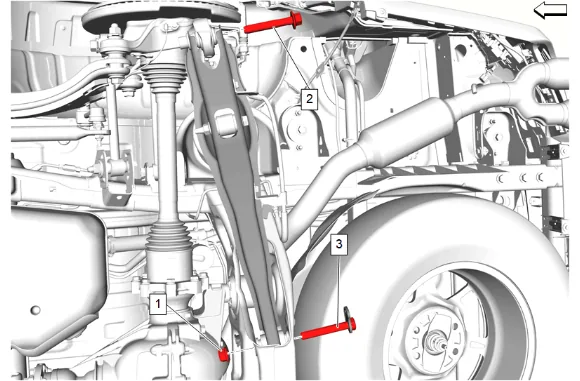

Rear Suspension Trailing Arm Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Suspension Trailing Arm Bolt [2x]	Yes	—	—	Rear Suspension Trailing Arm Replacement
2	Rear Suspension Trailing Arm Nut [2x]	—	—	First Pass: 175 Y (129 lb ft) Final Pass: 90 - 105 degrees	Rear Suspension Trailing Arm Replacement
3	Rear Suspension Trailing Arm Bracket Bolt	—	—	First Pass: 115 Y (85 lb ft) Final Pass: 90 - 105 degrees	Rear Suspension Trailing Arm Replacement

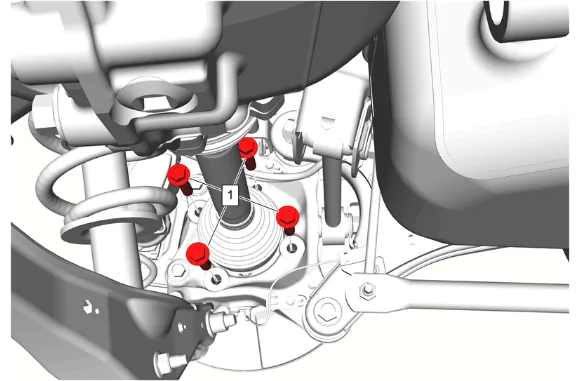

Fastener Specifications — figure 9

Rear Wheel Bearing and Hub Replacement (ZW7)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Wheel Hub Bolt [4x]	—	—	First pass: 150 Y (111 lb ft) Final Pass: 30 - 45 degrees	Rear Wheel Hub Replacement

Fastener Specifications — figure 10

Rear Wheel Bearing and Hub Replacement (Z56)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Wheel Hub Bolt [4x]	Yes	—	First Pass: 180 Y (133 lb ft) Final Pass: 30 - 45 degrees	Rear Wheel Hub Replacement

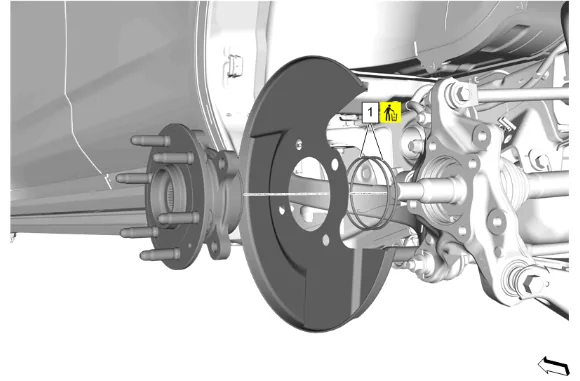

Fastener Specifications — figure 11

Rear Wheel Bearing and Hub Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Wheel Hub Seal [2x]	Yes	—	—	Rear Wheel Hub Replacement

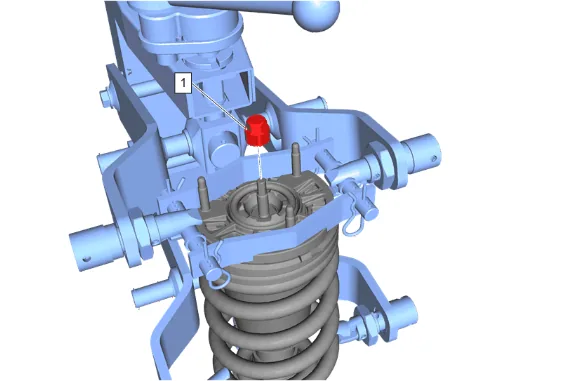

Fastener Specifications — figure 12

Shock Absorber, Shock Absorber Component, or Spring Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Suspension Strut Nut	—	—	70 Y (52 lb ft)	Shock Absorber, Shock Absorber Component, or Spring Replacement

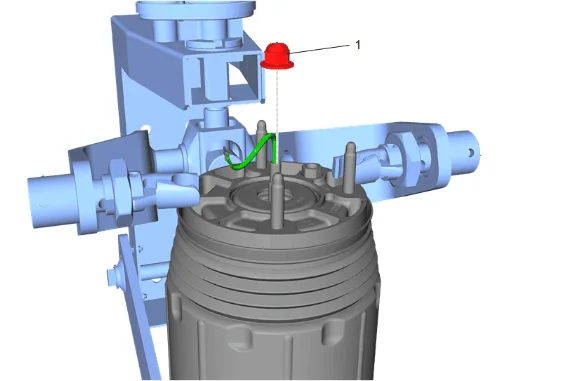

Fastener Specifications — figure 13

Shock Absorber, Shock Absorber Component, or Spring Replacement (F47)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Suspension Strut Nut	—	—	70 Y (52 lb ft)	Shock Absorber, Shock Absorber Component, or Spring Replacement
2	Rear Air Spring Valve	—	—	8 Y (71 lb in)	Shock Absorber, Shock Absorber Component, or Spring Replacement
