Instrument Panel Lower Trim Panel Replacement - Left Side

Instrument Panel Lower Trim Panel Replacement - Left Side Removal Procedure

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Applique (1) » Remove

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 5

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Instrument Panel Center Trim Plate Applique (1) » Remove

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 6

11. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
12. Using a flat-bladed plastic trim tool, release the retaining clips.
13. Disconnect the electrical connector.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

14. Instrument Panel Trim Pad (2) » Remove

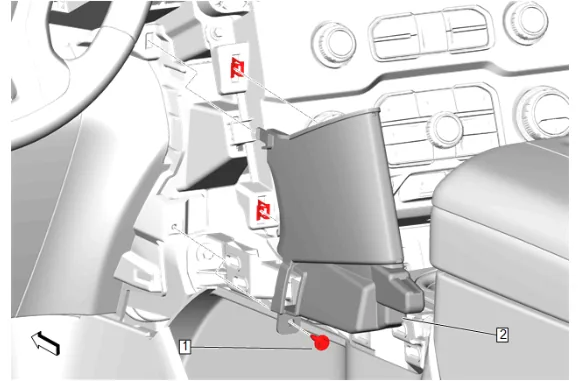

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 7

15. Using a flat-bladed plastic trim tool, release the retaining clips.
16. Instrument Panel Lower Trim Panel Bolt (1) » Remove
17. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 8

18. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 9

19. Using a flat-bladed plastic trim tool, release the retaining clips.
20. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 10

21. Using a flat-bladed plastic trim tool, release the retaining clips.
22. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 11

23. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
24. Disconnect the electrical connectors.
25. Instrument Panel Trim Pad (2) » Remove

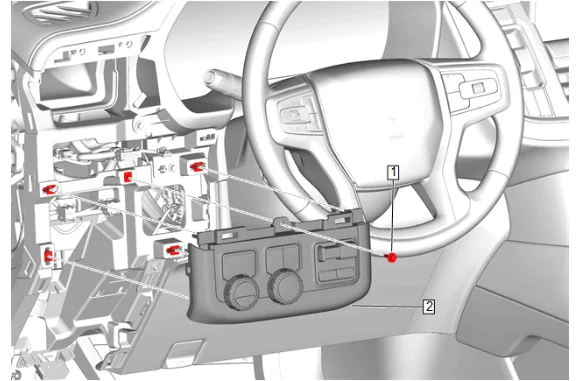

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 12

26. Instrument Panel Switch Trim Plate Bolt (1) » Remove
27. Disconnect the electrical connectors.
28. Instrument Panel Switch Trim Plate (2) » Remove

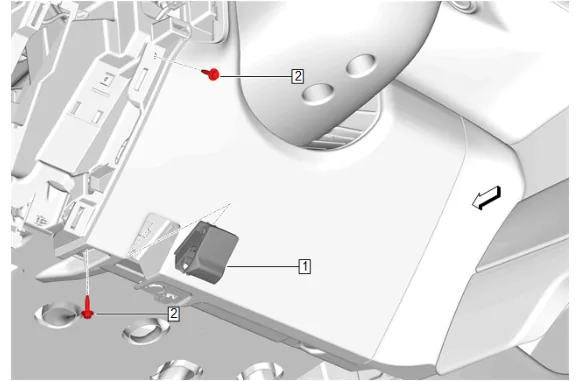

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 13

29. Hood Primary Latch Release Cable Handle (1) » Release
30. Instrument Panel Knee Bolster Bolt (2) » Remove [2x]

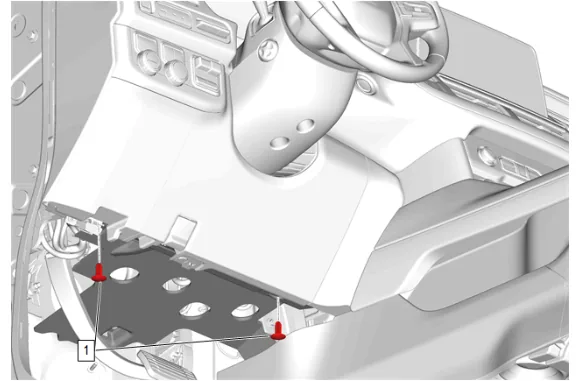

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 14

31. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

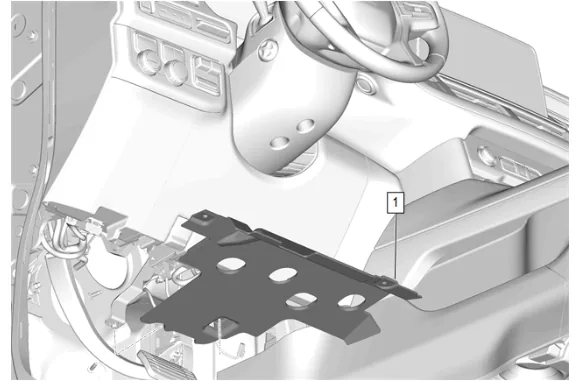

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 15

32. Instrument Panel Lower Trim Panel Insulator (1) » Remove

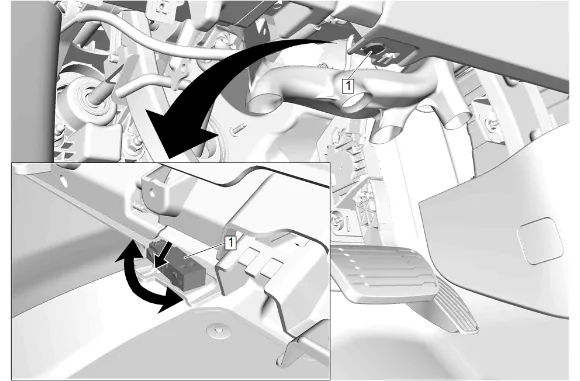

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 16

33. Release the retaining tab.
34. Rotate the front floor courtesy lamp (1) a quarter turn counterclockwise to release.

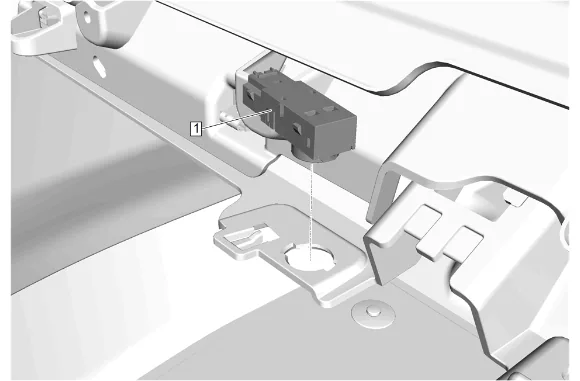

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 17

35. Front Floor Courtesy Lamp (1) » Remove
36. Disconnect the electrical connector.

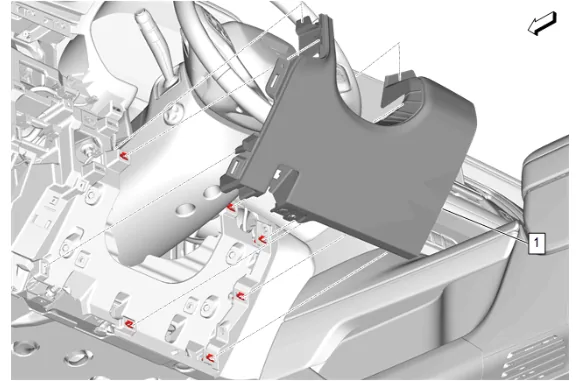

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 18

Note

You may have to push down on the lower steering column closeout to clear the instrument panel cluster trim plate.

37. Instrument Panel Knee Bolster (1) » Remove

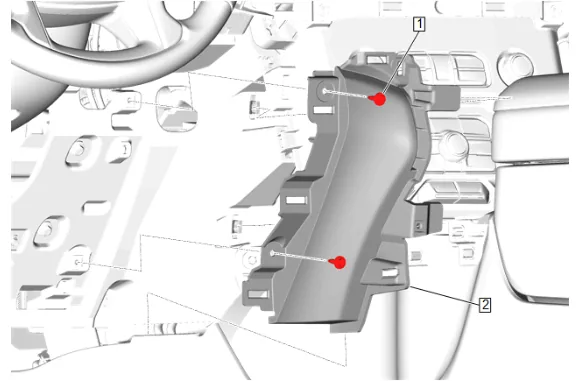

Instrument Panel Lower Trim Panel Replacement - Left Side — figure 19

38. Instrument Panel Lower Trim Panel Bolt (1) » Remove [2x]

Note

Use a plastic trim tool if necessary.

39. Instrument Panel Lower Trim Panel (2) » Remove Installation Procedure

40. Instrument Panel Lower Trim Panel (2) » Install

Caution

Refer to Fastener Caution.

2. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Instrument Panel Knee Bolster (1) » Install

4. Connect the electrical connector.

5. Front Floor Courtesy Lamp (1) » Install

6. Rotate the front floor courtesy lamp (1) a quarter turn clockwise to secure.

7. Secure the retaining tab.

8. Instrument Panel Lower Trim Panel Insulator (1) » Install

9. Instrument Panel Lower Insulator Retainer (1) » Install [2x]

10. Instrument Panel Knee Bolster Bolt (2) » Install and tighten [2x] — Fastener Specifications

11. Hood Primary Latch Release Cable Handle (1) » Install

12. Connect the electrical connectors.

13. Instrument Panel Switch Trim Plate (2) » Install

14. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

15. Connect the electrical connectors.

16. Instrument Panel Trim Pad (2) » Install

17. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

18. Instrument Panel Trim Plate Applique (1) » Install

19. Instrument Panel Fuse Block Access Hole Cover (1) » Install

20. Instrument Panel Lower Trim Panel Outer Filler (1) » Install

21. Instrument Panel Lower Center Trim Plate Applique (2) » Install

22. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

23. Connect the electrical connector.

24. Instrument Panel Trim Pad (2) » Install

25. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

26. Instrument Panel Center Trim Plate Applique (1) » Install

27. Instrument Panel Trim Plate Applique (1) » Install

28. Instrument Panel Fuse Block Access Hole Cover (1) » Install

29. Front Floor Console Applique (1) » Install

30. Front Floor Console Lower Applique (1) » Install
