Fastener Specifications

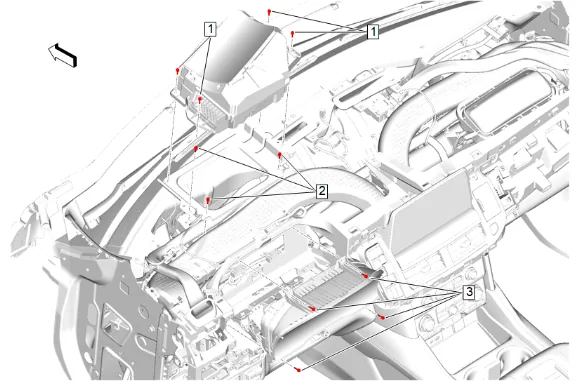

Fastener Specifications — figure 1

Display and Gauges

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Head-Up Display Bolt [4x]	—	—	2.5 Y (22 lb in)	Head-Up Display Replacement
2	Head-Up Display Bracket Bolt [3x]	—	—	2.5 Y (22 lb in)	Head-Up Display Bracket Replacement
3	Instrument Cluster Bolt [4x]	—	—	2.5 Y (22 lb in)	Instrument Cluster Replacement
