High/Low Shift Components Cleaning and Inspection

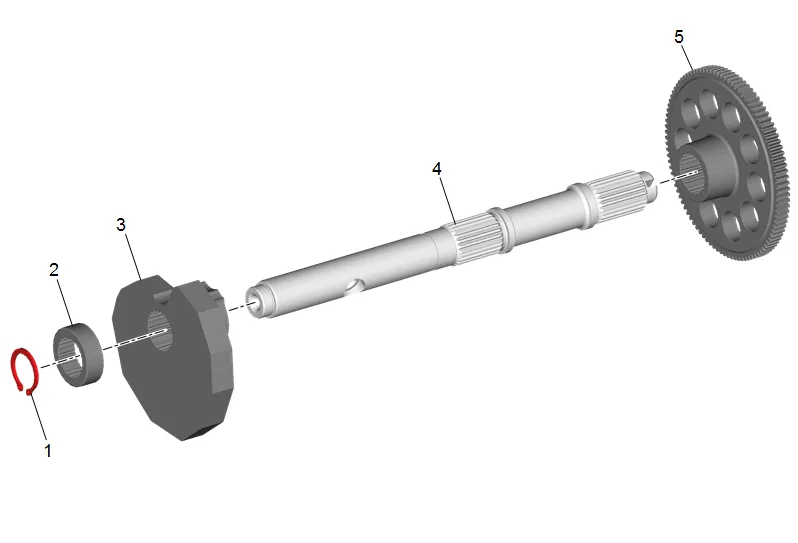

High_Low Shift Components Cleaning and Inspection (1) — figure 1

1. Inspect all components or sub-components and perform any repair procedure necessary to fix the damage. If the damage cannot be repaired, replace the component or sub-component as indicated.
2. Clean all components in cleaning solvent and air dry.
3. Inspect the transfer case actuator cam retaining ring (1) for ring for wear or damage.
4. Inspect the transfer case actuator cam spacer (2) for wear or damage.
5. Inspect the transfer case actuator cam (3) for wear on the roller surface and damage to the splines. Witness marks on the splines are normal.
6. Inspect the transfer case control actuator shaft (4) for excessive wear. The component must be replaced if damage is found.
7. Transfer case actuator shaft gear teeth (5) 7.1. Inspect for chipped teeth, excessively worn gear surfaces, and debris embedded in the root of the teeth. 7.2. Inspect the shaft splines for excessive wear. Witness marks on the splines are normal.
