Rear Seat Wiring Harness Replacement (40 Percent, Bucket)

Rear Seat Wiring Harness Replacement (40 Percent, Bucket) Removal Procedure

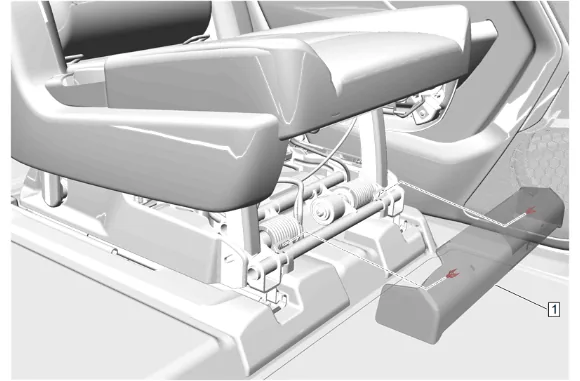

Rear Seat Wiring Harness Replacement (40 Percent, Bucket) — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Rear Seat Riser Finish Cover (1) » Remove

Rear Seat Wiring Harness Replacement (40 Percent, Bucket) — figure 2

3. Reposition the seat as necessary.
4. Using a flat-bladed plastic trim tool, release the retaining clip.
5. Rear Seat Riser Finish Cover (1) » Remove [2x]

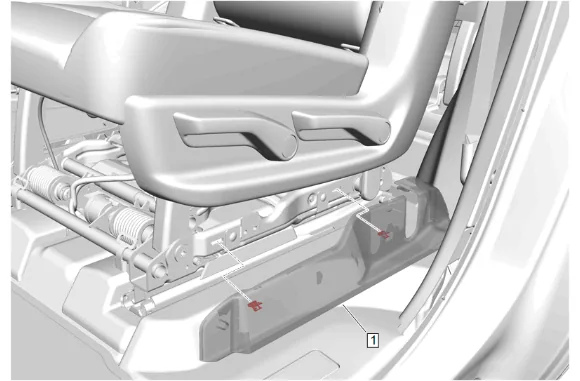

Rear Seat Wiring Harness Replacement (40 Percent, Bucket) — figure 3

6. Using a flat-bladed plastic trim tool, release the retaining clips.
7. Using a suitable plastic trim tool, release the retaining tabs.
8. Rear Seat Riser Inner Finish Cover - Outboard (1) » Remove

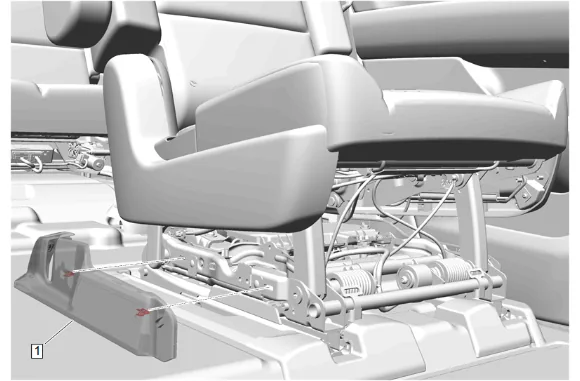

Rear Seat Wiring Harness Replacement (40 Percent, Bucket) — figure 4

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Using a suitable plastic trim tool, release the retaining tabs.
11. Rear Seat Riser Inner Finish Cover - Inboard (1) » Remove

Rear Seat Wiring Harness Replacement (40 Percent, Bucket) — figure 5

12. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]
13. Release the J-channel retainers from the rear seat cushion cover and rear seat cushion trim panel (2).

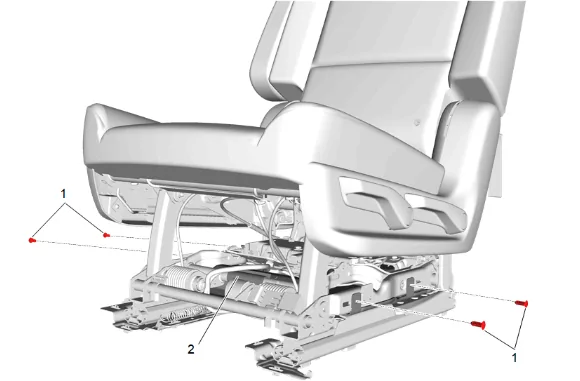

Rear Seat Wiring Harness Replacement (40 Percent, Bucket) — figure 6

14. Release the remaining J-channel retainers on the rear seat cushion trim panel (2).
15. Rear Seat Back Opening Finish Cover Retainer (1) » Remove [4x]

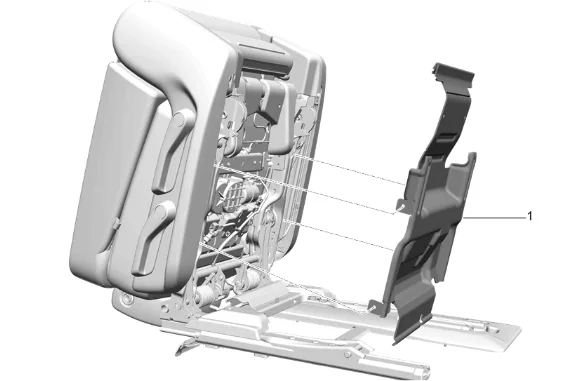

Rear Seat Wiring Harness Replacement (40 Percent, Bucket) — figure 7

16. Place the rear seat in the fold and tumble position.
17. Rear Seat Cushion Trim Panel (1) » Remove

Rear Seat Wiring Harness Replacement (40 Percent, Bucket) — figure 8

Note

Typical wiring harness shown, individual harness may be different due to option content. Various seat components may need to be removed from the seat to access the harness depending on seat and content options.

18. Disconnect the electrical connectors and release the wiring harness retainers as necessary.

19. Rear Seat Wiring Harness (1) » Remove Installation Procedure

20. Rear Seat Wiring Harness (1) » Install

21. Connect the electrical connectors and install the wiring harness retainers as necessary.

22. Rear Seat Cushion Trim Panel (1) » Install

23. Return the rear seat to the original position.

24. Rear Seat Back Opening Finish Cover Retainer (1) » Install [4x]

25. Secure the J-channel retainers on the rear seat cushion trim panel (2).

26. Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel (2).

27. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]

28. Rear Seat Riser Inner Finish Cover - Inboard (1) » Install

29. Rear Seat Riser Inner Finish Cover - Outboard (1) » Install

30. Rear Seat Riser Finish Cover (1) » Install [2x]

31. Return the seat to its original position.

32. Rear Seat Riser Finish Cover (1) » Install
