Multifunction Power Supply Converter Bracket Replacement

Multifunction Power Supply Converter Bracket Replacement Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Multifunction Power Supply Converter Bracket Replacement — figure 1
Multifunction Power Supply Converter Bracket Replacement — figure 1

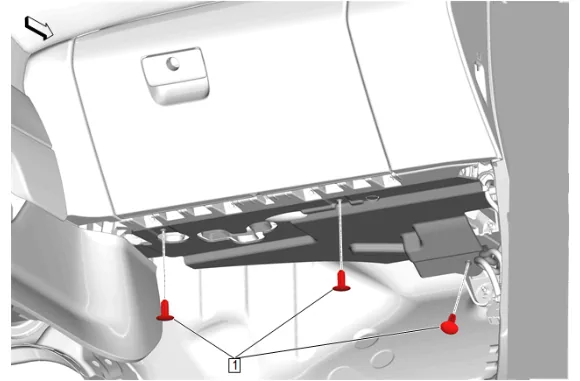

  1. { If equipped } Instrument Panel Lower Insulator Retainer (1) » Remove [3x]
Multifunction Power Supply Converter Bracket Replacement — figure 2
Multifunction Power Supply Converter Bracket Replacement — figure 2

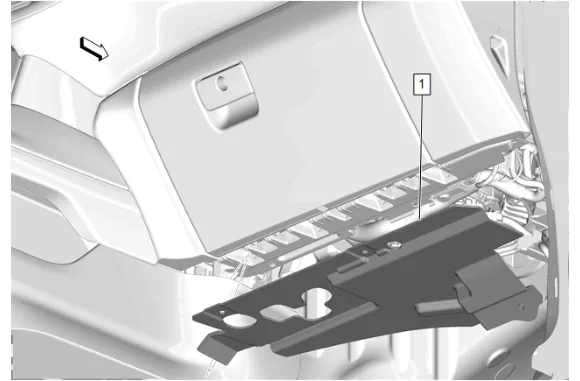

  1. { If equipped } Instrument Panel Lower Trim Panel Insulator (1) » Remove
Multifunction Power Supply Converter Bracket Replacement — figure 3
Multifunction Power Supply Converter Bracket Replacement — figure 3

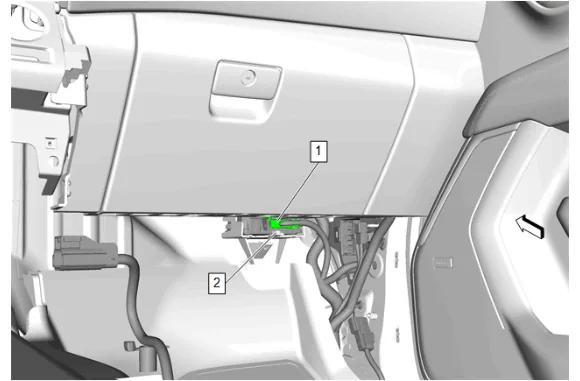

  1. Electrical Connector (1) » Disconnect
  2. Retaining Tab (2) » Disengage
Multifunction Power Supply Converter Bracket Replacement — figure 4
Multifunction Power Supply Converter Bracket Replacement — figure 4

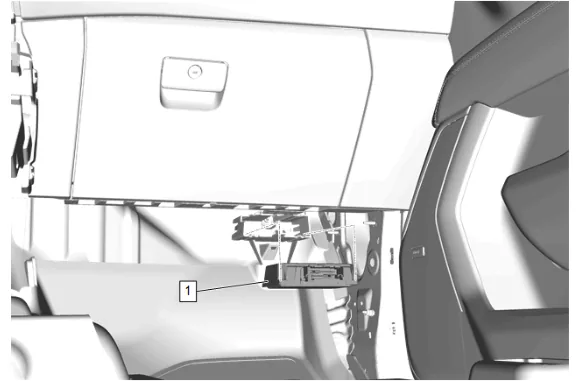

  1. Multifunction Power Supply Converter (1) » Remove
Multifunction Power Supply Converter Bracket Replacement — figure 5
Multifunction Power Supply Converter Bracket Replacement — figure 5

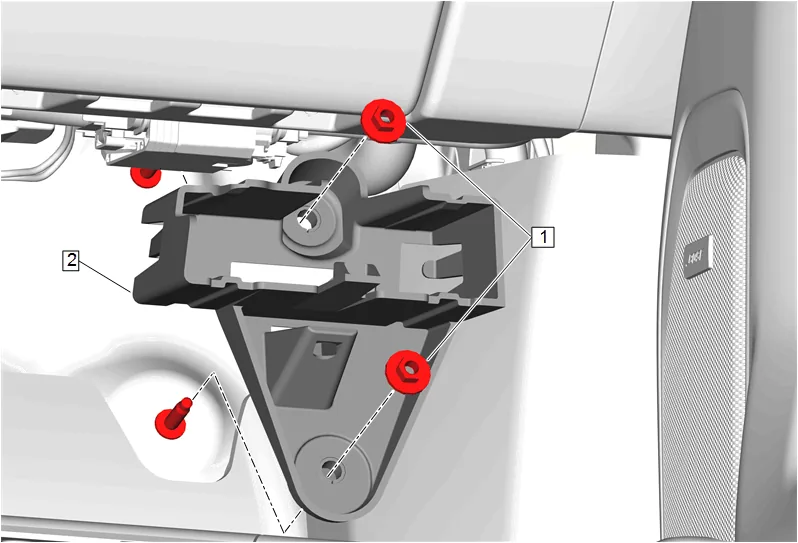

  1. Multifunction Power Supply Converter Nut (1) » Remove [2x]

  2. Multifunction Power Supply Converter Bracket (2) » Remove Installation Procedure

  3. Multifunction Power Supply Converter Bracket (2) » Install

  1. Multifunction Power Supply Converter Nut (1) » Install and tighten [2x] — Fastener Specifications

  2. Multifunction Power Supply Converter (1) » Install

  3. Electrical Connector (1) » Connect

  4. Retaining Tab (2) » Engage

  5. { If equipped } Instrument Panel Lower Trim Panel Insulator (1) » Install

  6. { If equipped } Instrument Panel Lower Insulator Retainer (1) » Install [3x]

  7. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
