Instrument Panel Outer Air Outlet Duct Replacement - Right Side

Instrument Panel Outer Air Outlet Duct Replacement - Right Side Removal Procedure

Warning

Refer to SIR Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 1

2. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 4

7. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
8. Instrument Panel Trim Pad (2) » Remove
9. Disconnect the electrical connectors.

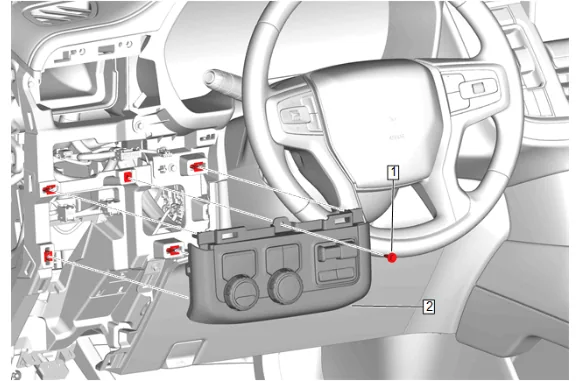

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 5

10. Instrument Panel Switch Trim Plate Bolt (1) » Remove
11. Disconnect the electrical connectors.
12. Instrument Panel Switch Trim Plate (2) » Remove

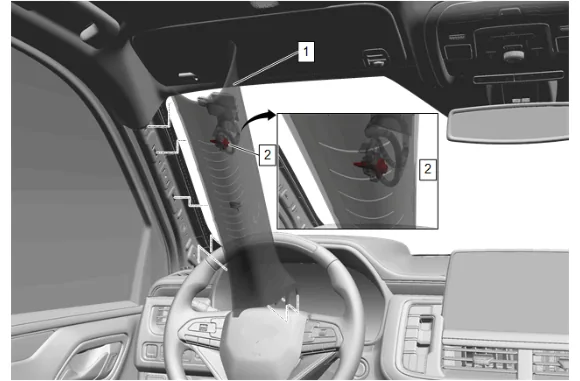

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 6

13. Pull down the windshield garnish molding (1) rearwards to release the tether from the A pillar.
14. Access the windshield garnish bolt (2) which is located on the backside of the windshield garnish molding (1) and secures the tether to the A pillar.
15. Windshield Garnish Molding Bolt (2) » Remove
16. Windshield Garnish Molding (1) » Remove

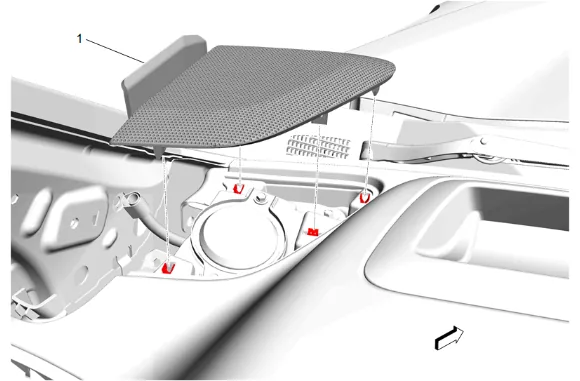

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 7

17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Radio Front Speaker Grille (1) » Remove

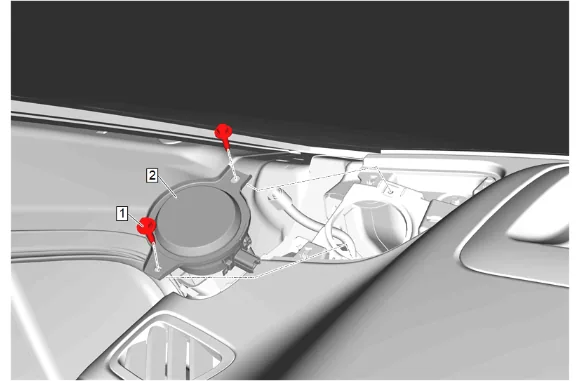

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 8

19. Radio Front Speaker Bolt (1) » Remove [2x]
20. Radio Front Speaker (2) » Remove
21. Disconnect the electrical connector.

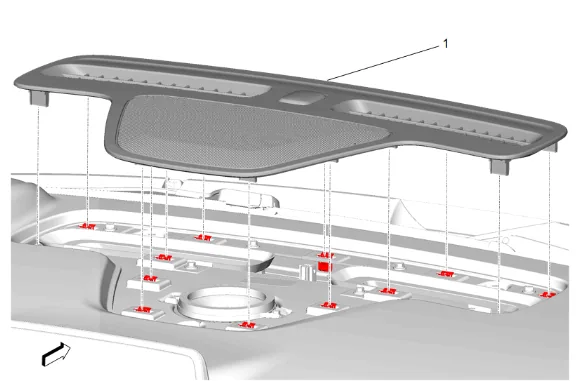

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 9

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Instrument Panel Extension (1) » Remove
24. Disconnect the electrical connector.

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 10

25. Radio Front Center Speaker Bolt (1) » Remove [2x]
26. Radio Front Center Speaker (2) » Remove
27. Disconnect the electrical connector.

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 11

28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 12

30. Using a flat-bladed plastic trim tool, release the retaining clips.
31. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 13

32. Using a flat-bladed plastic trim tool, release the retaining clips.
33. Instrument Panel Center Trim Plate Applique (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 14

34. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
35. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

36. Instrument Panel Trim Pad (2) » Remove
37. Disconnect the electrical connector.

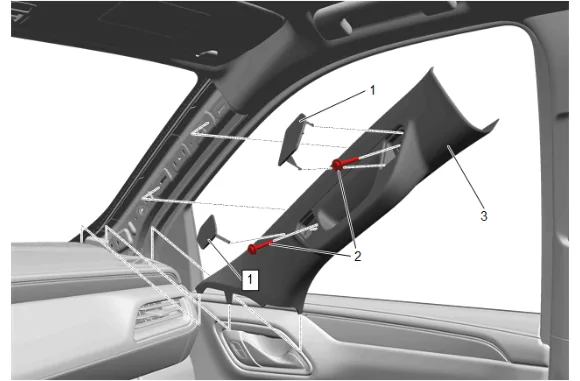

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 15

38. Windshield Pillar Assist Handle Cover (1) » Remove [2x]
39. Windshield Pillar Assist Handle Bolt (2) » Remove [2x]
40. Windshield Garnish Molding (3) » Remove

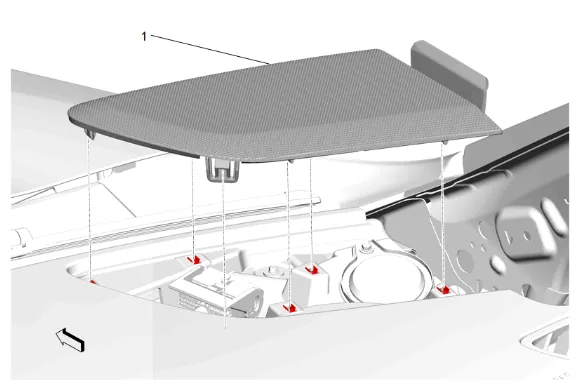

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 16

41. Using a flat-bladed plastic trim tool, release the retaining clips.
42. Radio Front Speaker Grille (1) » Remove

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 17

43. Radio Front Speaker Bolt (1) » Remove [2x]
44. Radio Front Speaker (2) » Remove
45. Disconnect the electrical connector.

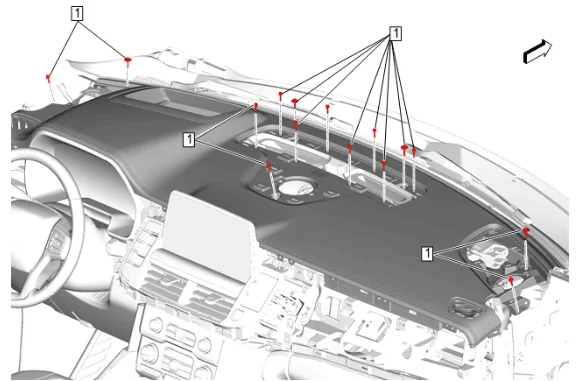

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 18

46. Instrument Panel Upper Trim Panel Bolt (1) » Remove [15x]
47. Disconnect the electrical connector.

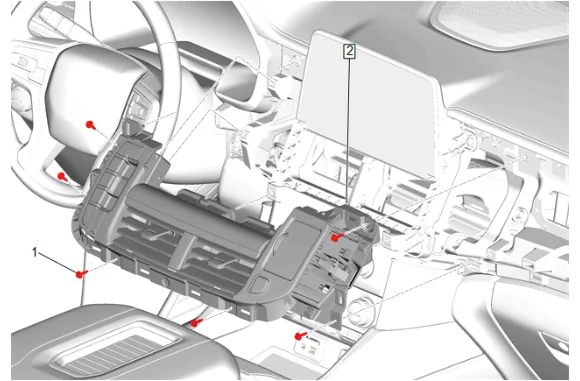

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 19

48. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
49. Instrument Panel Transmission Shift Opening Cover (2) » Remove
50. Disconnect the electrical connectors.

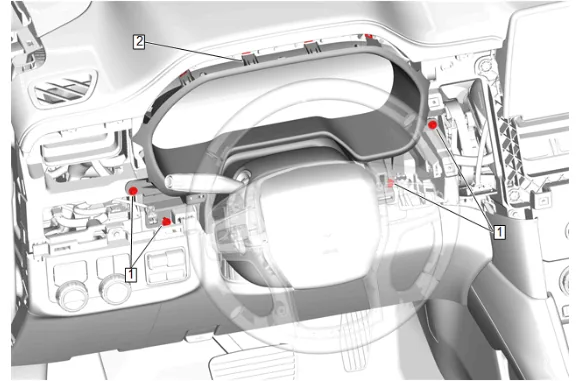

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 20

51. Instrument Panel Cluster Trim Plate Bolt (1) » Loosen [4x]
52. Using a flat-bladed plastic trim tool, release the retaining clips.
53. Instrument Panel Cluster Trim Plate (2) » Loosen

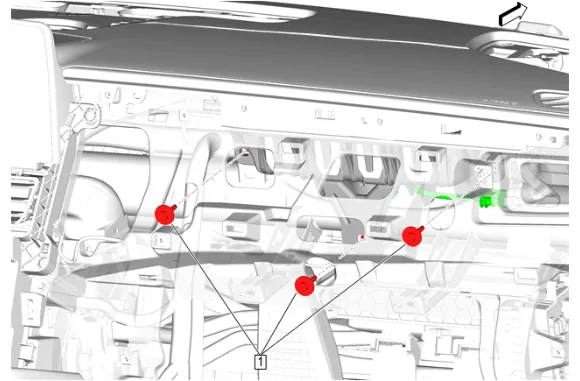

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 21

54. Instrument Panel Airbag Bolt (1) » Remove [3x]
55. Disconnect the electrical connector.

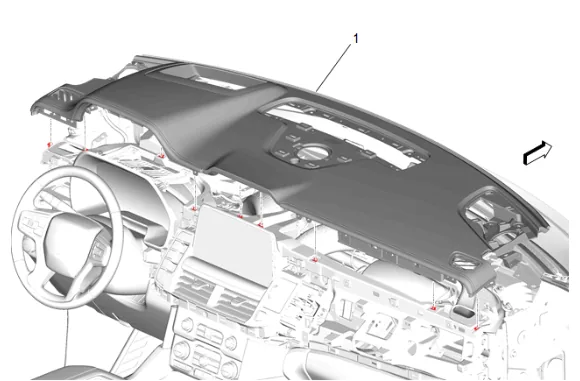

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 22

56. Instrument Panel Upper Trim Panel (1) » Remove
57. With the aid of an assistant remove the instrument panel upper trim panel (1) from the vehicle.

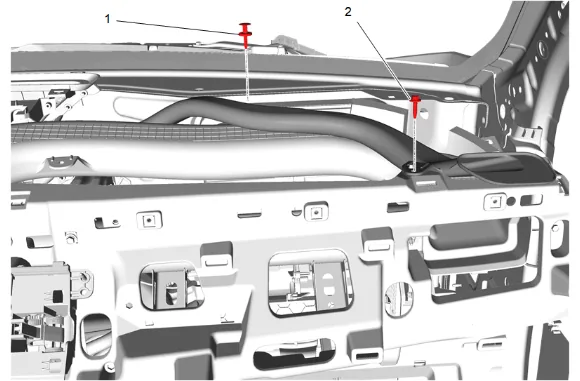

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 23

58. Side Window Defogger Outlet Duct Retainer (1) » Remove
59. Side Window Defogger Outlet Duct Bolt (2) » Remove

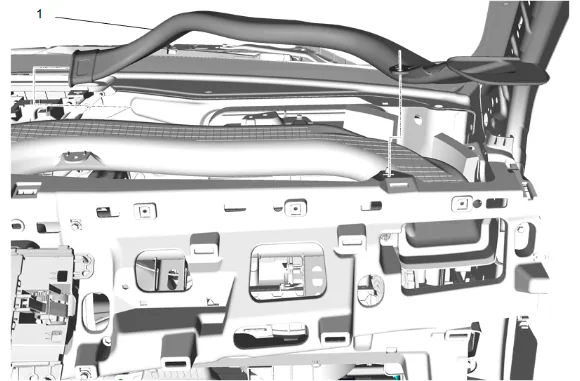

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 24

60. Side Window Defogger Outlet Duct - Right Side (1) » Remove

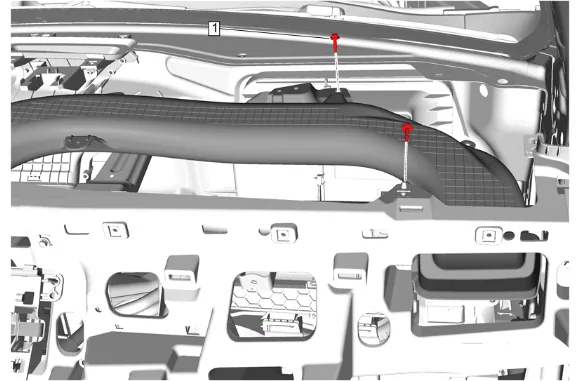

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 25

61. Instrument Panel Outer Air Outlet Bolt (1) » Remove [2x]
62. Remove the wiring harness retainers form the right instrument panel outer air outlet duct.

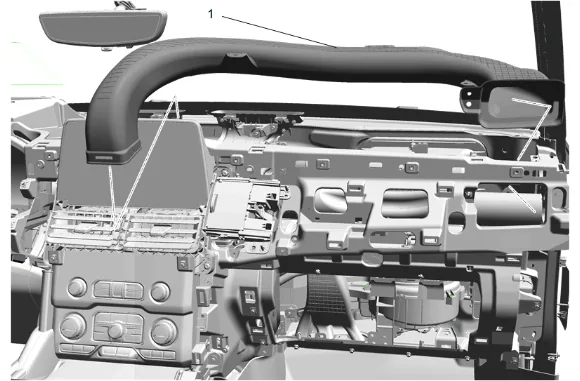

Instrument Panel Outer Air Outlet Duct Replacement - Right Side — figure 26

63. Instrument Panel Outer Air Outlet Duct - Right Side (1) » Remove Installation Procedure

64. Instrument Panel Outer Air Outlet Duct - Right Side (1) » Install

Caution

Refer to Fastener Caution.

2. Instrument Panel Outer Air Outlet Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Install the wiring harness retainers onto the right instrument panel outer air outlet duct.

4. Side Window Defogger Outlet Duct - Right Side (1) » Install

5. Side Window Defogger Outlet Duct Bolt (2) » Install and tighten — Fastener Specifications

6. Side Window Defogger Outlet Duct Retainer (1) » Install

7. With the aid of an assistant install the instrument panel upper trim panel (1) into the vehicle.

8. Connect the electrical connector.

9. Instrument Panel Upper Trim Panel (1) » Install

10. Connect the electrical connector.

11. Instrument Panel Airbag Bolt (1) » Install and tighten [3x] — Fastener Specifications

12. Instrument Panel Cluster Trim Plate (2) » Install

13. Instrument Panel Cluster Trim Plate Bolt (1) » Install and tighten [4x] — Fastener Specifications

14. Connect the electrical connectors.

15. Instrument Panel Transmission Shift Opening Cover (2) » Install

16. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

17. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [15x] — Fastener Specifications

18. Connect the electrical connector.

19. Radio Front Speaker (2) » Install

20. Radio Front Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

21. Radio Front Speaker Grille (1) » Install

22. Windshield Garnish Molding (3) » Install

23. Windshield Pillar Assist Handle Bolt (2) » Install and tighten [2x] — Fastener Specifications

24. Windshield Pillar Assist Handle Cover (1) » Install [2x]

25. Connect the electrical connector.

26. Instrument Panel Trim Pad (2) » Install

27. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

28. Instrument Panel Center Trim Plate Applique (1) » Install

29. Instrument Panel Trim Plate Applique (1) » Install

30. Instrument Panel Fuse Block Access Hole Cover (1) » Install

31. Connect the electrical connector.

32. Radio Front Center Speaker (2) » Install

33. Radio Front Center Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

34. Connect the electrical connector.

35. Instrument Panel Extension (1) » Install

36. Connect the electrical connector.

37. Radio Front Speaker (2) » Install

38. Radio Front Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

39. Radio Front Speaker Grille (1) » Install

40. Windshield Garnish Molding Bolt (2) » Install and tighten — Fastener Specifications

41. Align the retaining clips with the slots in the A pillar and press the windshield garnish molding  (1) into place.

42. Windshield Garnish Molding (1) » Install

43. Instrument Panel Switch Trim Plate (2) » Install

44. Connect the electrical connectors.

45. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

46. Connect the electrical connectors.

47. Instrument Panel Trim Pad (2) » Install

48. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

49. Instrument Panel Trim Plate Applique (1) » Install

50. Instrument Panel Fuse Block Access Hole Cover (1) » Install

51. Instrument Panel Lower Trim Panel Outer Filler (1) » Install

52. Enable the SIR System. SIR Disabling and Enabling
