Floor Front Air Outlet Duct Replacement - Right Side

Removal Procedure

Floor Front Air Outlet Duct Replacement - Right Side — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

Floor Front Air Outlet Duct Replacement - Right Side — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Applique (1) » Remove

Floor Front Air Outlet Duct Replacement - Right Side — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Floor Front Air Outlet Duct Replacement - Right Side — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Instrument Panel Trim Plate Applique (1) » Remove

Floor Front Air Outlet Duct Replacement - Right Side — figure 5

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Instrument Panel Center Trim Plate Applique (1) » Remove

Floor Front Air Outlet Duct Replacement - Right Side — figure 6

11. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
12. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

13. Instrument Panel Trim Pad (2) » Remove
14. Disconnect the electrical connector.

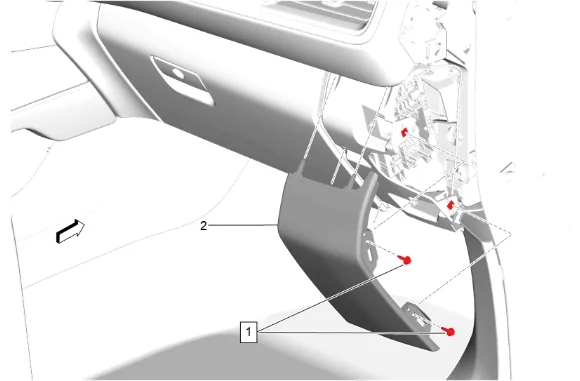

Floor Front Air Outlet Duct Replacement - Right Side — figure 7

15. Instrument Panel Compartment Bolt (1) » Remove [2x]
16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Instrument Panel Lower Trim Panel Outer Filler (2) » Remove

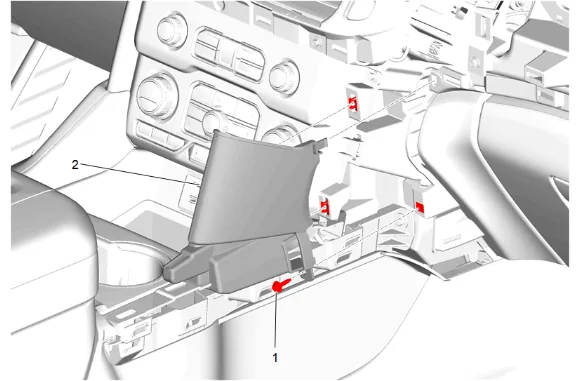

Floor Front Air Outlet Duct Replacement - Right Side — figure 8

18. Instrument Panel Lower Trim Panel Bolt (1) » Remove
19. Using a flat-bladed plastic trim tool, release the retaining clips.
20. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

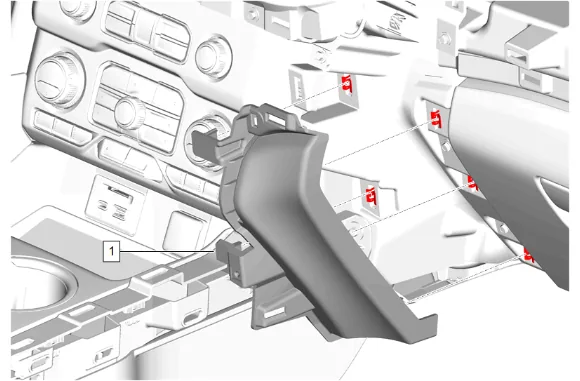

Floor Front Air Outlet Duct Replacement - Right Side — figure 9

21. Using a flat-bladed plastic trim tool, release the retaining clips.
22. Instrument Panel Lower Trim Panel (1) » Remove

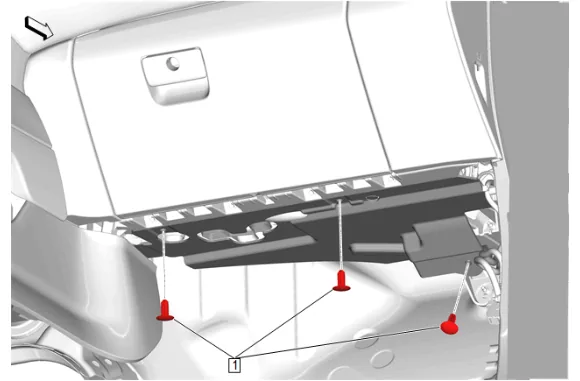

Floor Front Air Outlet Duct Replacement - Right Side — figure 10

23. Instrument Panel Lower Insulator Retainer (1) » Remove [3x]

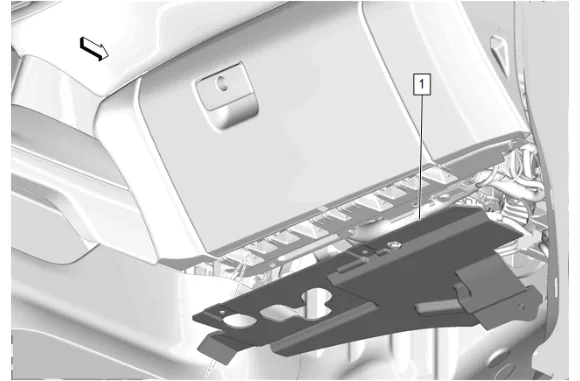

Floor Front Air Outlet Duct Replacement - Right Side — figure 11

24. Instrument Panel Lower Trim Panel Insulator (1) » Remove

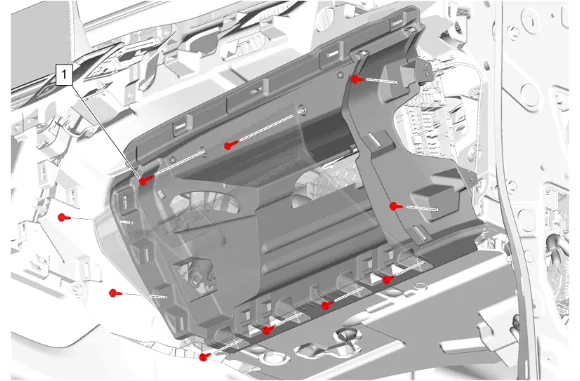

Floor Front Air Outlet Duct Replacement - Right Side — figure 12

25. Instrument Panel Compartment Bolt (1) » Remove [10x]

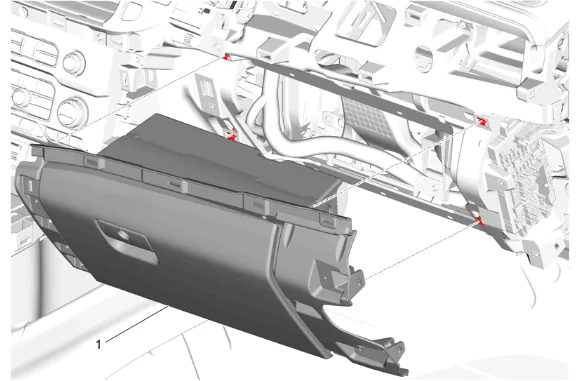

Floor Front Air Outlet Duct Replacement - Right Side — figure 13

26. Instrument Panel Compartment (1) » Remove

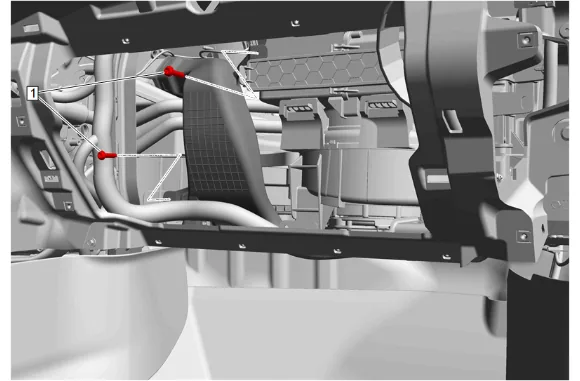

Floor Front Air Outlet Duct Replacement - Right Side — figure 14

27. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [2x]

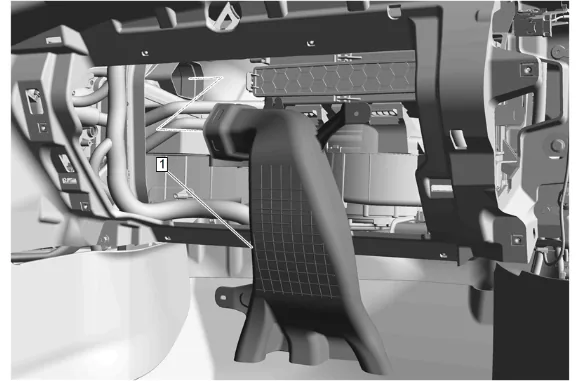

Floor Front Air Outlet Duct Replacement - Right Side — figure 15

28. Unclip the wiring harness from the floor front air outlet duct.

29. Floor Front Air Outlet Duct - Right Side (1) » Remove Installation Procedure

30. Floor Front Air Outlet Duct - Right Side (1) » Install

31. Clip the wiring harness onto the floor front air outlet duct.

Caution

Refer to Fastener Caution.

3. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. Instrument Panel Compartment (1) » Install

5. Instrument Panel Compartment Bolt (1) » Install and tighten [10x] — Fastener Specifications

6. Instrument Panel Lower Trim Panel Insulator (1) » Install

7. Instrument Panel Lower Insulator Retainer (1) » Install [3x]

8. Instrument Panel Lower Trim Panel (1) » Install

9. Instrument Panel Lower Center Trim Plate Applique (2) » Install

10. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

11. Instrument Panel Lower Trim Panel Outer Filler (2) » Install

12. Instrument Panel Compartment Bolt (1) » Install and tighten [2x] — Fastener Specifications

13. Connect the electrical connector.

14. Instrument Panel Trim Pad (2) » Install

15. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

16. Instrument Panel Center Trim Plate Applique (1) » Install

17. Instrument Panel Trim Plate Applique (1) » Install

18. Instrument Panel Fuse Block Access Hole Cover (1) » Install

19. Front Floor Console Applique (1) » Install

20. Front Floor Console Lower Applique (1) » Install
