Tahoe / Yukon Service Manual

Heater Replacement

Single Use Fasteners and Components Air Conditioning Evaporator Seal - Small Air Conditioning Evaporator Seal - Large Air Conditioning Evaporator Thermal Expansion Valve Seal - Large [2x] Air Conditioning Evaporator Thermal Expansion Valve Seal - Small [2x] Removal Procedure

  1. Heater and Air Conditioning Evaporator and Blower Module » Remove — Heater and Air Conditioning Evaporator and Blower Module Removal and Installation

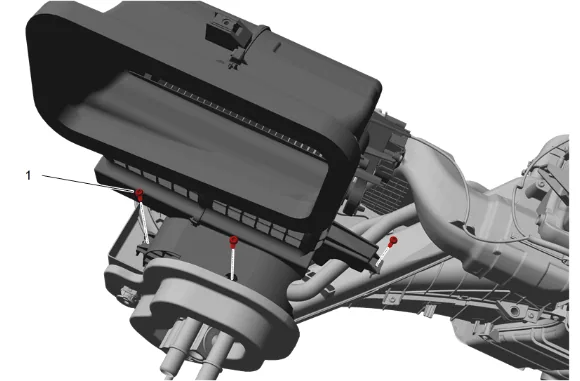

Heater Replacement — figure 1
Heater Replacement — figure 1
  1. Air Inlet Housing Bolt (1) » Remove [3x]

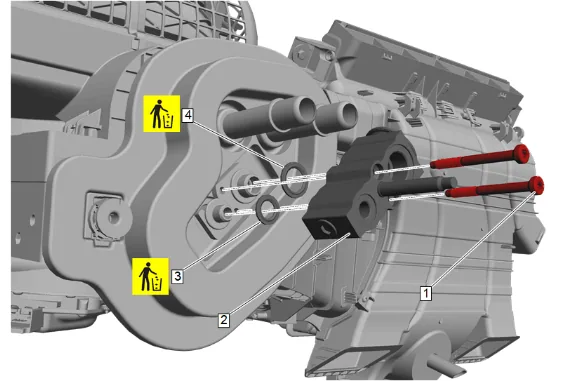

Heater Replacement — figure 2
Heater Replacement — figure 2
  1. Air Conditioning Evaporator Thermal Expansion Valve Bolt (1) » Remove [2x]
  2. Air Conditioning Evaporator Thermal Expansion Valve (2) » Remove
  3. Air Conditioning Evaporator Seal - Small (3) » Remove and DISCARD
  4. Air Conditioning Evaporator Seal - Large (4) » Remove and DISCARD

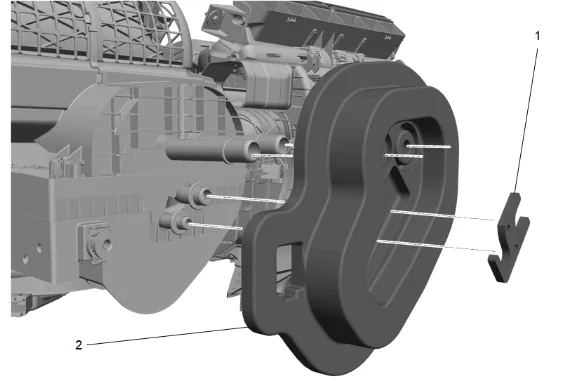

Heater Replacement — figure 3
Heater Replacement — figure 3
  1. Air Conditioning Evaporator Tube Bracket (1) » Remove
  2. Heater And Air Conditioning Evaporator Tube Seal (2) » Remove

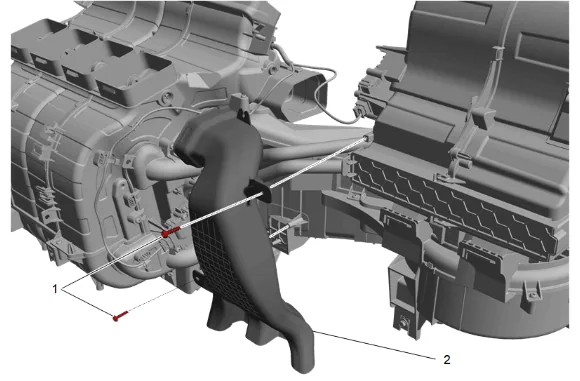

Heater Replacement — figure 4
Heater Replacement — figure 4
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [2x]
  2. Floor Front Air Outlet Duct - Right Side (2) » Remove

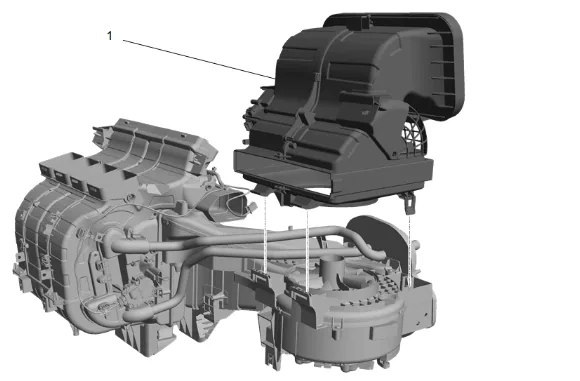

Heater Replacement — figure 5
Heater Replacement — figure 5
  1. Air Inlet Housing (1) » Remove
  2. Disconnect the electrical connector.

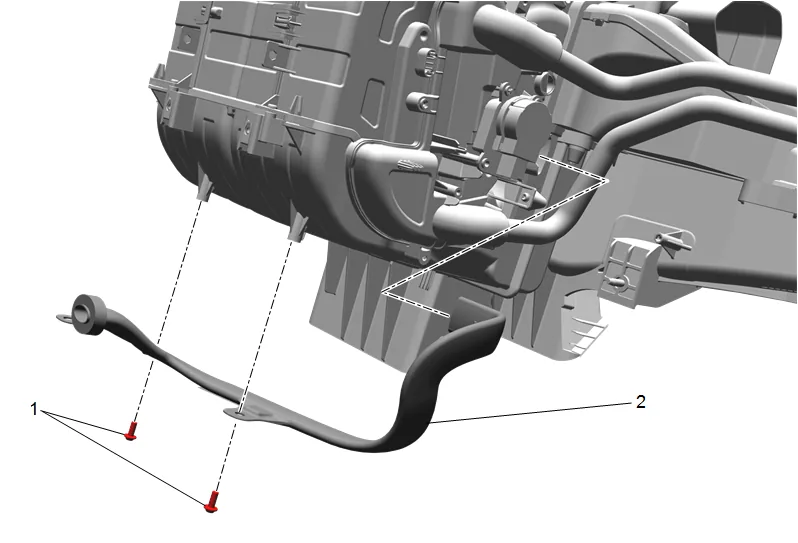

Heater Replacement — figure 6
Heater Replacement — figure 6
  1. { If equipped } Front Floor Console Auxiliary Cooling Duct Bolt (1) » Remove [2x]
  2. { If equipped } Front Floor Console Auxiliary Cooling Duct (2) » Remove

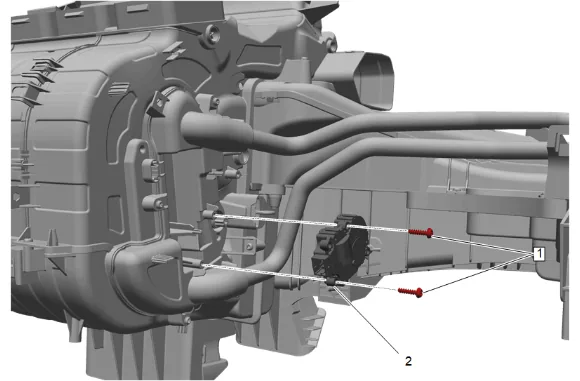

Heater Replacement — figure 7
Heater Replacement — figure 7
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [2x]
  2. { If equipped } Temperature Valve Actuator - Right Side (2) » Remove
  3. Disconnect the electrical connector.

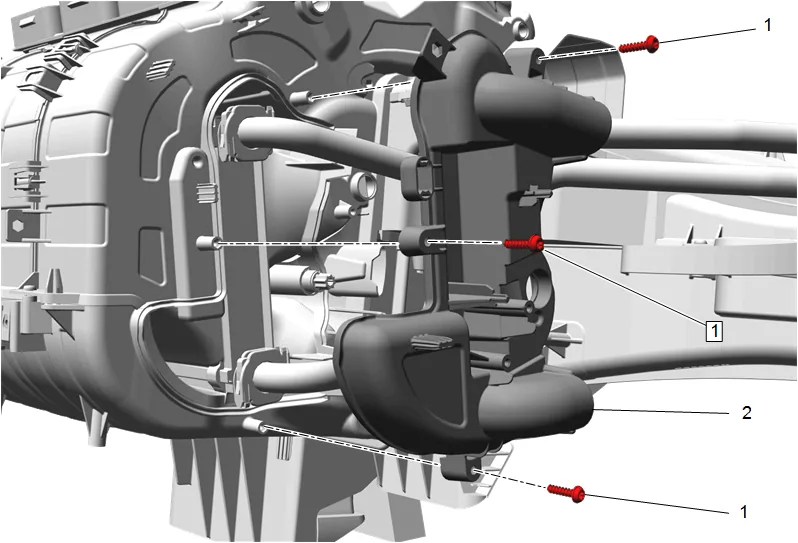

Heater Replacement — figure 8
Heater Replacement — figure 8
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [3x]
  2. Heater Cover (2) » Remove

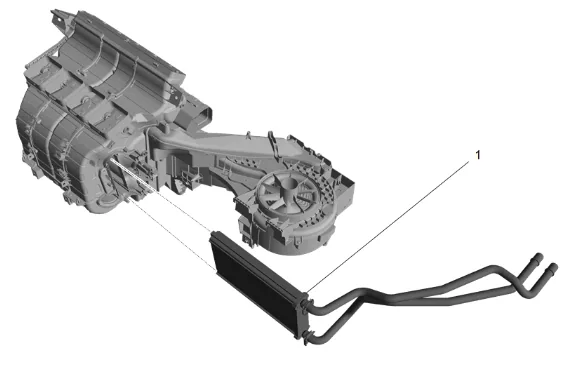

Heater Replacement — figure 9
Heater Replacement — figure 9

  1. Heater (1) » Remove Installation Procedure

  2. Heater (1) » Install

  3. Heater Cover (2) » Install

  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [3x] — Fastener Specifications

  2. { If equipped } Temperature Valve Actuator - Right Side » Install

  3. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  4. Connect the electrical connector.

  5. { If equipped } Front Floor Console Auxiliary Cooling Duct (2) » Install

  6. { If equipped } Front Floor Console Auxiliary Cooling Duct Bolt (1) » Install and tighten [2x] — Fastener Specifications

  7. Air Inlet Housing (1) » Install

  8. Floor Front Air Outlet Duct - Right Side (2) » Install

  9. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  10. Heater And Air Conditioning Evaporator Tube Seal (2) » Install

  11. Air Conditioning Evaporator Tube Bracket (1) » Install

  12. Air Conditioning Evaporator Seal - Large (4) » Install NEW

  13. Air Conditioning Evaporator Seal - Small (3) » Install NEW

  14. Air Conditioning Evaporator Thermal Expansion Valve (2) » Install

  15. Air Conditioning Evaporator Thermal Expansion Valve Bolt (1) » Install and tighten [2x] — Fastener Specifications

  16. Air Inlet Housing Bolt (1) » Install and tighten [3x] — Fastener Specifications

  17. Connect the electrical connector.

  18. Heater and Air Conditioning Evaporator and Blower Module » Install — Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
