Sunroof Sunshade Replacement

Removal Procedure

Warning

Refer to Glass and Sheet Metal Handling Warning.

1. Open the sunroof sunshade.
2. Place the sunroof window in the vent position.

Sunroof Sunshade Replacement — figure 1

3. Reposition the sunroof opening trim finish lace to gain access to the bolts.

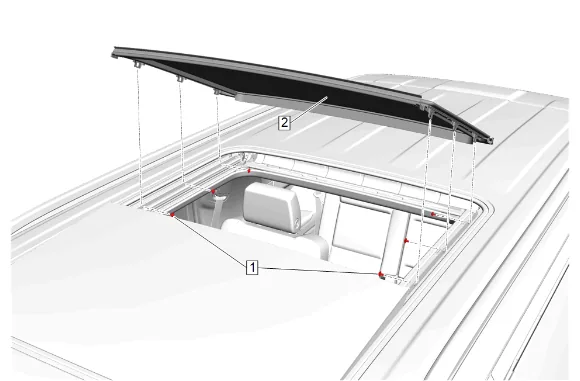

4. Sunroof Window Bolt (1) » Remove [6x]
5. Roof Stationary Window (2) @ Sunroof Window Seal » Disconnect
6. Roof Stationary Window (2) » Remove

Sunroof Sunshade Replacement — figure 2

Note

Observe the mounting and location of sunroof sunshade stiffener to sunroof sunshade side guides to ensure proper reinstallation.

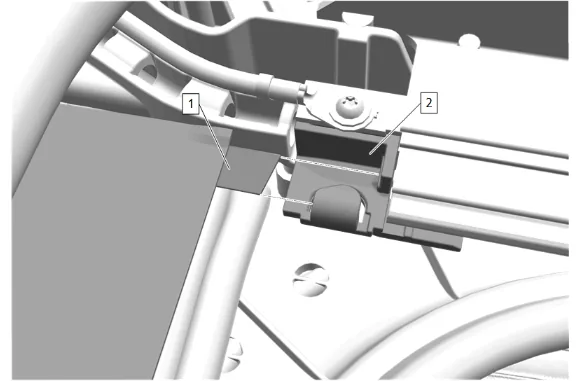

7. Pull rearward to unlock the sunroof sunshade stiffener (1) from the sunroof sunshade side guides (2) at both side of the sunroof sunshade.
8. Using a rolling motion, remove the sunroof sunshade stiffener (1) from the sunroof sunshade side guides (2) at both side of the sunroof sunshade.

Sunroof Sunshade Replacement — figure 3

9. Feed the sunshade fabric (1)  rearward from the fabric guide (2).

Sunroof Sunshade Replacement — figure 4

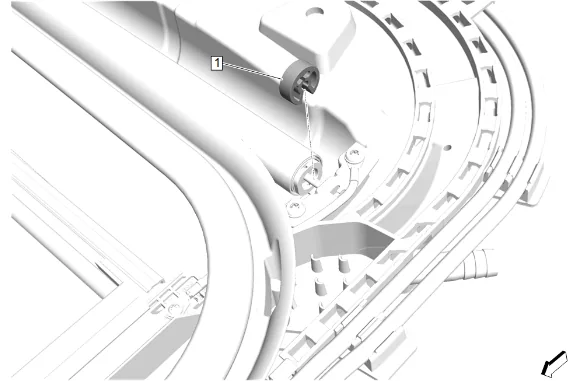

10. Using a suitable plastic trim tool, remove the sunshade spacer (1).

Sunroof Sunshade Replacement — figure 5

Note

Observe the mounting and location of sunroof sunshade to sunroof housing to ensure proper reinstallation. Observe the mounting and location of sunroof sunshade to sunroof housing to ensure proper reinstallation. Ensure sunroof sunshade is in a locked position while removing.

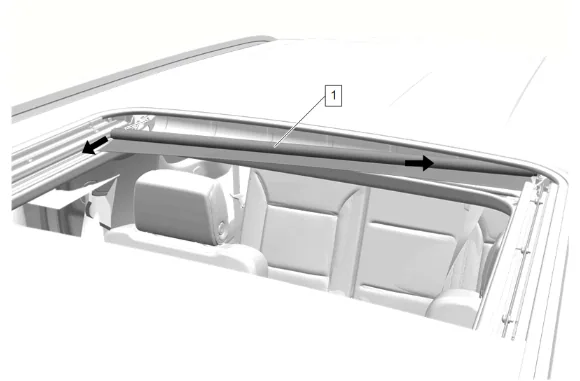

11. Push the sunroof sunshade (1)  toward the drivers side of the vehicle pull the passenger end of the sunroof sunshade forward to release and remove. Installation Procedure

Sunroof Sunshade Replacement — figure 6

Note

A new sunroof sunshade comes with a pre-loaded locking pin to hold the sunshade fabric steady. If the sunroof sunshade becomes unwound a new sunshade is required. DO NOT attempt to rewind sunshade. Ensure sunroof sunshade fabric is properly rolled before installing.

1. Remove the locking pin from the sunroof sunshade.

2. Align the driver side end of the sunroof sunshade (1) with the slot on the sunroof frame and insert the end of the shaft into the slot.

3. Push the sunroof sunshade (1) toward the driver side of the vehicle, maintain pressure while swinging the sunroof sunshade into position aligning the pin with the pivot hole and install the sunroof sunshade.

4. Install the sunshade spacer (1).

Note

If the sunroof sunshade fabric is not fed correctly into the sunshade fabric guide the fabric will droop and not be firm.

5. Feed the sunshade fabric (1)  forward into the fabric guide (2).

Sunroof Sunshade Replacement — figure 7

6. Using a rolling motion, install the sunroof sunshade stiffener (1) from the sunroof sunshade side guides (2) at both side of the sunroof sunshade.

7. Push forward to lock the sunroof sunshade stiffener (1) into the sunroof sunshade side guides (2) at both side of the sunroof sunshade.

8. Roof Stationary Window (2) » Install

9. Roof Stationary Window (2) @ Sunroof Window Seal » Connect

10. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 10.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 10.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 10.3. Remove loose debris from internal and external threads using compressed air. 10.4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

11. Sunroof Window Bolt (1) » Install and hand tighten [6x]

12. Ensure the proper sunroof window height and opening fit. Sunroof Window Height and Opening Fit Adjustment

13. Perform the necessary initialization procedure. Sunroof/Sunshade Motor Initialization

14. Install the sunroof opening trim finish lace.

15. Close the sunroof window.
