Low Frequency Console Number 2 Antenna Replacement (DCH)

Low Frequency Console Number 2 Antenna Replacement (DCH) Removal Procedure

Low Frequency Console Number 2 Antenna Replacement (DCH) — figure 1

1. Front Floor Console Rear Cup Holder Liner (1) » Remove
2. Front Floor Console Cup Holder Bolt (2) » Remove
3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Rear Cup Holder (3) » Remove

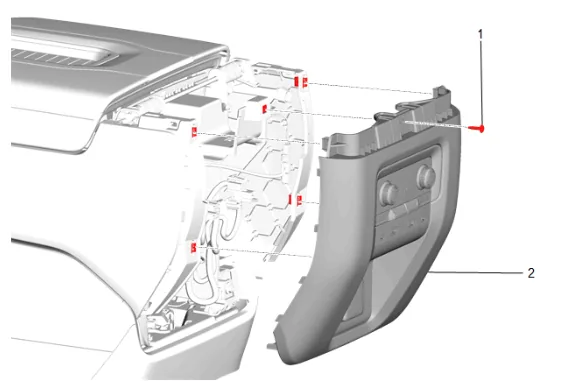

Low Frequency Console Number 2 Antenna Replacement (DCH) — figure 2

5. Front Floor Console Rear Cover Bolt (1) » Remove
6. Using a flat-bladed plastic trim tool, release the retaining clips.
7. Front Floor Console Rear Trim Panel (2) » Remove
8. Disconnect the electrical connectors.

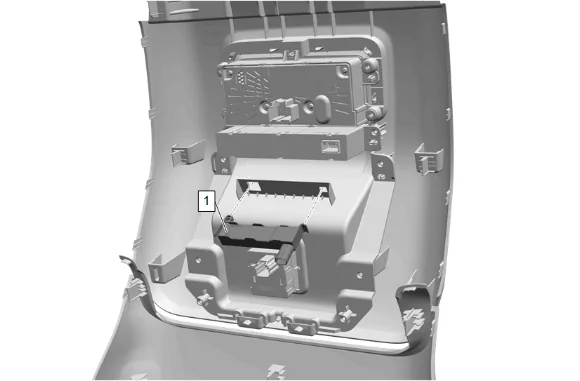

Low Frequency Console Number 2 Antenna Replacement (DCH) — figure 3

9. Disengage the retaining tab that secures the antenna to the panel.

10. Low Frequency Console Number 2 Antenna (1) » Remove Installation Procedure

11. Low Frequency Console Number 2 Antenna (1) » Install

12. Connect the electrical connectors.

13. Front Floor Console Rear Trim Panel (2) » Install

Caution

Refer to Fastener Caution.

4. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

5. Front Floor Console Rear Cup Holder (3) » Install

6. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

7. Front Floor Console Rear Cup Holder Liner (1) » Install
