Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement - Front (1)

Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement - Front Special Tools J-8092 Universal Driver J-2619-01 Slide Hammer J-44737 Shift Rail Bearing Remover Equivalent regional tools: Special Tools Removal Procedure

Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement - Front (1) — figure 1

1. Using the J-44737 Shift Rail Bearing Remover (1) and J-2619-01 Slide Hammer (2) remove the transfer case four wheel drive actuator lever shaft bearing (4). Installation Procedure

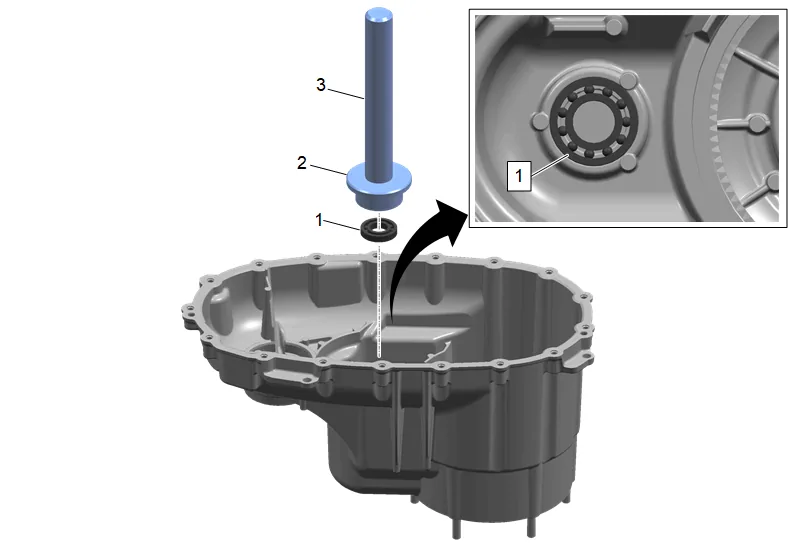

Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement - Front (1) — figure 2

Note

Ensure the printing on the bearing is facing upward.

1. Press the transfer case four wheel drive actuator lever bearing (1) with a suitable adapter and the J-8092 Universal Driver (3) until the transfer case four wheel drive actuator lever bearing  (1) bottoms on the front case half.
