Tahoe / Yukon Service Manual

Front Seat Heater Vent Control Module Replacement

Removal Procedure

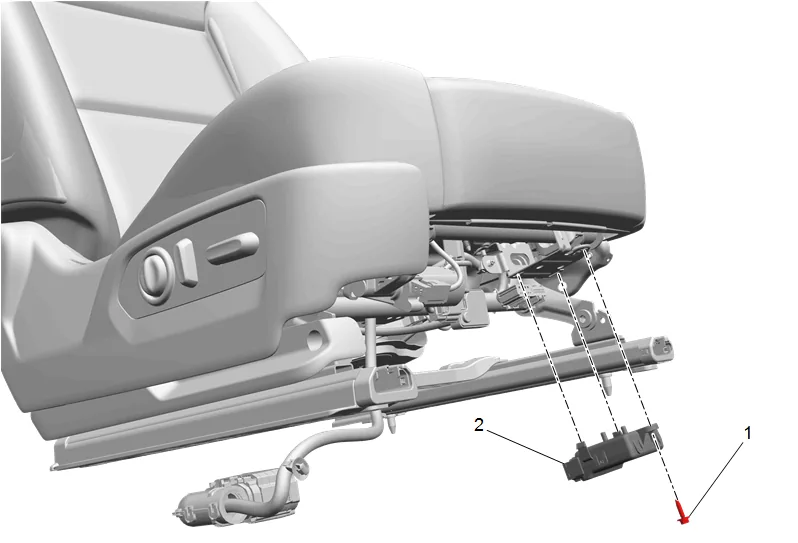

Front Seat Heater Vent Control Module Replacement — figure 1
Front Seat Heater Vent Control Module Replacement — figure 1

  1. Reposition the seat as necessary.

  2. Disconnect the electrical connectors.

  3. Front Seat Heater Control Module Bolt (1) » Remove

  4. Release the retaining tabs.

  5. Front Seat Heater Vent Control Module (2) » Remove Installation Procedure

  6. Front Seat Heater Vent Control Module (2) » Install

  1. Front Seat Heater Control Module Bolt (1) » Install and tighten — Fastener Specifications
  2. Connect the electrical connectors.
  3. Return the seat to its original position.
