Power Steering Wiring Harness Extension Harness Replacement (With RC1)

Power Steering Wiring Harness Extension Harness Replacement (With RC1)

Caution

Electrostatic discharge (ESD) can damage many solid-state electrical components. ESD susceptible components may or may not be labeled with the ESD symbol. Handle all electrical components carefully. Use the following precautions in order to avoid ESD damage: Touch a metal ground point in order to remove your body’s static charge before servicing any electronic component; especially after sliding across the vehicle seat. Do not touch exposed terminals. Terminals may connect to circuits susceptible the ESD damage. Do not allow tools to contact exposed terminals when servicing connectors. Do not remove components from their protective packaging until required to do so. Avoid the following actions unless required by the diagnostic procedure: – Jumpering or grounding of the components or connectors. – Connecting test equipment probes to components or connectors. Connect the ground lead first when using test probes. Ground the protective packaging of any component before opening. Do not rest solid-state components on metal workbenches, or on top of TVs, radios, or other electrical devices.

Caution

During removal and installation, all EPS components including mechanical and/or electrical is extremely susceptible to damage. Dropping or prying on any EPS component may cause internal damage. If damage occurs or a part is dropped, the EPS component must be replaced.

Caution

Care must be taken during removal and installation of the Electronic Power Steering (EPS) components to not hit or break the EPS motor/controller module or module harness connectors. If the EPS motor/ controller module or module connectors are damaged, the complete component must be replaced. Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
2. Raise and support the vehicle. Lifting and Jacking the Vehicle

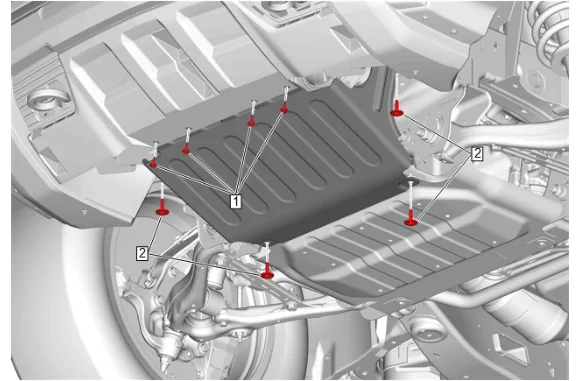

Power Steering Wiring Harness Extension Harness Replacement (With RC1) — figure 1

3. Front Bumper Fascia Skid Plate Bolt (1) » Remove [4x]
4. Underbody Skid Shield Bolt (2) » Remove [4x]

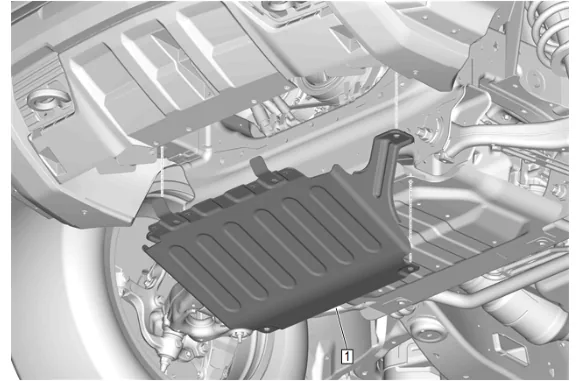

Power Steering Wiring Harness Extension Harness Replacement (With RC1) — figure 2

5. Underbody Splash Shield (1) » Remove

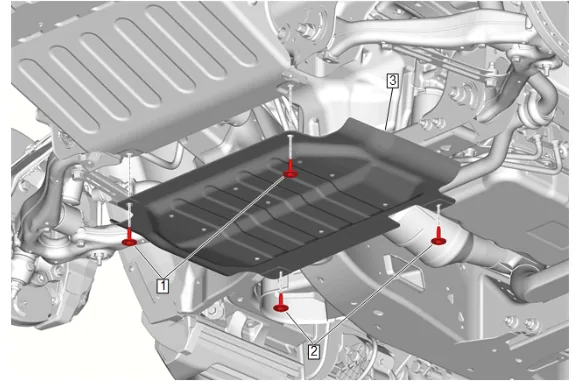

Power Steering Wiring Harness Extension Harness Replacement (With RC1) — figure 3

Note

The proper position of the underbody skid shield is between the underbody splash shield and the front frame.

6. Underbody Splash Shield Bolt (2) » Remove [2x]
7. Underbody Skid Shield (3) » Remove

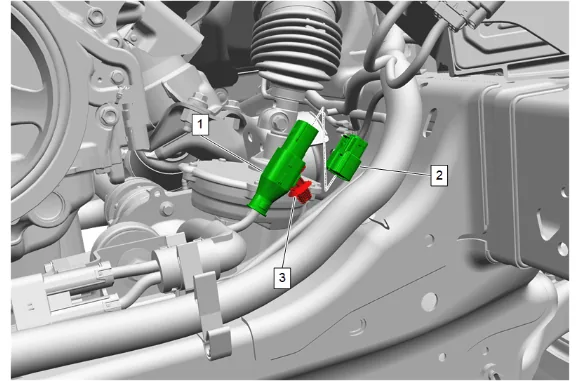

Power Steering Wiring Harness Extension Harness Replacement (With RC1) — figure 4

Note

Some components not shown for graphic clarity.

8. Remove the power steering assist motor wire clip (3).
9. Disconnect the power steering harness extension harness (1) from the main chassis harness (2).

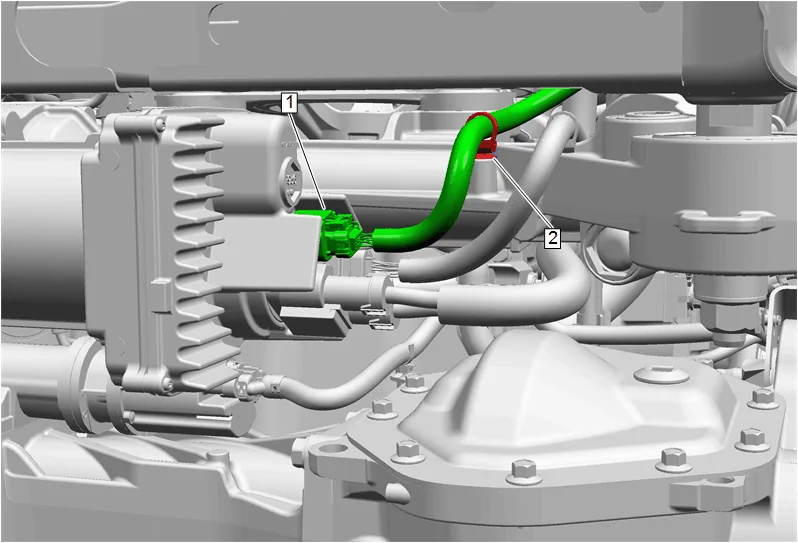

Power Steering Wiring Harness Extension Harness Replacement (With RC1) — figure 5

10. Disconnect the power steering harness extension harness (1) from the power steering assist motor.

11. Remove the power steering harness extension harness clip (2) from the electric belt drive rack and pinion steering gear housing.

12. Remove the power steering harness extension harness. Installation Procedure

13. Install the power steering harness extension harness.

14. Install the power steering harness extension harness clip (2) to the electric belt drive rack and pinion steering gear housing.

15. Connect the power steering harness extension harness (1) to the power steering assist motor.

16. Connect the power steering harness extension harness (1) to the main chassis harness (2).

17. Install the power steering assist motor wire clip (3).

Note

The proper position of the underbody skid shield is between the underbody splash shield and the front frame.

6. Underbody Skid Shield (3) » Install

Caution

Refer to Fastener Caution.

7. Underbody Splash Shield Bolt (2) » Install and tighten [2x] — Fastener Specifications

8. Underbody Splash Shield (1) » Install

9. Underbody Skid Shield Bolt (2) » Install and tighten [4x] — Fastener Specifications

10. Front Bumper Fascia Skid Plate Bolt (1) » Install and tighten [4x] — Fastener Specifications

11. Remove the supports and lower the vehicle.

12. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

13. Clear DTCs.
