Front Drive Axle Disassembled Views

Front Drive Axle Disassembled View (SU4)

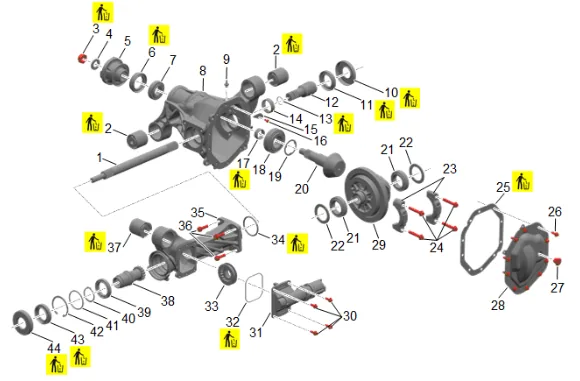

Front Drive Axle Disassembled Views — figure 1

(1) Front Wheel Drive Intermediate Shaft (2) Front Differential Carrier Bushing [2x] (3) Front Differential Drive Pinion Gear Nut (4) Front Differential Drive Pinion Gear Washer (5) Front Differential Drive Pinion Gear Yoke (6) Front Differential Drive Pinion Gear Seal (7) Front Differential Drive Pinion Gear Bearing - Outer (8) Front Differential Carrier (9) Front Differential Carrier Vent Hose Connector (10) Front Wheel Drive Shaft Slinger (11) Front Drive Axle Inner Shaft Seal (12) Front Wheel Drive Shaft (13) Front Drive Axle Inner Shaft Retaining Ring (14) Front Drive Axle Inner Shaft Bearing (15) Front Differential Drive Pinion Gear Lube Dam (16) Front Differential Carrier Shield Bolt (17) Front Differential Drive Pinion Gear Bearing Spacer (18) Front Differential Drive Pinion Gear Bearing - Inner (19) Front Differential Drive Pinion Gear Bearing Shim (20) Front Differential Drive Pinion Gear (21) Front Differential Bearing [2x] (22) Front Differential Carrier Bearing Shim [2x] (23) Front Axle Hub Cap (24) Front Differential Bearing Cap Bolt [4x] (25) Front Differential Carrier Cover Gasket (26) Front Axle Housing Cover Bolt [10x] (27) Front Differential Carrier Oil Filler Plug (28) Front Differential Carrier Cover (29) Front Differential (30) Front Drive Axle Actuator Bolt [4x] (31) Front Drive Axle Actuator (32) Front Wheel Drive Intermediate Shaft Housing Seal (33) Front Drive Axle Clutch Sleeve (34) Front Wheel Drive Intermediate Shaft Seal (35) Front Drive Axle Inner Shaft Housing (36) Front Drive Axle Inner Shaft Housing Bolt [4x] (37) Front Differential Carrier Bushing (38) Front Wheel Drive Shaft (39) Front Drive Axle Clutch Shaft Bearing (40) Front Drive Axle Inner Shaft Bearing Retaining Ring (41) Front Drive Axle Clutch Shaft Thrust Washer (42) Front Drive Axle Inner Shaft Retaining Ring (43) Front Wheel Drive Shaft Seal (44) Front Wheel Drive Shaft Slinger
